Sony CFD-S22 - MECHANISM AND CABINET DISASSEMBLY

– 11 –

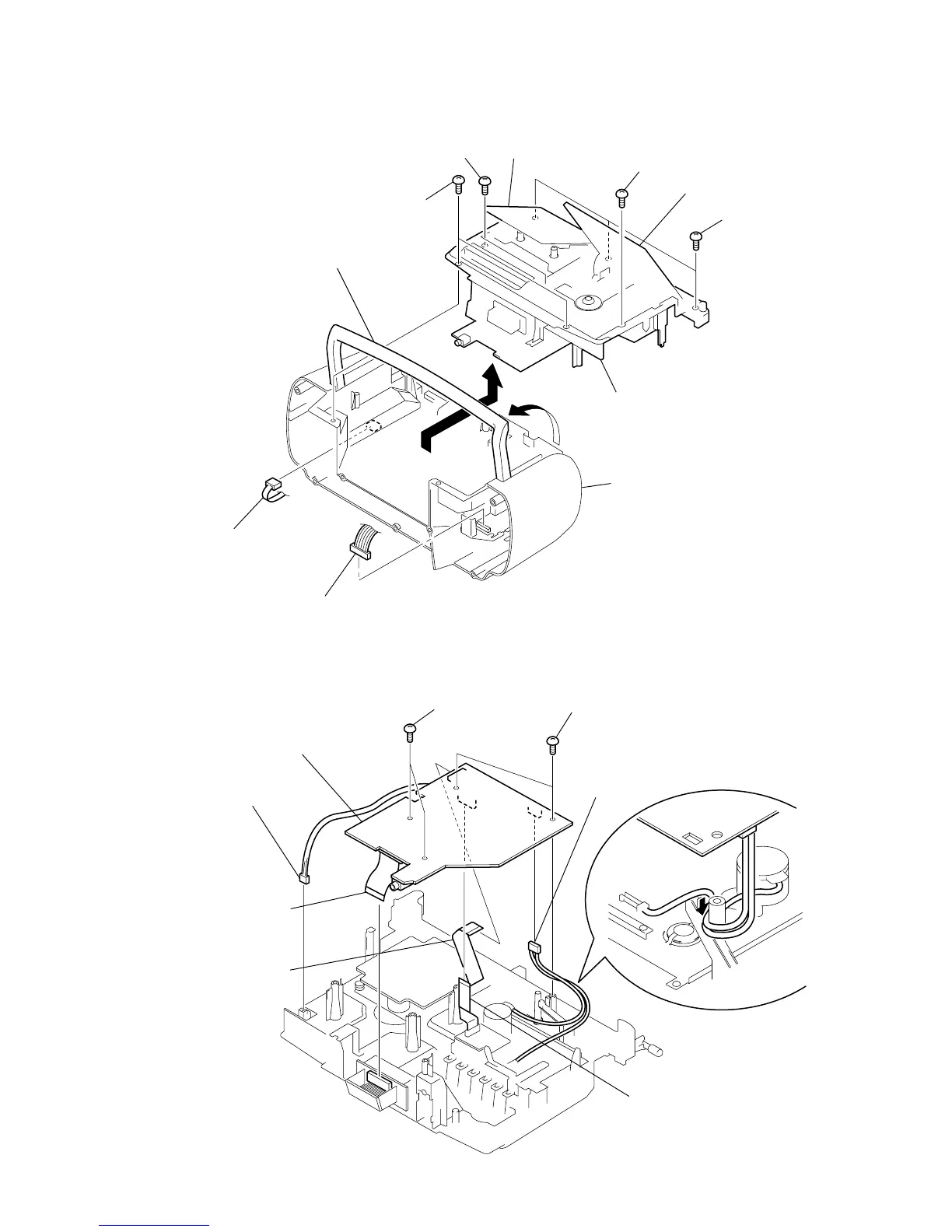

3-7. MAIN BOARD
3-6. CABINET (UPPER) ASSY
2 CNP902
1 CNP1
5 BVTP 3x10
6 BVTP 3x12
7 BVTP 3x12
8 BVTP 3x12
3 holder assy, cassette
9 handle
0 cabinet (upper) assy
4 lid (CD)
cabinet (rear)
1 BVTP 3x10
2 BVTP 3x10
3 connector
(S501)
8 MAIN board
4 CNP651
5 CNP322
6 CNP505
7 CNP502
