Sony CFD-S22 - PRINTED WIRING BOARD - CONTROL SECTION

1
A
B
C
D
E
F
G
H
2345678910
11 12 13 14
04
OPR/BATT
CFD-S22/S32
– 39 – – 40 –

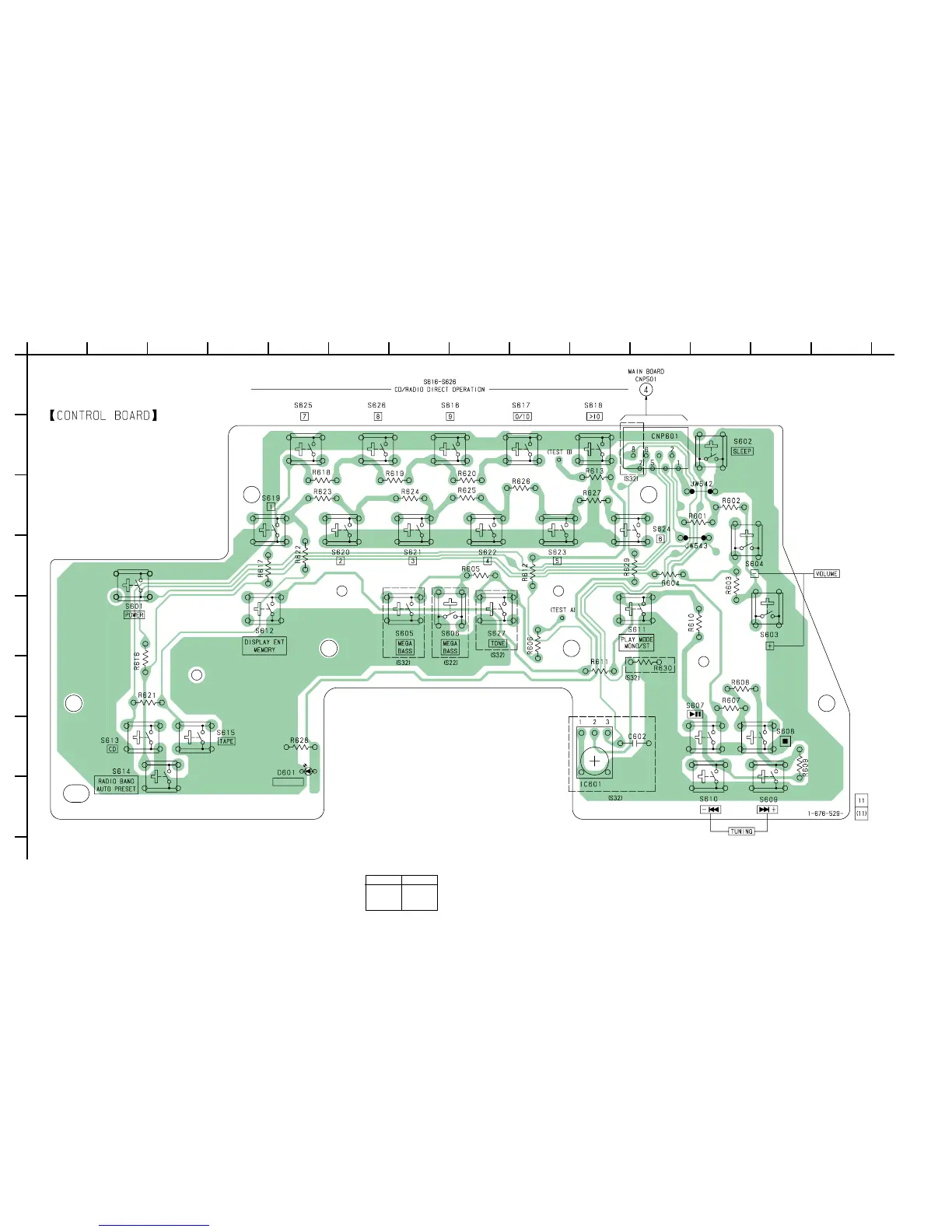

6-13. PRINTED WIRING BOARD — CONTROL SECTION — • Refer to page 18 for Circuit Boards Location.
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• b : Pattern from the side which enables seeing.
D601 G-5
(IC601) G-10
• Semiconductor
Location
Ref. No. Location
( ) : CFD-S32 only
(Page 33)
