Sony CFD-S22 - PRINTED WIRING BOARD - TUNER SECTION

– 23 – – 24 –

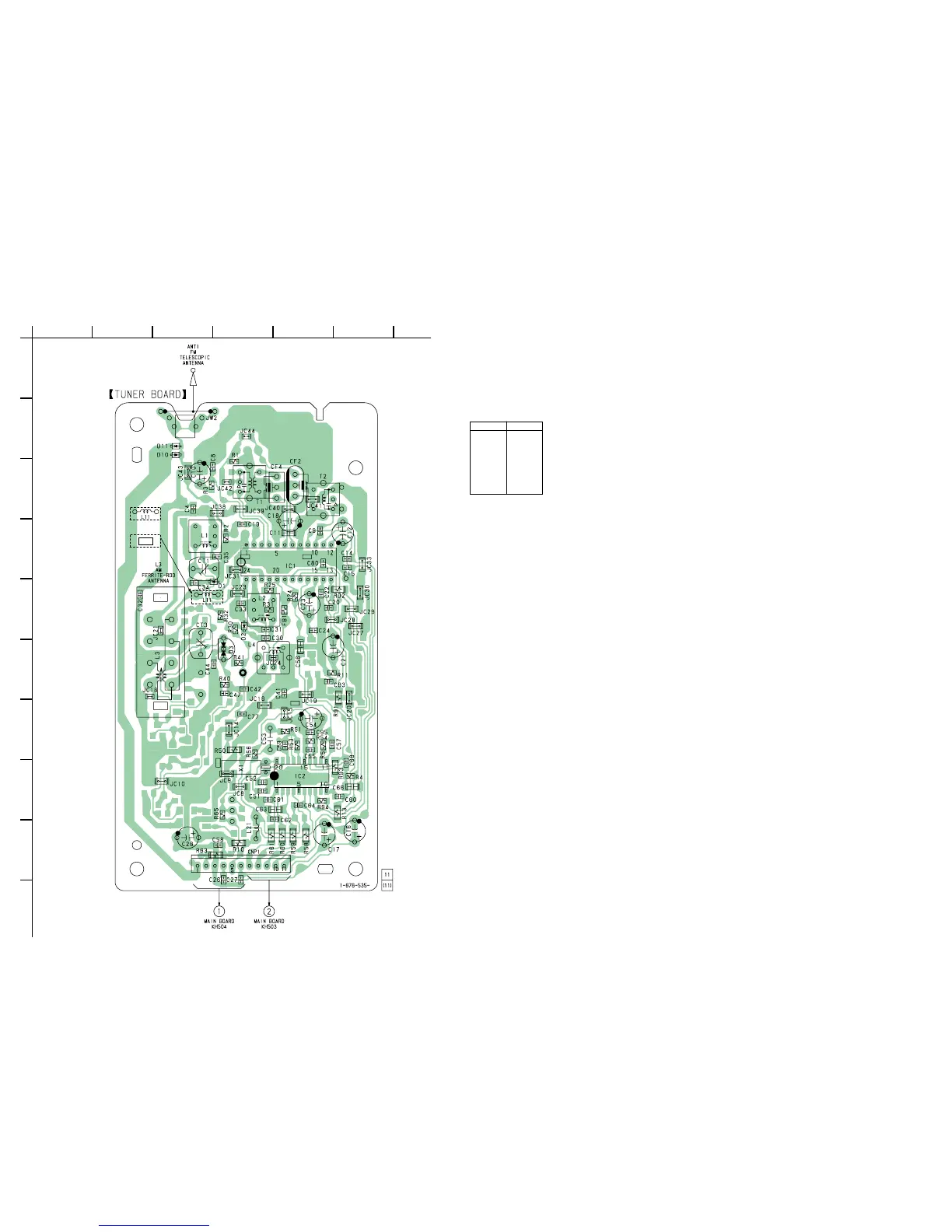

6-5. PRINTED WIRING BOARD — TUNER SECTION — • Refer to page 18 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
J
234567
04
TP(VT)
US, CND, E92,
MX MODEL
E4, SP, AR, AUS,
JE MODEL
JC25
D1 E-4
D2 E-4
D3 F-4
D10 B-3
D11 B-3
IC1 D-5
IC2 H-5
• Semiconductor
Location
Ref. No. Location
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
•
f
: internal component.
• b : Pattern from the side which enables seeing.
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
E4 : AC 110-120V/220-240V area in E model
E92 : AC 120V area in E model
MX : Mexican model
SP : Singapore model
JE : Tourist model
CFD-S22/S32
(Page 34) (Page 33)
