– 25 – – 26 –

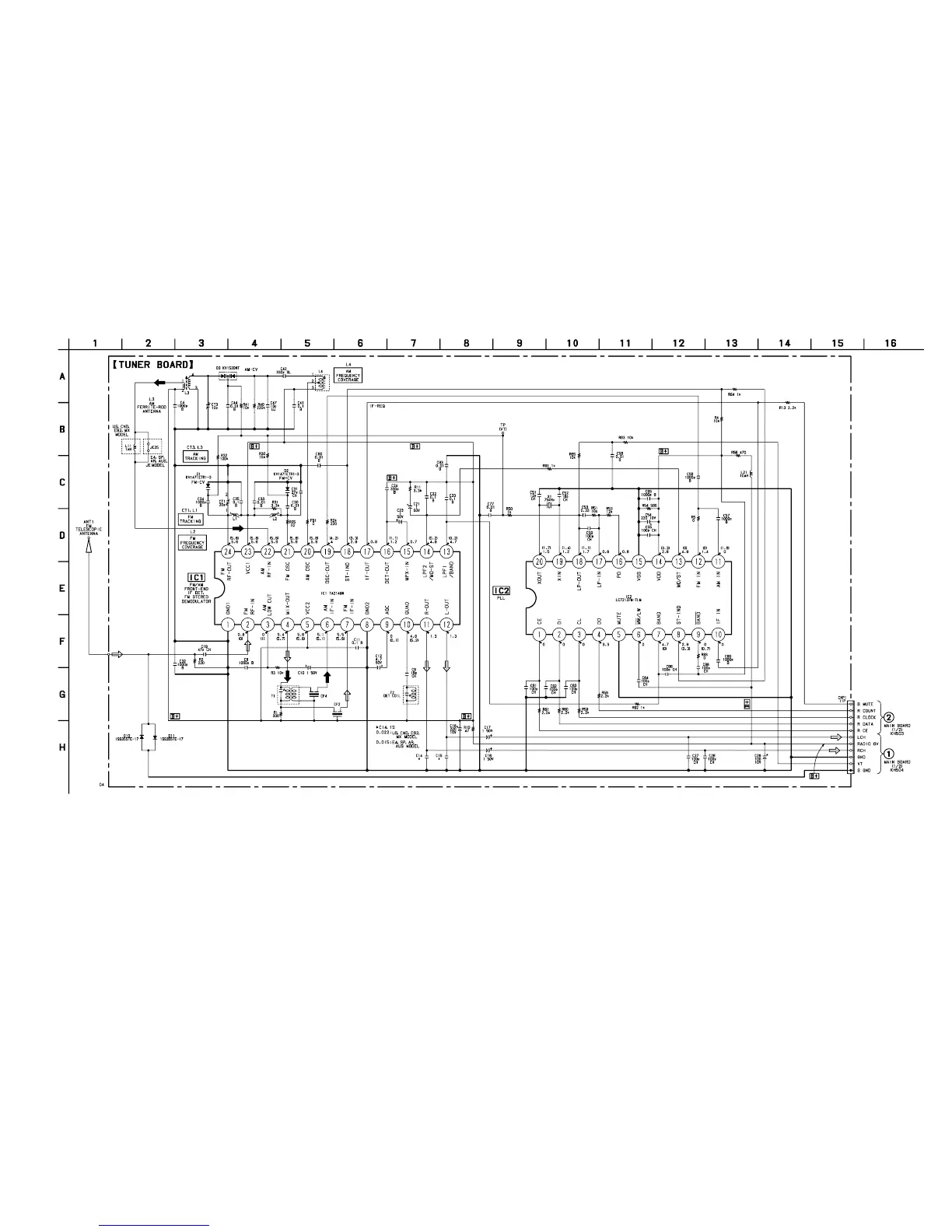

6-6. SCHEMATIC DIAGRAM — TUNER SECTION — • Refer to page 47 for IC Block Diagrams.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
f
: internal component.
• U : B+ Line.
• H : adjustment for repair.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : AM
CFD-S22/S32
(Page 36)
(Page 36)
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F : FM
f : AM
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
E4 : AC 110-120V/220-240V area in E model
E92 : AC 120V area in E model
MX : Mexican model
SP : Singapore model
JE : Tourist model
To Next Page
