Sony CFD-S22 - WIRE HARNESS ROUTING AND CONNECTION; BOARD REPLACEMENT PROCEDURES

– 9 –

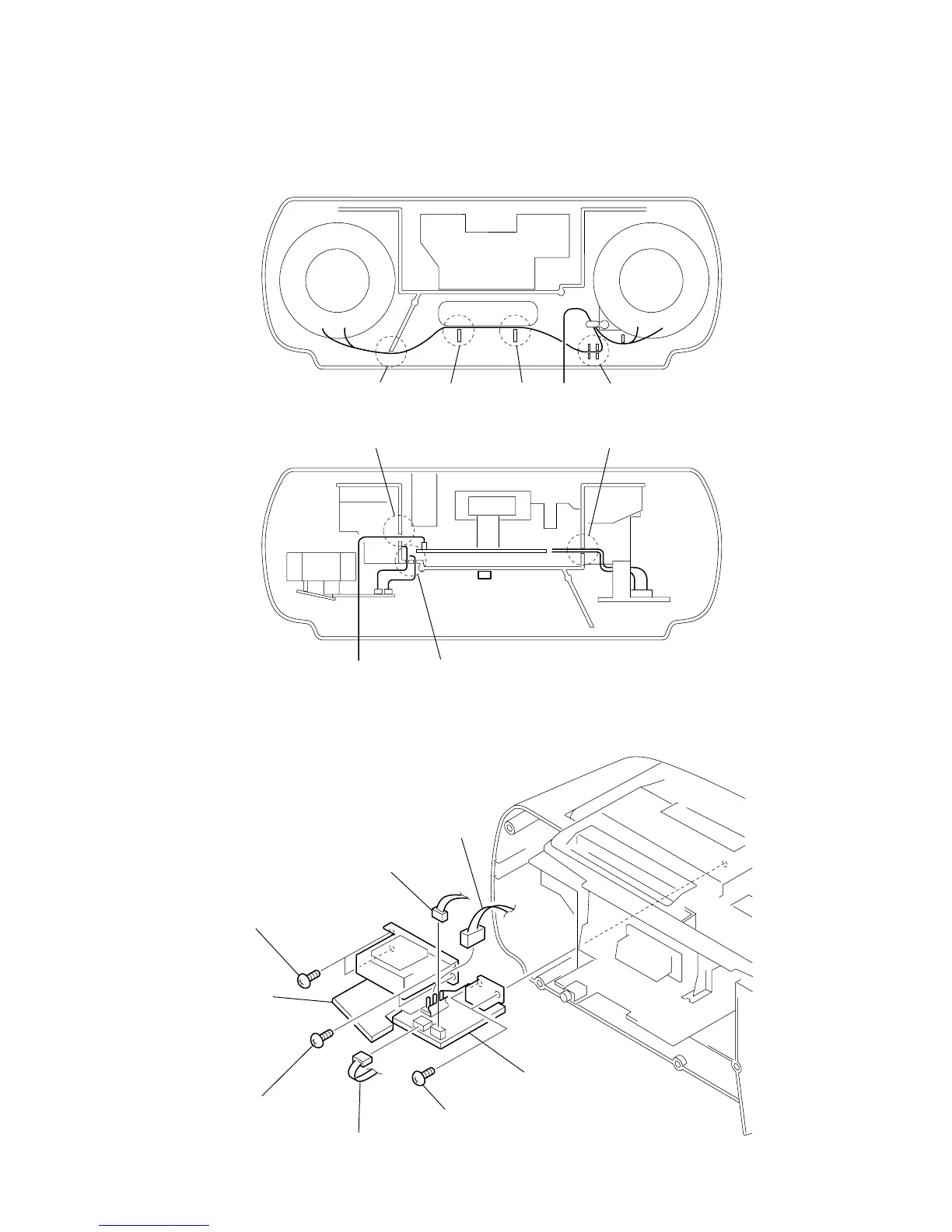

3-2. WIRES
3-3. SECONDARY BOARD, POWER BOARD
Put flat cable and wires between the cabinets and push them in the
grooves located at A to G in the figure to prevent disconnection
before assembling the set.
1 BVTP 3x10
2 BVTP 3x10
4 CNP902
5 CNP901
6 CN905
7 POWER board
3 BVTP 3x10
SECONDARY board
CABINET (REAR)
CABINET (FRONT
)
AB
E
F
from SP
G
CD
