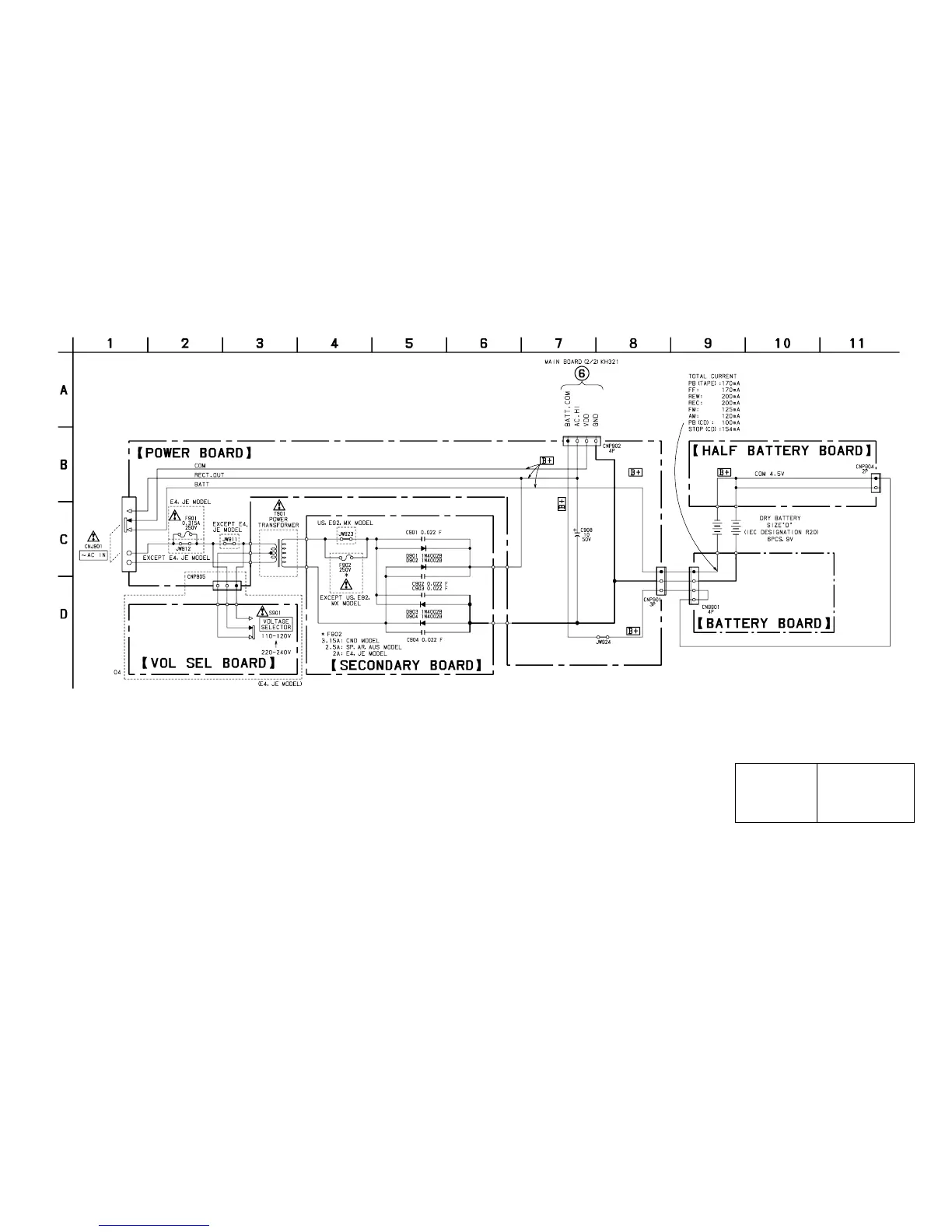

6-16. SCHEMATIC DIAGRAM — POWER SUPPLY SECTION —
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• C : panel designation.
• U : B+ Line.
• Total current is measured with no cassette installed.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
E4 : AC 110-120V/220-240V area in E model
E92 : AC 120V area in E model
MX : Mexican model
SP : Singapore model
JE : Tourist model
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
(Page 38)
