Getting Started

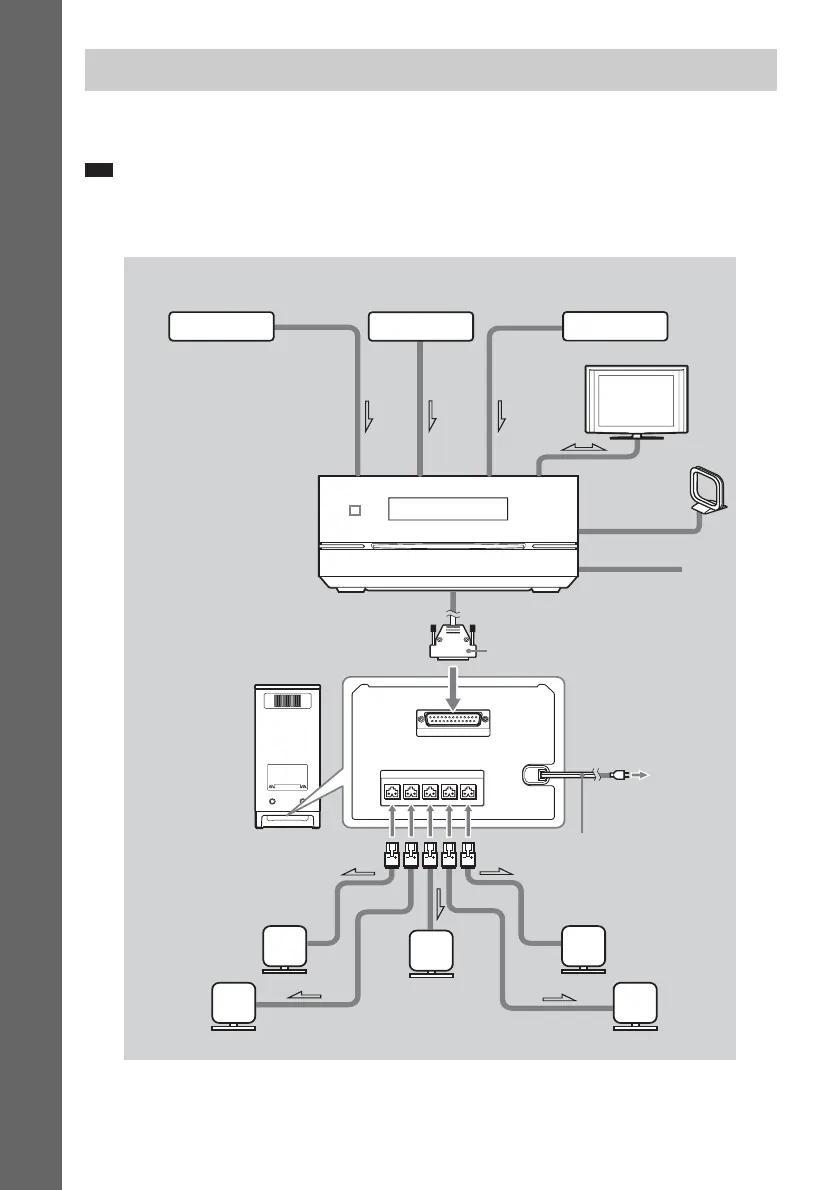

See the connection diagram below, and read the additional information from 1 to 6 on the following
pages.
Note
• Be sure to make connection securely to avoid hum and noise.
• When you connect another component with a volume control, turn up the volume of the other components to a level
where sound is not distorted.
Step 2: Connecting the System
CENTERSUR LSUR RFRONT LFRONT R
SYSTEM CONTROL
ONLY FOR HCD-IS50
SPEAKER
ONLY FOR SS-IS15
5 AM loop
antenna (aerial)
Rear of the
subwoofer
6 AC power cord (mains lead)
5 FM wire antenna
(aerial)
2 Front speaker (L)
2 Center
speaker
2 Surround
speaker (R)
2 Surround speaker (L)
2 Front
speaker (R)
1 Plug
Bottom of the
subwoofer
Front of the control unit
3 TV
4 VCR, digital
satellite receiver,
or PlayStation,
etc.
4 DIGITAL MEDIA
PORT adapter
4 Portable audio source
To Next Page
