Sony DCR-TRV7 - MD Frame Area Section

6-4

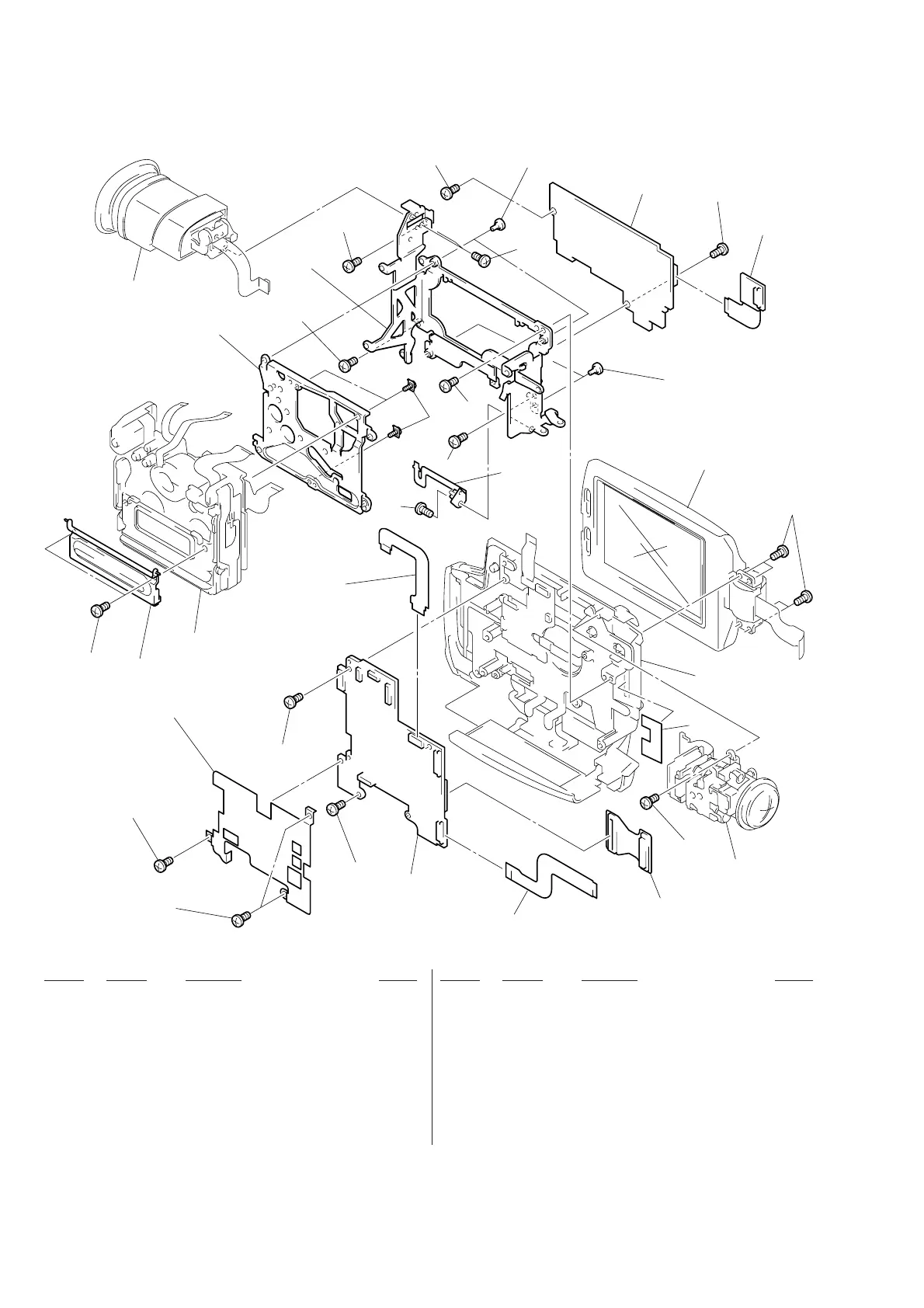

6-1-4. MD FRAME AREA SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
159 A-7066-966-A RJ-74 BOARD, COMPLETE
160 1-665-526-11 FP-538 FLEXIBLE BOARD
161 3-352-483-01 SCREW (M2), STEP
162 3-728-103-11 SCREW (M1.4X1.6)
163 3-948-339-01 SCREW, TAPPING
164 3-968-729-51 SCREW (M2), LOCK ACE, P2
165 3-975-765-01 SHEET, PANEL FLEXIBLE
151 X-3947-265-1 SHEET METAL ASSY, CASSETTE
152 A-7066-990-A CB-58P BOARD, COMPLETE (TRV7E)
152 A-7067-004-A CB-58 BOARD, COMPLETE (TRV7)
153 1-665-520-11 FP-535 FLEXIBLE BOARD
154 1-665-530-11 FP-543 FLEXIBLE BOARD
155 1-665-519-11 FP-534 FLEXIBLE BOARD
156 1-665-525-11 FP-537 FLEXIBLE BOARD
157 X-3945-526-1 SCREW ASSY, STEP
* 158 X-3947-267-1 FRAME ASSY, SUB
151
163
152
156
153
164
163
163
154
163
159
155
163
163
163
163
162
163
EVF section
(See page 6-7.)
Mechanism deck section
(See pages 6-9 to 6-12.)
160
158
163
157
not supplied
161
161
164
164
164
not supplied
LCD section
(See page 6-8.)
Cabinet (R) assembly
(See page 6-5.)
Video lens section
(See page 6-6.)
165
