Sony DCR-TRV7 - Cabinet (R) Assembly

6-5

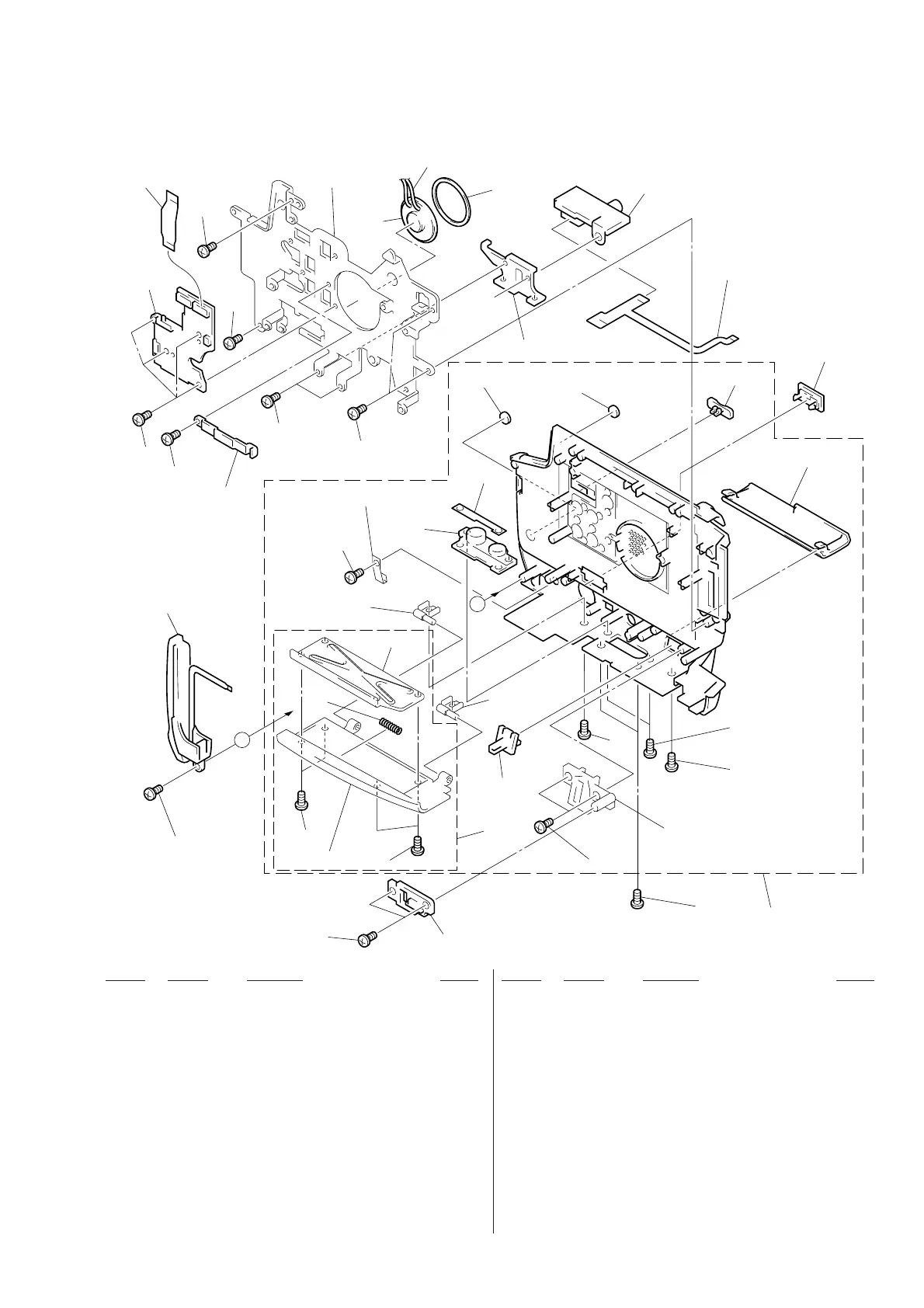

6-1-5. CABINET (R) ASSEMBLY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
213 1-665-522-11 FP-546 FLEXIBLE BOARD
214 3-965-367-01 SPACER, SP
215 A-7073-061-A JK-156 BOARD, COMPLETE
216 1-665-521-11 FP-545 FLEXIBLE BOARD
217 3-713-791-51 SCREW (M1.7X3.5), TAPPING, P2
218 3-968-729-21 SCREW (M2), LOCK ACE, P2
219 3-968-729-01 SCREW (M2), LOCK ACE, P2
220 3-948-339-01 SCREW, TAPPING
221 3-562-309-00 SPRING, COMPRESSION
* 222 1-957-220-11 HARNESS (IS-56)
223 3-968-729-51 SCREW (M2), LOCK ACE, P2
224 X-3947-742-1 COVER (BOTTOM) ASSY
SP901 1-505-425-11 SPEAKER (2.8CM)
201 1-475-123-21 SWITCH BLOCK, CONTROL(CK4810E)
202 A-7073-062-A FC-62 BOARD, COMPLETE
203 X-3947-390-1 CABINET (R) ASSY (TRV7E:AEP,UK)
203 X-3947-395-1 CABINET (R) ASSY (TRV7)
203 X-3947-467-1 CABINET (R) ASSY (TRV7E:E,Tourist)
204 3-975-737-01 KNOB, F SELECTION
205 3-975-739-01 TRIPOD (LARGE)
206 3-975-749-01 INSULATOR, TRIPOD
207 3-959-978-02 CUSHION, PANEL
208 3-975-740-01 KNOB, SS SELECTION
209 3-975-742-01 LID, TERMINAL
210 3-975-753-02 LID (R), CPC
* 211 X-3947-645-1 PLATE ASSY, SP FIXED
212 A-7073-060-A IK-1 BOARD, COMPLETE
A
A
215
213
214
209
SP901
208
211
210
212
207
206
205
not supplied
201
204
216
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
223
223
218
218
219
219
219
219
217
224
221
220
220
220
220
not supplied
220
220
220
207
222
203
202
