Sony DCR-TRV7 - Removal of Cabinet (L) Assembly; Removal of Lens Assembly; Removal of Battery Holder and DD-96 Board; Removal of Upper Panel Assembly

2-2

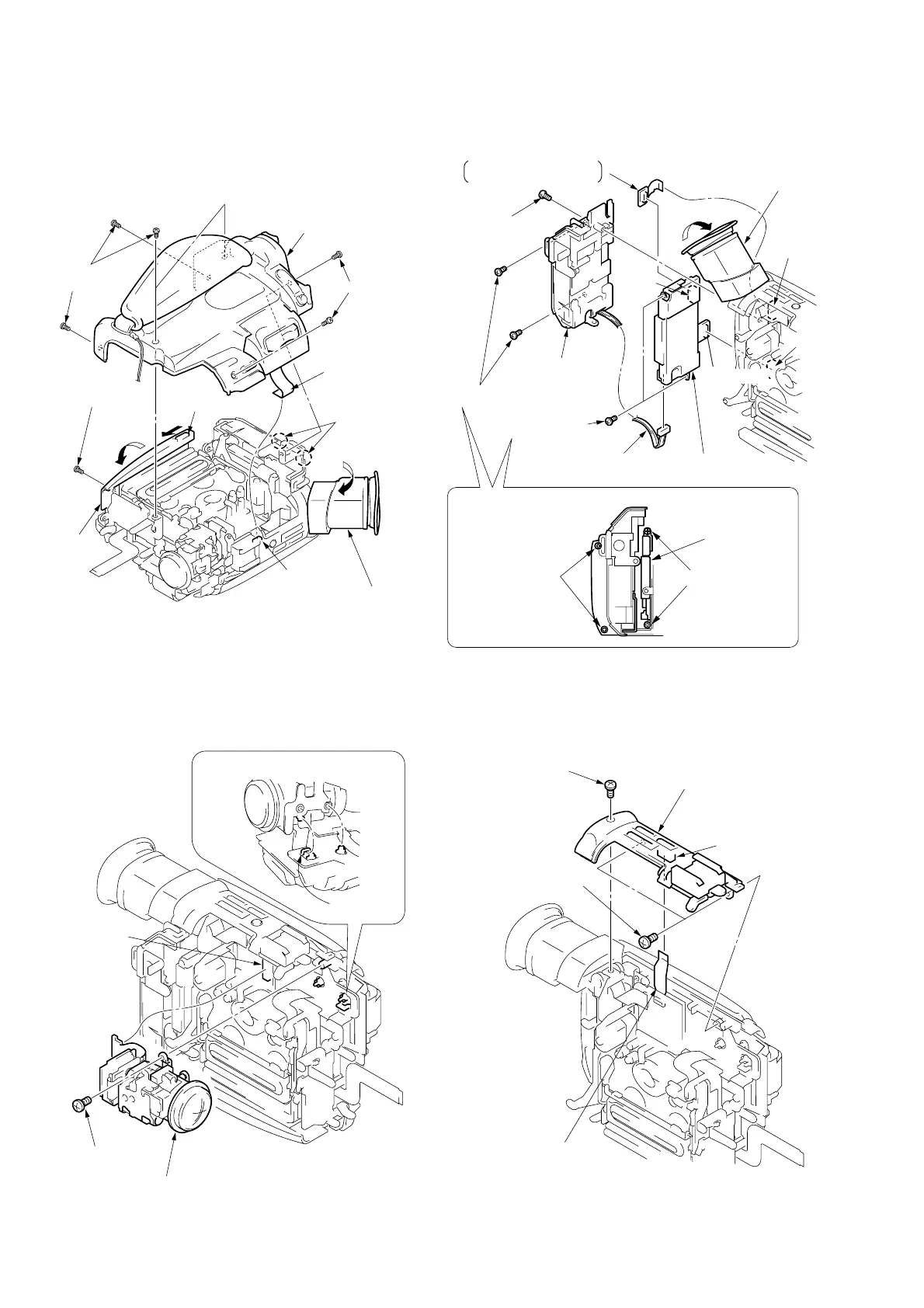

2-4. REMOVAL OF CABINET (L) ASSEMBLY
2-5. REMOVAL OF LENS ASSEMBLY
1 Tapping screw (B2)
2 Video lens (VCL-4010VB)
3 Upper panel assembly
2-6. REMOVAL OF BATTERY HOLDER AND DD-96
BOARD
4 FP-546 flexible board
(CN9862 16P)
1 Two tapping screws (B2)
Claws
4 Two screws
(Lock ace M2)
6
Remove the cabinet (L) assembly.
(Take note of the two claws.)
3 Four screws
(Lock ace M2)
1 Screw
(Lock ace M2)
A
B
2 Lock button
Lid (Lower)
CB-58 board
5 Move the EVF section in
the direction arrow B.
2 Move the EVF section in
the direction of arrow.
CN9925
CN9903
CN3901
8 CN3902
4 Battery holder
assembly
5 Connector (5P)
(DD-96 board CN3900)
9 DD-96 board
3 Screw
(Lock ace M2)
7 FP-544 flexible board
(CN9926 20P)
1 Two tapping
screws (B2)
9 DD-96 board
6 Two screws
(Lock ace M2)
2-7. REMOVAL OF UPPER PANEL ASSEMBLY
Note for installation
Hook
CB-58 board
(CN200 50P)
1 Screw (Lock ace M2)
2 Two tapping
screws (B2)
TS-1 Board
(CN9862)
2 Slide the lock button to open the lid
(Lower) in the direction of arrow A.
1 FP-542 flexible board
CN3901 40P(DD-96 board)
CN9925 39P(CB-58 board)
6 Two screws
(Lock ace M2)
