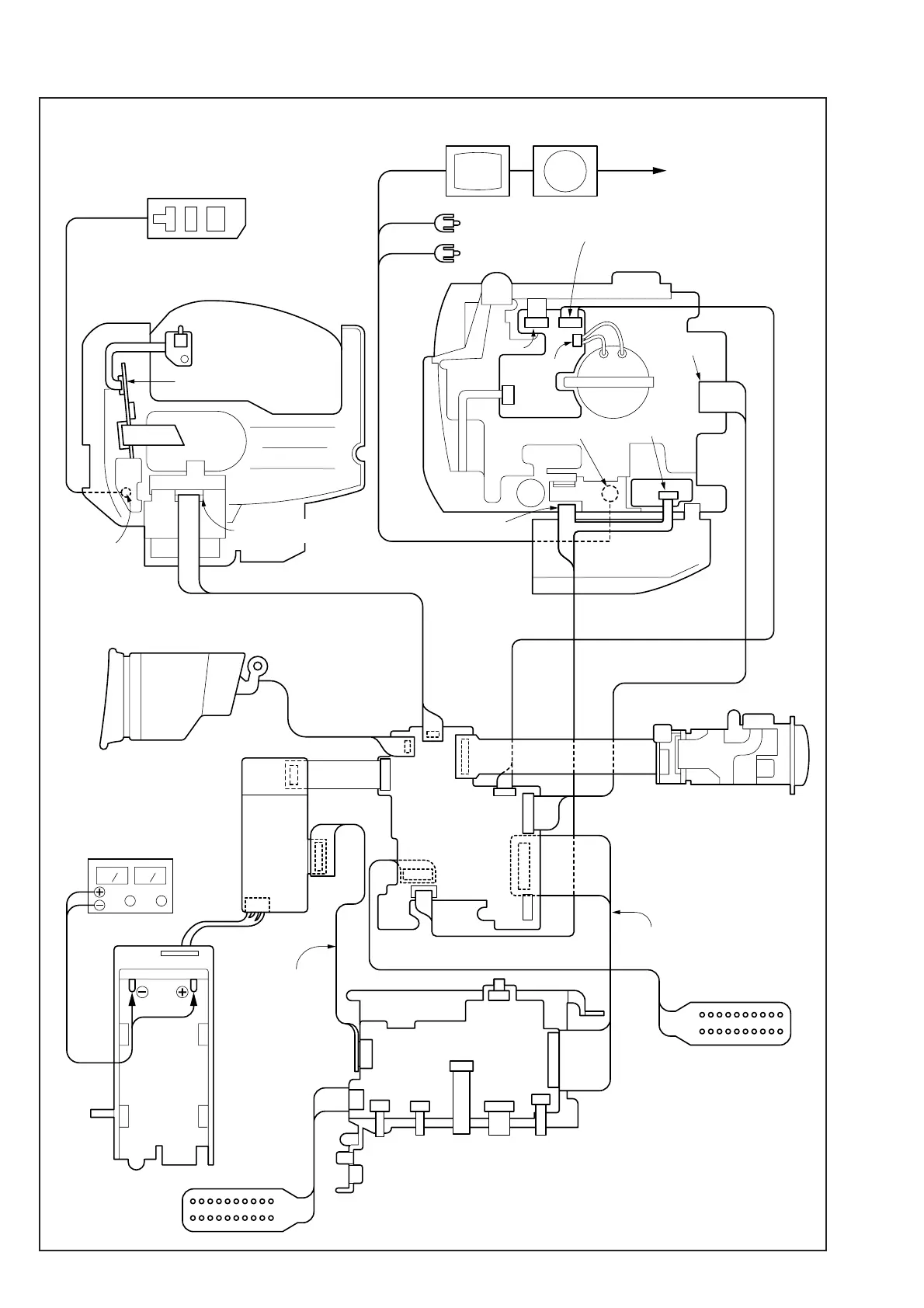

Fig. 5-1-3.
Terminated
at 75
Adjusting remote commander
Cabinet (L)
Vectorscope
Color monitor
VIDEO (Yellow)
AUDIO R (Red)
AUDIO L (White)
CC DOWN
switch
HL-8 board CN8204
LANC
terminal
To HL-8, VK-42 board
View finder
Regulated
power supply
(8.4 ± 0.1Vdc)
Battery terminal
Must be connected when performing
the video section adjustment.
CPC-8 jig
(J-6082-388-A)
DD-96
board
Extension cable
(J-6082-385-A)
CN3901
CN9902
CN9900
Extension cable
(J-6082-387-A)
Extension cable
(J-6082-386-A)
CN9903
CN3105
CN9902
CN3104
CN2708
RJ-74 board
CN3101
CN3102
CN9901
CN3103
CPC-8 jig
(J-6082-388-A)
Must be connected when performing
the view finder and LCD
adjustments.
CN9929
CN9921
CN9921
CB-58 board
CN9923
CN9927
CN200
CN9926
CN9924
CN9925
CN9928
Lens block
To JK-156 board
AUDIO/VIDEO OUT
FC-62 board
CN9801
To PD-85 board
CN3001
CN3004
CN3002
CN3003
Cabinet (R)
