6-1
DCR-TRV8/TRV8E/TRV10/TRV10E
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Model
8: DCR-TRV8 10: DCR-TRV10
8E: DCR-TRV8E 10E: DCR-TRV10E
• Abbreviation
AUS: Australian model
JE: Tourist model
CND: Canadian model
CN: Chinese mode
HK: Hong Kong model
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

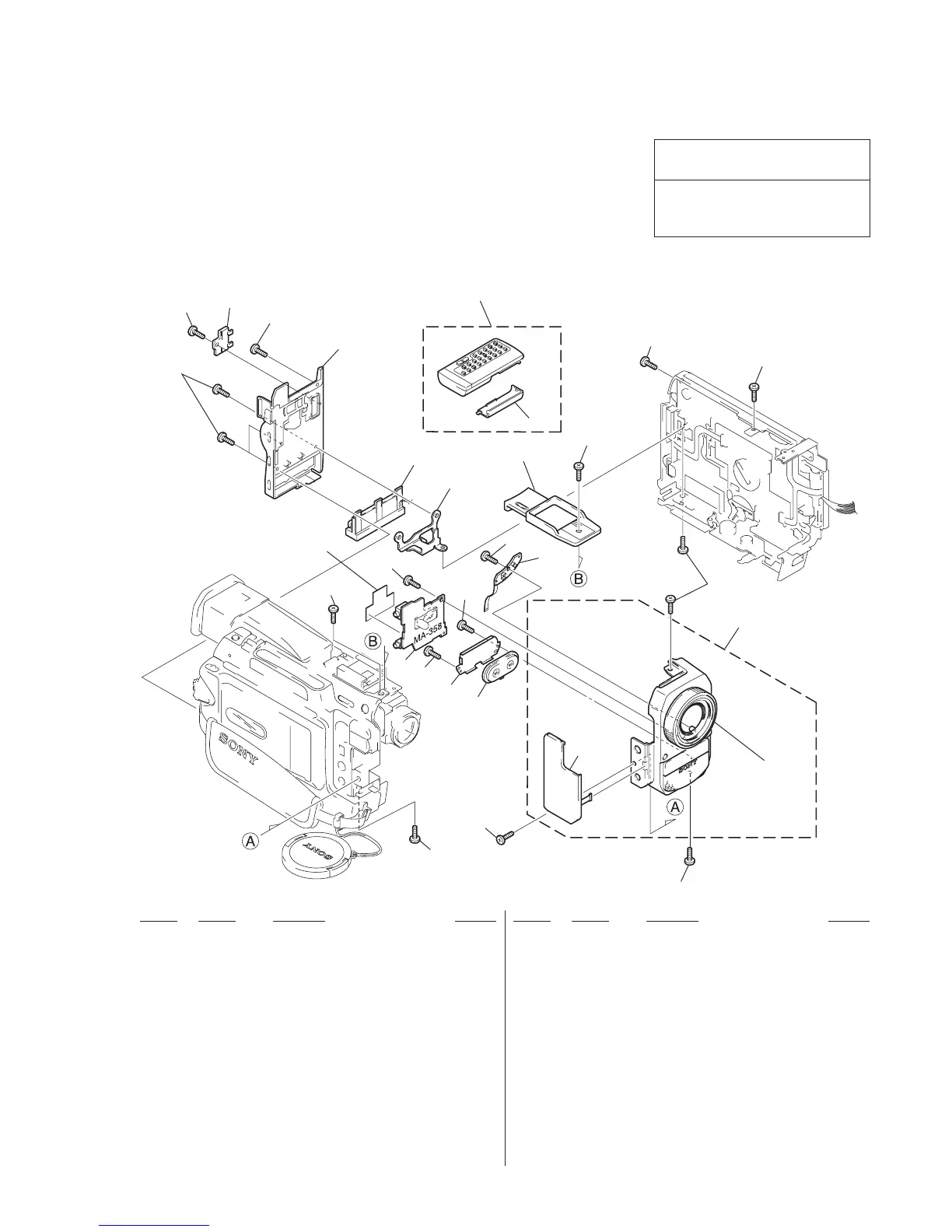

6-1-1. FRONT PANEL SECTION
MIC901
not supplied
not supplied
1
2
5
6
6
6
6
7
8
9
10
11
12
13
14
14
14
14
14
14
14
14
14
14
14
3
4
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3949-671-1 PANEL ASSY, F
(8E:AEP,UK,HK,CN,AUS/10E:AEP,UK,HK,JE,CN,AUS)
1 X-3949-677-1 PANEL ASSY, F (8/8E:E/10/10E:E)
2 3-055-307-01 COVER (F), JACK
3 1-475-141-21 COMMANDER, REMOTE (RMT-808)
(8/8E:E,HK,CN,AUS)
3 1-475-141-31 COMMANDER, REMOTE (RMT-809)(8E:AEP,UK)
3 1-475-950-21 REMOTE COMMANDER (RMT-811)
(10/10E:E,HK,JE,CN,AUS)
3 1-475-950-31 REMOTE COMMANDER (RMT-812)
(10E:AEP,UK)
4 3-053-056-01 LID, BATTERY CASE (For RMT-811,RMT-812)
(10/10E)
4 3-742-854-21 LID, BATTERY CASE (For RMT-808,RMT-809)
(8/8E)
* 5 X-3949-794-1 RETAINER ASSY, MICROPHONE
6 3-713-791-51 SCREW (M1.7X3.5), TAPPING, P2
7 A-7073-972-A MA-358 BOARD COMPLETE
8 A-7073-973-A SE-94 BOARD COMPLETE
9 X-3949-672-1 CABINET ASSY, TOP
10 3-055-282-01 BRACKET (LOWER), STRAP
11 1-694-493-11 TERMINAL BOARD, BATTERY
12 X-3949-623-1 PANEL ASSY, BT
13 3-055-331-01 COVER, CPC
14 3-989-735-91 SCREW (M1.7), LOCK ACE, P2
MIC901 1-418-351-11 MICROPHONE UNIT
To Next Page
