Sony DCR-TRV8 - Lcd, Control Switch Block

2-7

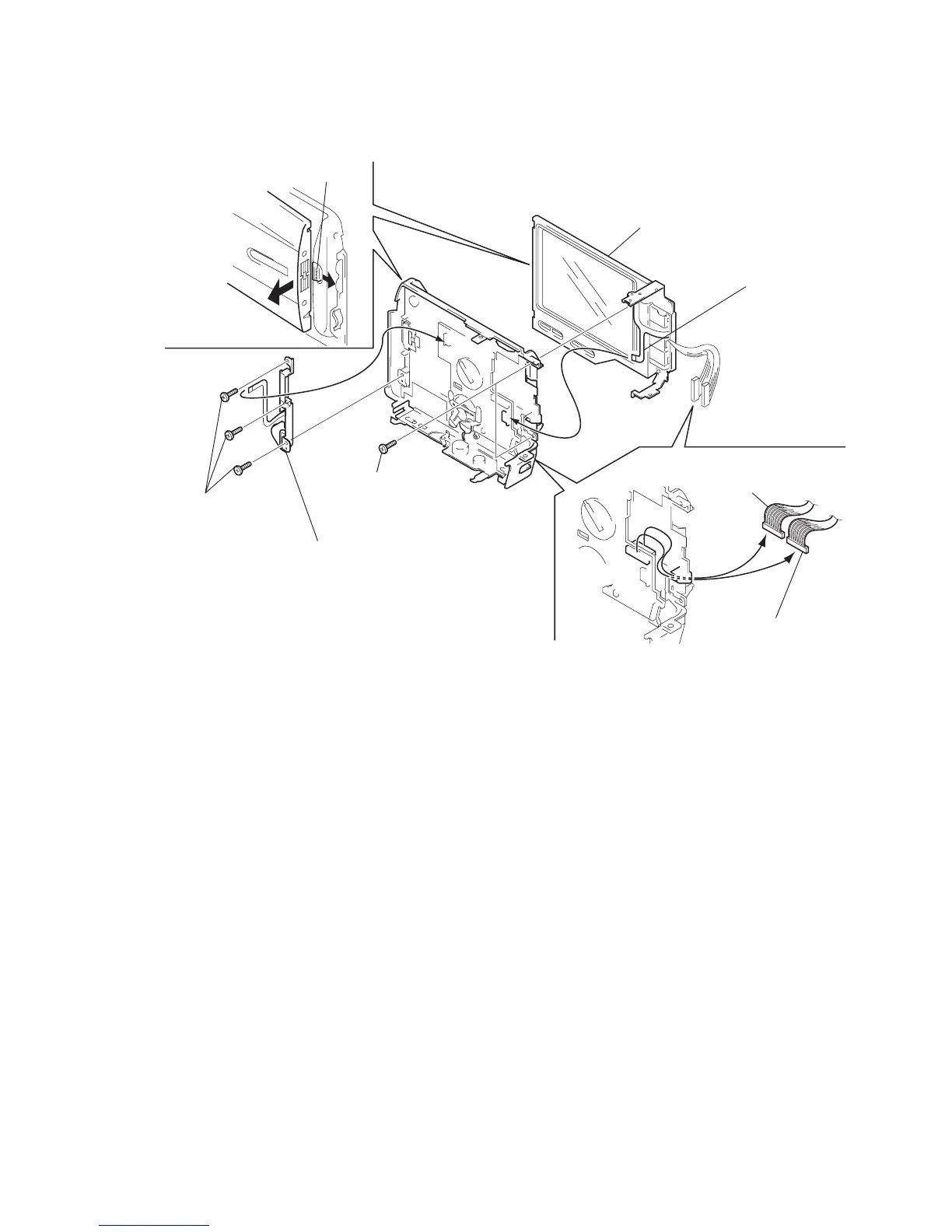

2-12.LCD, CONTROL SWITCH BLOCK
1 Three tapping screws
(M1.7
× 3.5)
7 Two screws (M1.7)
lock ace
8 LCD assembly
4 Harness (PC-111)
CN8603 14P (CK-84 board)
5 Harness (PC-112)
CN8604 13P (CK-84 board)
6 FP-91 flexible board
CN8606 6P (CK-84 board)
3 Slide the panel lock knob
backward and open the LCD panel.
2 Control switch block (CF-4550)
CN8605 6P (CK-84 board)
