DCR-TRV8/TRV8E/TRV10/TRV10E
4-88 4-89 4-90

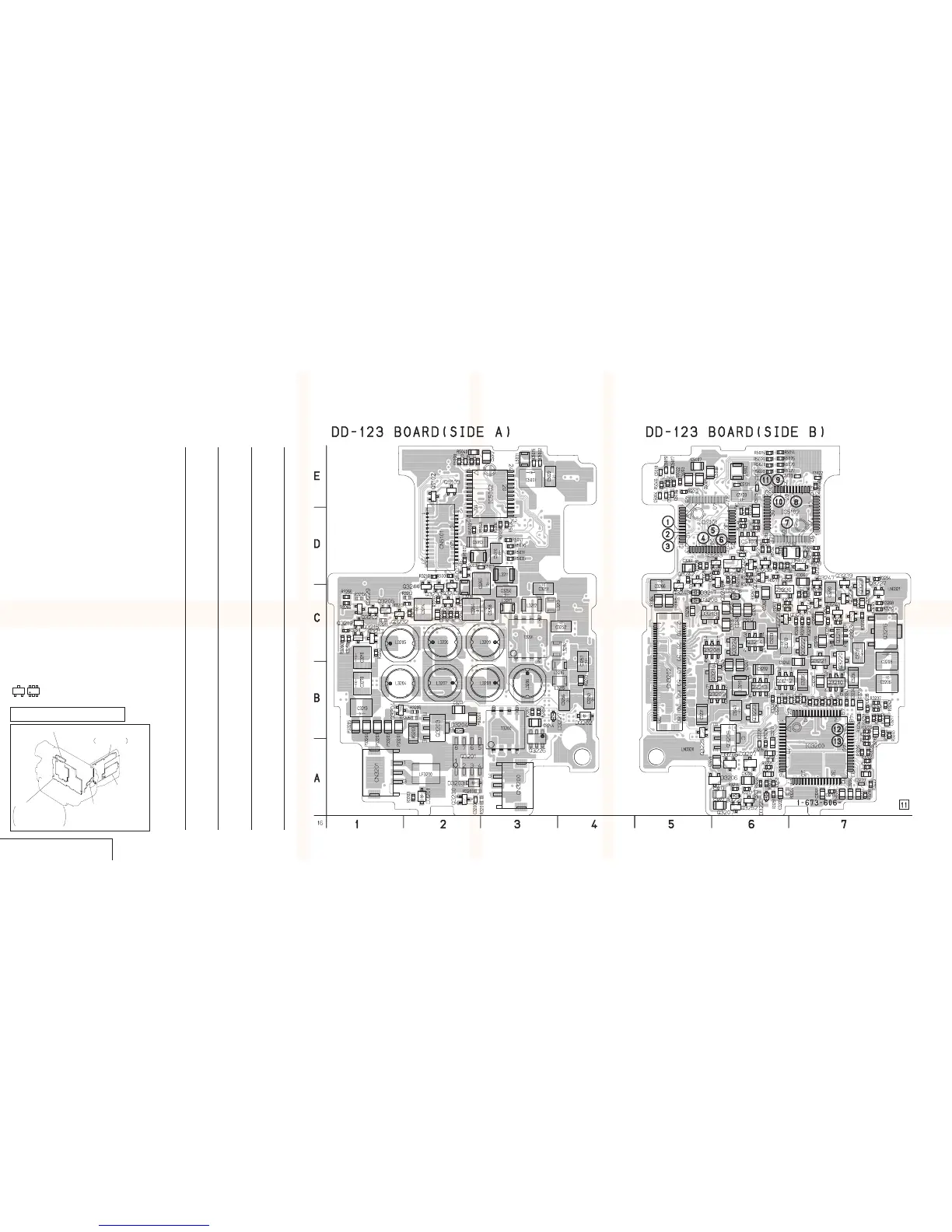

DD-123 (COLOR EVF, DC/DC CONVERTER) PRINTED WIRING BOARD
— Ref. No. DD-123 Board; 10,000 Series —
COLOR EVF, DC/DC CONVERTER
DD-123
DD-123 BOARD
C3200 A-2
C3201 A-7
C3202 A-7
C3203 A-6
C3204 A-7
C3205 C-8
C3206 B-8
C3207 A-7
C3208 B-8
C3209 A-7
C3210 C-1
C3211 A-6
C3212 A-7
C3213 B-1
C3214 C-2
C3216 B-8
C3217 B-8
C3218 A-6
C3219 B-7
C3220 A-6
C3221 A-6
C3222 A-6
C3223 A-6
C3224 B-7
C3225 B-7
C3226 B-6
C3227 B-7
C3228 B-7
C3229 B-7
C3230 B-7
C3231 B-5
C3232 B-6
C3233 C-6
C3234 B-7
C3235 B-7
C3236 C-5
C3237 C-7
C3238 B-7
C3239 C-7
C3240 B-7
C3241 B-6
C3242 C-6
C3243 B-6
C3244 B-3
C3245 C-6
C3246 C-6
C3247 B-6
C3248 C-6
C3249 C-6
C3250 C-3
C3251 C-3
C3252 C-4
C3253 B-4
C3254 D-6
C3255 C-7
C3256 B-4
C3257 B-4
C3258 C-3
C3259 C-2
C3260 C-7
C3261 D-5
C3262 C-6
C3263 D-6
C3264 C-2
C3265 D-7
C3266 C-5
C3267 D-2
C3269 C-7
C3270 B-1
C3271 B-2
C3272 C-6
C3273 A-6
C5001 E-3
C5002 E-3
C5003 E-5
C5004 E-5
C5005 E-5
C5006 E-5
C5007 E-5
C5008 E-5
C5009 E-5
C5010 D-3
C5011 D-2
C5012 E-3
C5013 D-2
C5015 E-3
C5017 E-5
C5018 E-5
C5019 E-5
C5020 E-2
C5021 E-6
C5022 E-3
C5115 D-6
C5116 D-6
C5117 D-6
C5118 D-6
C5119 D-7
C5120 E-6
C5121 E-6
C5122 E-7
C5123 E-7
CN3200 A-3
CN3201 A-1
CN3202 B-5
CN5101 D-2
CN5601 A-2
CN5802 C-1
CN5803 B-1
CN5806 A-4
CN8613 D-4
D3201 A-2
D3202 B-4
D3203 A-2
D3204 B-2
D3205 A-6
D3206 A-6
D3207 A-6
D3208 C-5
D3213 C-5
D3216 C-6
D3217 C-5
D3221 A-6
D3223 A-6
D3227 B-3
D5102 D-7
IC3200 A-7
IC5001 D-5
IC5002 E-3
IC5102 D-7
IC5103 D-6
L3204 B-1
L3205 C-1
L3206 B-3
L3207 B-2
L3208 B-3
L3209 C-3
L3210 B-6
L3211 D-3
L3212 C-3
L3213 C-3
L3214 C-3
L3215 B-4
L3216 B-4
L3217 C-3
L3218 C-2
L3220 C-2
L5001 E-3
L5003 D-2
L5102 E-6
L5103 D-7
LF3200 A-2
PS3200 B-2
PS3201 B-1
PS3202 B-1
PS3203 B-1
PS3204 B-1
PS3205 B-1
Q3200 A-2
Q3201 A-2
Q3202 B-2
Q3202 C-1
Q3204 B-1
Q3205 C-1
Q3206 A-6
Q3207 A-6
Q3208 C-5
Q3209 B-6
Q3210 B-7
Q3211 C-7
Q3212 B-6
Q3213 B-6
Q3214 C-6
Q3215 C-1
Q3216 C-8
Q3217 C-1
Q3218 B-6
Q3219 C-1
Q3220 C-7
Q3221 C-7
Q3222 C-7
Q3223 B-6
Q3224 C-6
Q3225 B-5
Q3226 A-3
Q3227 C-8
Q3228 C-6
Q3230 C-6
Q3231 C-7
Q3232 C-1
Q3233 C-2
Q3234 C-7
Q3235 D-6
Q3236 C-7
Q3237 C-2
Q3238 D-6
Q3239 D-7
Q3240 D-6
Q3241 C-7
Q3242 D-5
Q3243 C-5
Q3244 C-2
Q3245 C-2
Q3246 C-7
Q3247 D-7
Q3248 D-6
Q3250 D-6
Q3251 C-7
Q3252 A-6
Q3253 D-6
Q5001 D-2
Q5102 E-2
Q5103 E-2
R3200 A-2
R3202 C-1
R3203 B-2
R3204 A-6
R3205 B-2
R3206 B-2
R3207 A-6
R3209 A-6
R3210 C-8
R3211 C-1
R3212 C-2
R3213 C-2
R3214 A-6
R3215 C-2
R3216 C-2
R3217 A-6
R3218 A-7
R3219 D-2
R3220 A-6
R3221 A-6
R3222 A-8
R3223 A-8
R3224 A-6
R3225 A-7
R3226 A-8
R3227 D-6
R3228 D-5
R3229 D-5
R3230 B-7
R3231 A-7
R3232 B-8
R3233 B-8
R3234 B-7
R3235 B-8
R3236 A-6
R3237 B-8
R3238 B-8
R3239 B-7
R3240 A-8
R3241 B-7
R3242 B-8
R3243 B-8
R3244 B-8
R3245 B-8
R3246 C-2
R3247 C-2
R3248 B-6
R3249 B-6
R3250 A-6
R3251 A-6
R3252 B-7
R3253 B-7
R3254 C-2
R3255 B-7
R3256 B-7
R3257 C-1
R3258 C-1
R3259 C-1
R3260 C-1
R3261 B-3
R3262 B-3
R3263 B-4
R3265 C-1
R3266 C-1
R3267 C-6
R3268 C-8
R3269 C-6
R3270 C-7
R3271 C-2
R3272 C-7
R3273 C-6
R3274 D-6
R3275 A-7
R3276 C-7
R3277 D-6
R3281 D-5
R3282 D-5
R3283 C-7
R3284 C-7
R3285 C-7
R3286 D-6
R3287 C-6
R3289 C-7
R3291 D-6
R3292 D-6
R3293 C-7
R3296 C-7
R3297 C-7
R3298 C-7
R3299 D-6
R3303 A-2
R3304 C-5
R3305 C-5
R5001 D-2
R5002 D-2
R5005 E-2
R5008 E-2
R5009 E-2
R5013 E-5
R5014 E-6
R5015 E-6
R5020 E-6
R5021 E-6
R5022 E-5
R5023 D-3
R5024 D-3
R5025 E-6
R5026 E-6
R5027 E-6
R5028 E-6
R5030 D-3
R5031 D-3
R5033 D-2
R5034 D-3
R5035 D-3
R5040 E-2
R5041 D-3
R5045 E-5
R5046 E-5
R5047 E-5
R5048 D-3
R5120 D-6
R5121 D-6
R5123 D-6
R5125 D-7
R5127 D-6
R5128 D-6
R5129 D-7
R5130 D-7
R5131 D-7
R5133 E-7
R5134 D-6
R5135 D-6
R5136 D-6
R5137 D-6
T3200 B-3
T3201 C-3
C
BE
5
64
2
13
DD-123 (DC/DC CONVERTER)
PD-110
RGB DECODER, LCD,
TIMING GENERATOR
SE-94 (MF DIAL)
INVERTER TRANSFORMER UNI
VC-217
FOCUS/ZOOM MOTOR DRIVE,
CAMERA, BLOCKING COMPRESS,
VIDEO INTERFACE, DV PROCESS,
REC/PB HEAD AMP, VIDEO IN/OUT,
MECHANISM CONTROL, SERVO,
HI CONTROL, AUDIO
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two to three have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
