Sony DCR-TRV8 - Printed Wiring Boards; Function Switch, Ir

DCR-TRV8/TRV8E/TRV10/TRV10E
4-55 4-56
FP-91
FP-84
(TRV10/10E)
FP-87
FP-85
CK-84 (FUNCTION SWITCH, IR)
JK-170
(AV IN/OUT)
LB-60 (BACK LIGHT DRIVE)
MA-358
(MIC AMP, SIRCS IN)

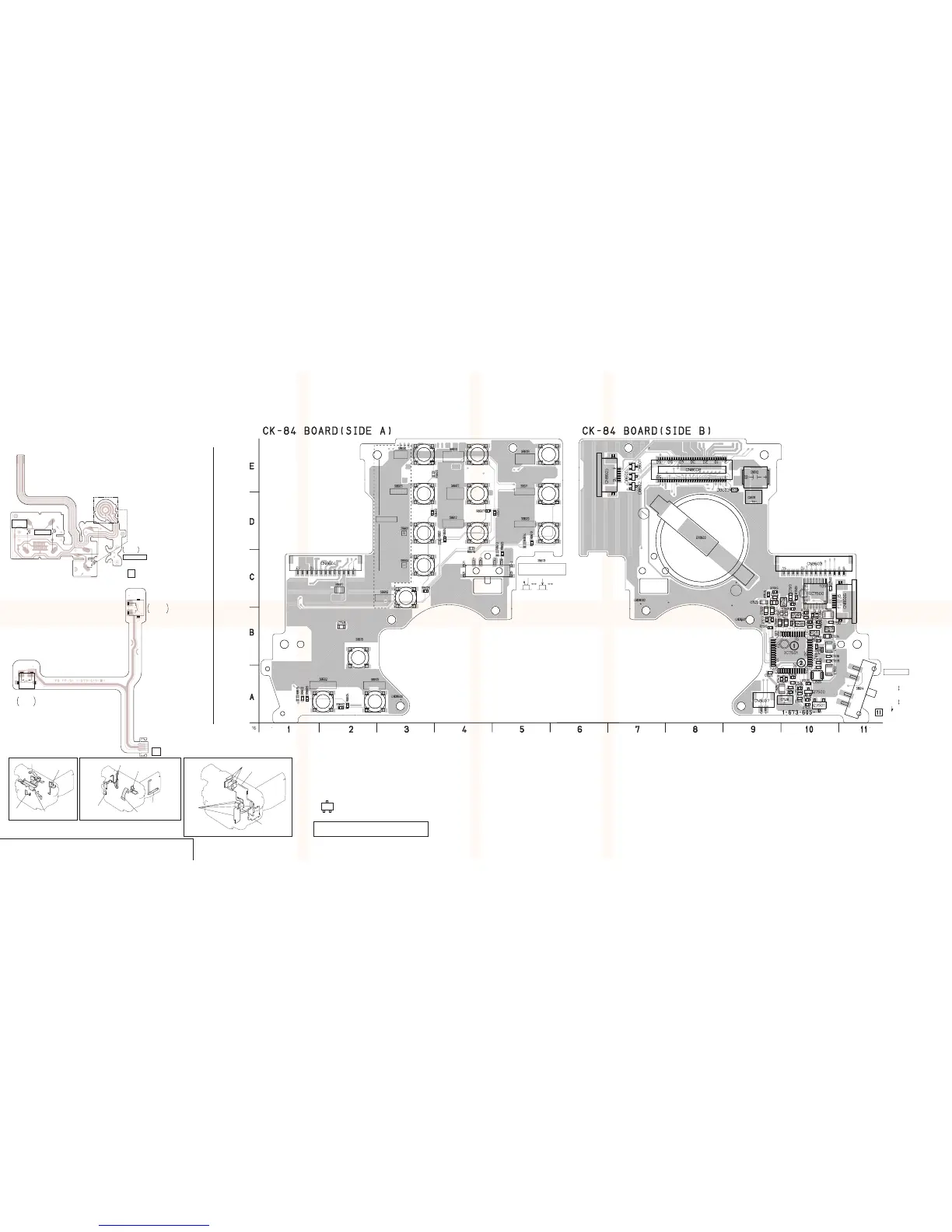

CK-84 (FUNCTION SWITCH, IR), CF4550 (CONTROL DIAL), FP-91 (PANEL REV/CLOSE) PRINTED WIRING BOARDS
— Ref. No. CK-84 Board, CF4550, FP-91 Flexible Boards; 10,000 Series —
/
CONTROL DIAL, PANEL REV/CLOSE
CF4550/FP-91
FUNCTION SWITCH, IR
CK-84
CK-84 BOARD
BT8600 D-8
C7500 C-10
C7501 B-10
C7502 B-10
C7503 B-10
C7504 C-10
C7505 B-10
C7506 B-10
C7507 B-10
C7508 B-10
C7509 B-9
C7510 C-10
C7511 B-10
C7512 B-10
C7513 B-10
C7514 B-10
C7515 C-9
C7516 B-10
C7517 B-9
C7518 C-9
C7519 B-10
C7520 B-10
C7521 A-10
C7522 B-9
C7523 C-9
C7524 A-9
C7525 A-9
C7526 A-10
C7527 A-10
C7528 A-10
C7529 A-10
C7530 A-10
C7531 B-2
C8601 D-9
C8602 E-9
CN8603 C-10
CN8604 C-2
CN8605 E-7
CN8606 C-11
CN8607 A-9
CN8608 E-8
D8600 E-7
D8601 E-7
D8602 E-7
IC7500 C-10
IC7501 B-10
L7500 B-10
L7501 B-10
L7502 A-10
L7503 A-10
Q7500 A-10
Q7501 A-10
R7500 B-10
R7501 B-9
R7502 B-10
R7503 B-10
R7504 B-10
R7505 B-10
R7506 B-10
R7507 C-10
R7508 B-10
R7509 C-10
R7511 B-10
R7512 B-10
R7513 C-9
R7514 B-10
R7515 C-9
R7516 B-9
R7517 B-9
R7518 A-10
R7519 A-9
R7520 A-10
R7521 A-10
R7522 A-10
R7523 A-10
R7524 A-10
R7525 A-10
R8600 E-5
R8601 D-4
R8602 A-2
R8603 D-3
R8604 D-4
R8605 A-2
R8606 C-3
R8607 D-4
R8608 A-1
R8609 D-7
R8610 D-7
R8611 D-7
R8612 A-1
R8613 D-7
R8614 D-7
R8615 A-1
R8616 C-6
R8617 C-2
S8600 E-5
S8601 D-3
S8602 A-2
S8603 E-5
S8604 C-3
S8605 A-2
S8606 C-3
S8607 E-4
S8608 E-7
S8609 D-7
S8610 E-4
S8611 E-7
S8612 D-4
S8613 C-7
S8614 A-11
S8615 B-2
C
BE
S96
16
PA NE L
CLOSE
S97
PANEL
REV
FP-91 FLEXIBLE BOARD
1-673-619-
21
FADER
BACK LIGHT
(RESET)
DELETE
MEMORY
INDEX
PLAY
SELF
TIMER
END
SEARCH
DISPLAY
TRV10/TRV10E
MODEL
DIGITAL
EFFECT
TITLE
MENU
START/STOP
MODE
5 SEC
ANTI GRAND
SHOOTING
FOCUS
AUTO
MANUAL
INFINITY
S102
CONTROL
DIAL
S102
R102
R101
R10
0
S100
PROGRAM
AE
S101
EXPOSURE
CONTROL SWITCH BLOCK
(CF4550)
1-418-349-
11
16
SEL/PUSH EXEC
FP-90
(BRT, VOL CONTROL
)
FP-83 (CCD IMAGER)
CONTROL SWITCH BLOCK (CF4550)
CONTROL SWITCH
BLOCK (PS4550)
FP-82
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two to three have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
