Sony DCR-TRV8 - Precaution; Setting the Switch; Order of Adjustments; Subjects

5-7
H
A=B
C=D
AB B
CD
A
Enlargement
V
Electronic beam scanning frame
CRT picture frame
B
A
Difference in level
Yellow
Cyan
Green
White
Magenta
Red
Blue
Yellow
Cyan
Green
White
Magenta
Red
Blue

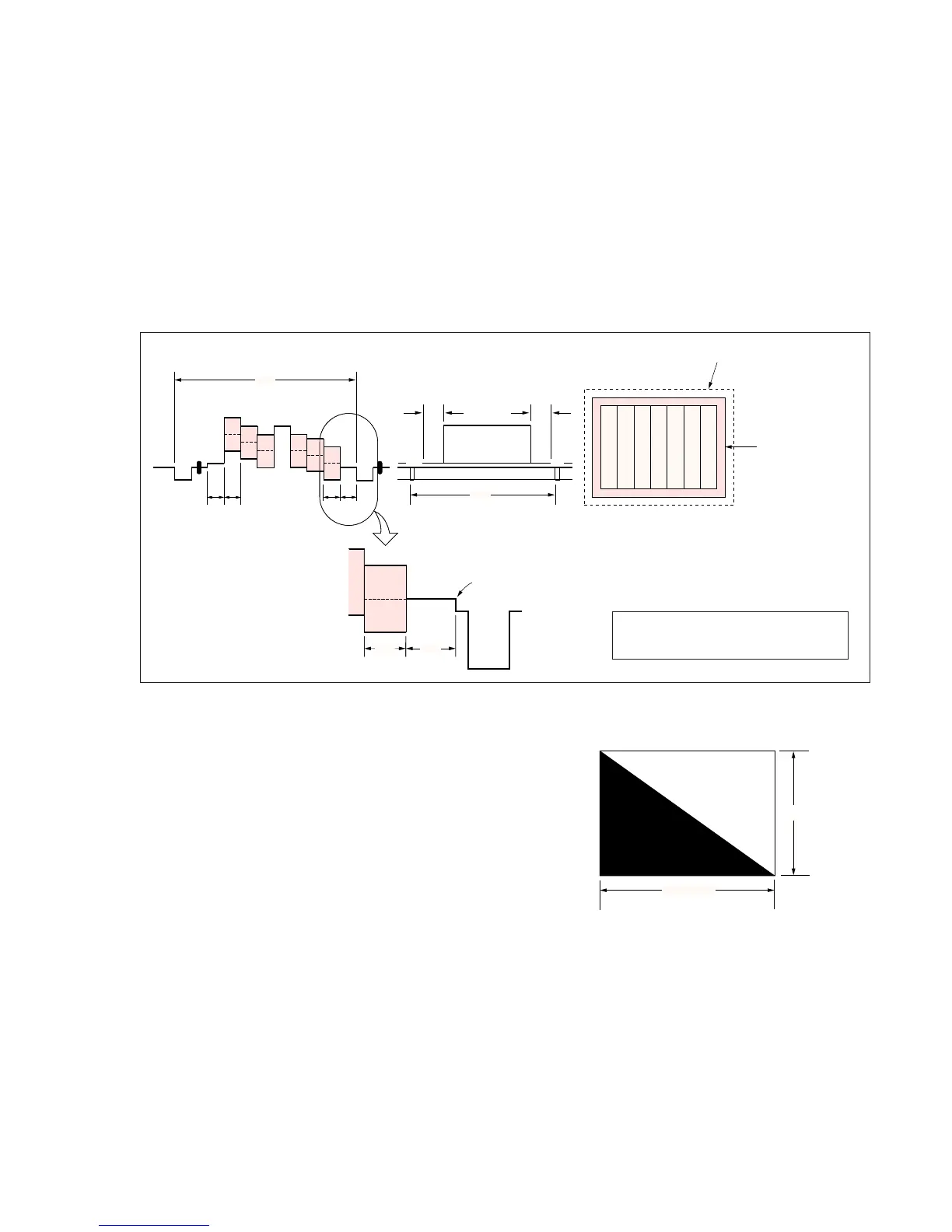

Color bar chart standard picture frame
Fig. a
(Video output terminal
output waveform)
Fig. b (TV monitor picture)
Adjust the camera zoom and direction to
obtain the output waveform shown in Fig. a
and the TV monitor display shown in Fig. b.
White
Black
841m
m
1189mm
1-1-3. Precaution
1. Setting the Switch
Unless otherwise specified, set the switches as follows and perform
adjustments without loading cassette.
1. POWER switch (PS4550 block) ............................ CAMERA
2. NIGHT SHOT switch (Lens block) .................................OFF
3. DEMO MODE (Menu display) .......................................OFF
4. DIGITAL ZOOM (Menu display) ...................................OFF
5. STEADY SHOT (Menu display) .....................................OFF
6. 16 : 9 WIDE (Menu display)............................................OFF
7. PICTURE EFFECT (Menu display) ................................OFF
8. WHITE BALANCE (Menu display) ........................... AUTO
9. DISPLAY (Menu display) .................................V-OUT/LCD
10. DISPLAY (CK-84 board) ................................................. ON
11. FOCUS switch (CK-84 board).............................. MANUAL
12. PROGRAM AE (CF block) ......................................... AUTO
13. DIGITAL EFFECT (CF block)........................................OFF
2. Order of Adjustments
Basically carry out adjustments in the order given.
Fig.5-1-4.
3. Subjects
1) Color bar chart (Color reproduction adjustment frame)
When performing adjustments using the color bar chart, adjust
the picture frame as shown in Fig. 5-1-4. (Color reproduction
adjustment frame)
2) Clear chart (Color reproduction adjustment frame)
Remove the color bar chart from the pattern box and insert a
clear chart in its place. (Do not perform zoom operations during
this time.)
3) Flange back adjustment chart
Make the chart shown in Fig. 5-1-5. using A0 size (1189mm ×
841mm) black and white vellum paper.
Fig. 5-1-5.
Note: Use matte vellum paper bigger than A0, and make sure the edges of
the black and white paper joined together are not rough.
