Sony DCR-TRV8 - Lcd Panel Section

6-3

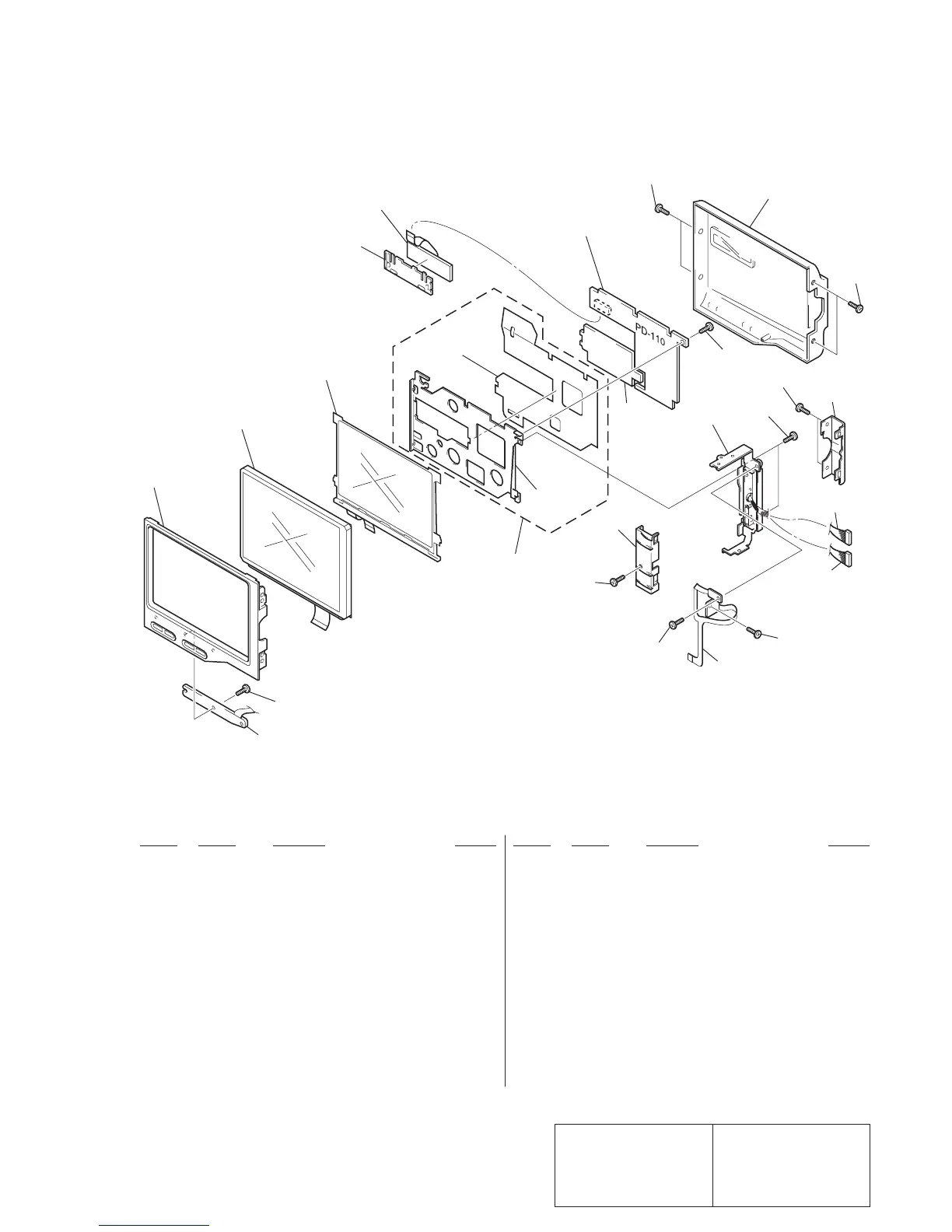

6-1-3. LCD PANEL SECTION
not supplied
not supplied
101
102
103
LCD901
ND901
LCD902
104
105
106
107
108
108
108
108
109
110
110
110
110
111
112
113
114
115
116
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-3949-669-1 CABINET (M) ASSY, P
102 1-673-618-21 FP-90 FLEXIBLE BOARD
103 3-713-791-51 SCREW (M1.7X3.5), TAPPING, P2
104 X-3949-631-1 FRAME ASSY, P
105 3-055-289-01 HOLDER, LCD
106 A-7073-971-A PD-110 BOARD COMPLETE (10/10E:E)
106 A-7074-021-A PD-110 BOARD COMPLETE (8/8E)
106 A-7074-033-A PD-110 BOARD COMPLETE
(10E:AEP,UK,HK,JE,CN,AUS)
! 107 1-418-236-11 TRANSFORMER UNIT, INVERTER
108 4-974-725-01 SCREW (M1.7X2.5), P
109 X-3949-668-1 CABINET (C) ASSY, P (8E:AEP,UK)
109 X-3949-675-1 CABINET (C) ASSY, P (10/10E:E)
109 X-3949-734-1 CABINET (C) ASSY, P (8/8E:E)
109 X-3949-767-1 CABINET (C) ASSY, P (10E:AEP,UK)
109 X-3949-768-1 CABINET (C) ASSY, P (8E:HK,CN,AUS)
109 X-3949-782-1 CABINET (C) ASSY, P (10E:HK,JE,CN,AUS)
110 3-989-735-81 SCREW (M1.7), LOCK ACE, P2
111 3-055-290-01 COVER (FRONT), HINGE
112 1-959-631-11 HARNESS (PC-111) 14PIN
113 1-959-632-11 HARNESS (PC-112) 13PIN
114 X-3949-626-1 HINGE ASSY
115 3-055-291-01 COVER (REAR), HINGE
116 1-673-619-21 FP-91 FLEXIBLE BOARD
LCD901 A-7094-390-A INDICATION LCD BLOCK ASSY
LCD902 1-803-032-21 MODULE, CRYSTAL INDICATION (8/8E)
LCD902 1-803-033-21 MODULE, CRYSTAL INDICATION (10/10E)
! ND901 1-517-869-11 TUBE, FLUORESCENT,COLD CATHODE
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
