Sony DCR-TRV8 - Printed Wiring Boards

DCR-TRV8/TRV8E/TRV10/TRV10E
4-78

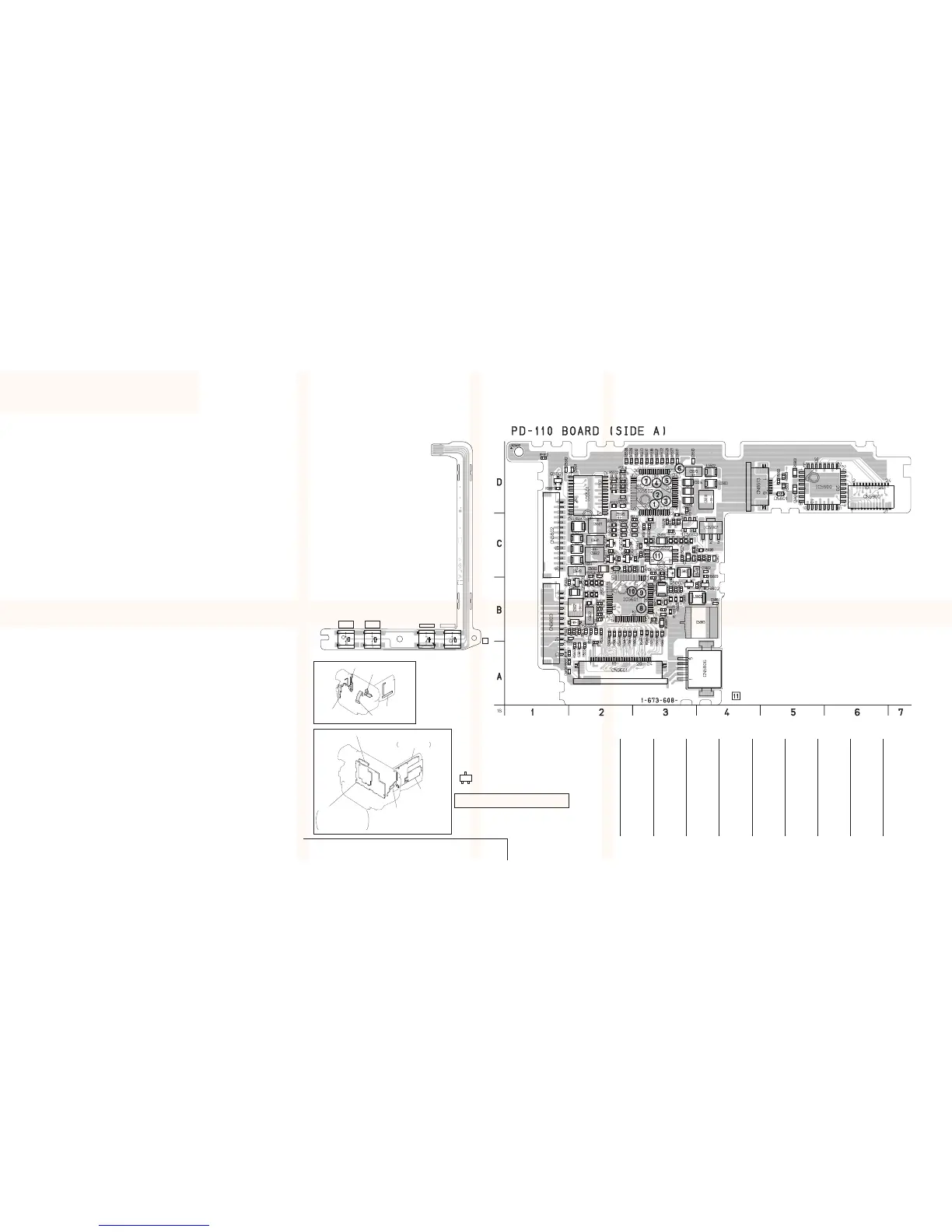

FP-90 (BRT, VOL CONTROL), PD-110 (RGB DECODER, LCD, TIMING GENERATOR) PRINTED WIRING BOARDS
— Ref. No. FP-90 Flexible Board, PD-110 Board; 10,000 Series —
FP-90
(BRT, VOL CONTROL
)
FP-83 (CCD IMAGER)
CONTROL SWITCH BLOCK (CF4550)
CONTROL SWITCH
BLOCK (PS4550)
FP-82
/
RGB DECODER, LCD, TIMING GENERATOR
PD-110
BRT, VOL CONTROL
FP-90
PD-110 BOARD
C5501 D-2
C5502 D-1
C5503 C-3
C5504 C-3
C5505 C-3
C5506 D-2
C5507 C-2
C5508 D-2
C5509 C-2
C5510 D-4
C5512 D-3
C5513 D-3
C5514 D-3
C5515 D-3
C5516 D-3
C5517 D-3
C5520 C-2
C5521 C-2
C5522 C-2
C5523 D-2
C5601 C-2
C5602 C-2
C5603 C-2
C5604 C-3
C5605 C-2
C5607 C-4
C5608 B-3
C5610 B-3
C5611 C-3
C5612 C-2
C5613 C-3
C5616 C-3
C5618 C-2
C5619 A-2
C5620 B-2
C5621 B-2
C5622 B-2
C5623 B-3
C5624 B-2
C5801 C-4
C5802 C-4
C5803 B-4
C5804 B-4
C5805 A-2
C5900 D-5
CN5601 A-2
CN5802 C-1
CN5803 B-1
CN5806 A-4
CN5900 D-6
CN8613 D-4
D5601 C-2
D5602 C-3
D5604 B-2
D5801 D-5
IC5501 D-2
IC5502 D-3
IC5601 B-2
IC5602 C-3
IC5603 C-3
IC5900 D-5
IC5901 C-4
L5501 C-2
L5502 D-4
L5503 D-4
L5601 C-2
L5603 C-2
L5604 C-2
L5605 B-3
L5801 C-3
L5802 B-4
Q5605 C-2
Q5606 C-2
Q5607 C-2
Q5608 C-2
Q5609 B-2
Q5801 D-1
Q5802 B-4
Q5803 B-3
R5501 D-2
R5502 D-2
R5503 D-2
R5504 D-2
R5505 D-2
R5506 D-2
R5507 D-2
R5508 D-2
R5509 D-2
R5510 C-3
R5511 C-3
R5512 D-3
R5513 D-3
R5514 C-3
R5515 C-3
R5516 D-2
R5517 D-3
R5518 D-3
R5520 C-3
R5521 D-3
R5522 D-3
R5526 D-3
R5527 D-3
R5528 C-3
R5532 D-2
R5540 C-2
R5541 C-2
R5542 C-2
R5544 C-3
R5601 B-2
R5602 B-2
R5603 C-3
R5604 B-1
R5605 B-3
R5607 C-3
R5608 C-2
R5610 C-2
R5613 C-4
R5614 C-4
R5615 C-4
R5620 C-3
R5621 B-3
R5622 C-3
R5623 C-3
R5624 C-3
R5625 B-2
R5626 B-3
R5627 B-2
R5628 B-2
R5629 C-3
R5630 C-3
R5634 C-3
R5640 C-3
R5641 C-3
R5643 C-3
R5644 C-3
R5647 B-3
R5648 B-2
R5649 B-2
R5650 B-2
R5651 A-2
R5652 A-2
R5653 C-2
R5654 B-2
R5655 B-2
R5656 B-2
R5657 B-3
R5658 B-3
R5659 B-3
R5660 B-3
R5661 B-3
R5663 B-3
R5664 B-2
R5665 B-2
R5666 B-2
R5667 B-2
R5668 B-2
R5669 B-2
R5670 B-2
R5671 B-2
R5672 B-2
R5673 B-2
R5674 B-2
R5676 B-2
R5679 B-3
R5680 B-3
R5681 B-3
R5682 B-3
R5683 B-3
R5684 B-3
R5685 C-2
R5686 C-2
R5687 C-3
R5688 B-3
R5691 C-3
R5695 B-2
R5699 C-4
R5700 C-3
R5701 D-3
R5702 C-3
R5703 B-3
R5704 A-2
R5801 D-5
R5802 D-5
R5803 D-5
R5807 D-1
R5808 B-4
R5809 C-4
R5810 A-2
R5811 A-2
R5812 D-1
R5900 D-5
C
BE
1
673 618 1 FP
90
LCD
BRIGHT (+)
VOLUME (–)
LCD
BRIGHT (–)
VOLUME (+)
FP-90 FLEXIBLE BOARD
16
1-673-618-
21
DCR-TRV8/TRV8E/TRV10/TRV10E
DD-123 (DC/DC CONVERTER)
PD-110
RGB DECODER, LCD,
TIMING GENERATOR
SE-94 (MF DIAL)
INVERTER TRANSFORMER UNI
T
VC-217
FOCUS/ZOOM MOTOR DRIVE,
CAMERA, BLOCKING COMPRESS,
VIDEO INTERFACE, DV PROCESS,
REC/PB HEAD AMP, VIDEO IN/OUT,
MECHANISM CONTROL, SERVO,
HI CONTROL, AUDIO
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to six have not been included in the
diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
