Sony DCR-TRV8 - Cs Flame Assembly; Lens, Outer Connector (Hot Shoe); Board

2-5

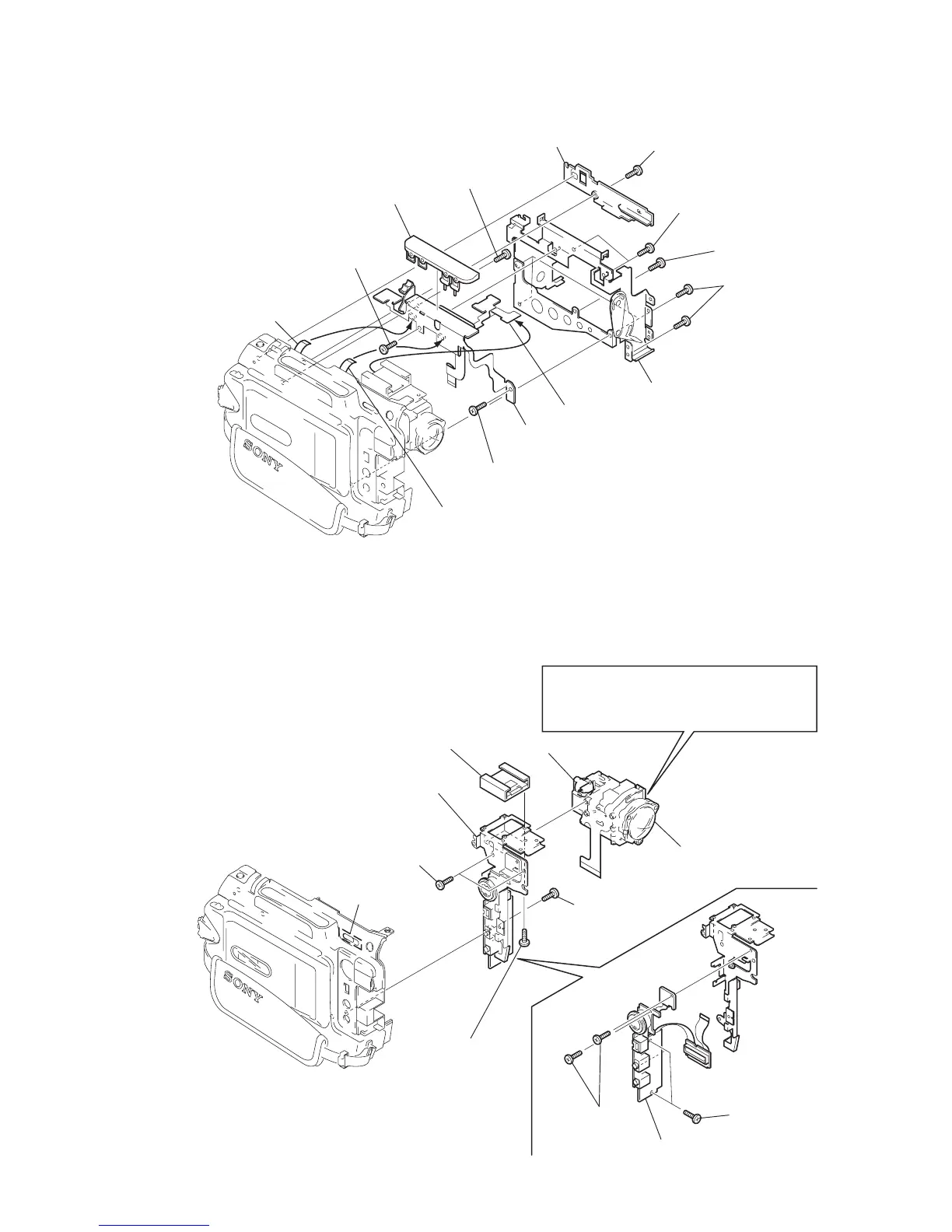

2-8. CS FLAME ASSEMBLY
2 Screw (M1.7 × 2.5)
1 Remove it from the external connector (hot shoe).
!™ Screw (M1.7 × 2.5)
8 Control switch block (PS4550)
CN64 (FP-85 flexible board)
9 FP-84 flexible board (TRV10/TRV10E only)
CN62 (FP-85 flexible board)
!£ Screw (M1.7 × 2.5)
!¢ FP-85 flexible board
4 Tapping screw
(M1.7
× 3.5)
5 Two tapping screws
(M1.7
× 3.5)
6 Four tapping screws
(M1.7
× 3.5)
!º CS flame assembly
!¡ FK button
7 Tapping screw
(M1.7
× 3.5)
3 Zoom cover
2-9. LENS, OUTER CONNECTOR (HOT SHOE), JK-170 BOARD
1 Tapping screw
(M1.7 × 3.5)
9 JK-170 board
7 Two screws
(M1.7 × 2.5)
8 Two screws
(M1.7 × 2.5)
2 Lens flame
6 Outer connector (hot shoe)
5 Four screws
(M1.7 × 2.5)
3 Two tapping screws
(M1.7 × 3.5)
4 Lens assembly
A lever
B groove
Note for installation
When installing the lens and the lens frame to the
cabinet (L) assembly, align the lever A with the
groove B , and install them.
