DCR-TRV8/TRV8E/TRV10/TRV10E
VC-217 (FOCUS/ZOOM MOTOR DRIVE, CAMERA, BLOCKING COMPRESS, VIDEO INTERFACE, DV PROCESS, REC/PB HEAD AMP,
VIDEO IN/OUT, MECHANISM CONTROL, SERVO, HI CONTROL, AUDIO) PRINTED WIRING BOARD
— Ref. No. VC-217 Board; 10,000 Series —
4-51 4-52
CAMERA, BLOCKING, VIDEO INTERFACE, DV PROCESS, REC/PB HEAD AMP, MECHA CONTROL, SERVO, HI CONTROL, AUDIO
VC-217

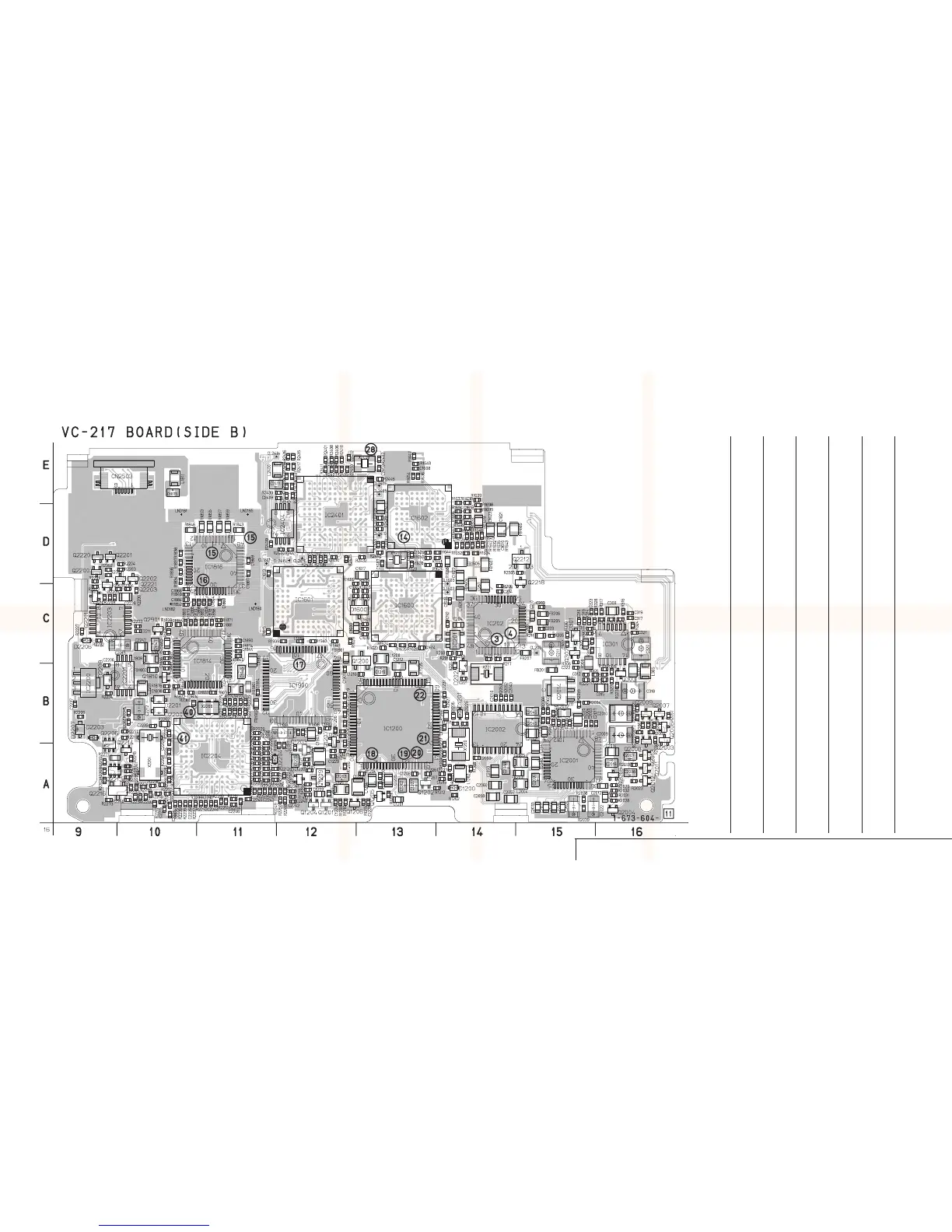

VC-217 BOARD (SIDE B)
C202 C-15
C203 C-15
C204 C-14
C210 C-15
C211 C-15
C213 C-14
C216 C-14
C219 C-14
C221 B-14
C234 C-14
C267 C-14
C268 C-15
C302 C-15
C303 C-16
C305 C-15
C307 C-15
C308 C-16
C310 C-15
C311 B-16
C312 B-15
C315 B-16
C317 C-16
C318 B-16
C319 C-16
C320 C-16
C321 C-16
C322 B-15
C323 C-15
C1200 A-13
C1201 A-13
C1202 A-13
C1203 A-12
C1204 A-13
C1205 A-13
C1206 B-12
C1207 A-13
C1208 A-13
C1209 A-12
C1210 A-14
C1211 A-12
C1212 B-13
C1213 B-12
C1214 B-12
C1215 A-14
C1216 B-13
C1217 B-12
C1218 B-12
C1219 B-13
C1220 A-13
C1221 B-12
C1222 A-12
C1223 A-12
C1224 A-12
C1225 B-14
C1226 A-13
C1227 A-14
C1228 A-13
C1229 A-12
C1230 A-12
C1231 B-14
C1232 B-13
C1233 B-14
C1234 B-14
C1235 B-14
C1600 C-12
C1601 C-13
C1602 C-12
C1603 C-13
C1604 C-14
C1606 D-13
C1607 D-13
C1608 E-13
C1609 D-13
C1610 D-14
C1611 D-14
C1612 D-14
C1613 D-11
C1614 C-13
C1615 C-11
C1616 C-13
C1617 D-13
C1618 D-14
C1619 D-14
C1620 C-14
C1621 D-14
C1622 D-14
C1623 D-14
C1804 C-11
C1833 B-11
C1834 B-10
C1837 C-10
C1838 B-10
C1840 C-11
C1844 C-11
C1845 B-11
C1846 C-10
C1847 C-10
C1850 C-10
C1852 C-10
C1854 C-10
C1856 C-11
C1860 C-11
C1866 C-10
C1869 D-11
C1875 E-10
C1878 C-11
C1881 C-11
C1884 C-10
C1885 C-10
C1886 C-11
C1887 D-11
C1888 C-11
C1889 C-11
C1890 C-11
C1891 B-10
C1901 B-12
C1902 B-12
C1903 B-12
C1904 C-12
C1908 B-12
C1909 A-12
C1910 B-12
C1914 B-11
C1915 C-11
C1933 B-12
C2003 B-15
C2004 B-15
C2007 A-16
C2008 A-16
C2009 B-16
C2010 B-16
C2012 A-16
C2014 A-16
C2016 A-16
C2017 B-15
C2018 A-16
C2022 A-15
C2024 A-15
C2025 B-15
C2028 A-15
C2029 A-15
C2030 B-15
C2031 A-15
C2032 B-15
C2033 A-15
C2034 B-15
C2035 B-15
C2036 B-15
C2037 A-15
C2040 A-15
C2041 A-15
C2042 B-15
C2043 B-14
C2045 B-15
C2048 A-14
C2049 B-15
C2050 B-14
C2053 A-14
C2056 B-15
C2057 A-14
C2058 A-14
C2059 A-14
C2060 A-14
C2207 B-10
C2210 C-9
C2211 C-10
C2212 B-10
C2213 C-10
C2215 A-10
C2224 A-10
C2225 A-10
C2226 A-10
C2227 B-11
C2232 B-10
C2233 B-10
C2234 A-10
C2237 B-9
C2238 C-10
C2239 A-12
C2240 A-12
C2241 A-12
C2242 A-12
C2243 A-11
C2244 A-11
C2245 A-11
C2246 A-11
C2247 C-10
C2400 E-12
C2402 E-12
C2403 E-13
C2405 D-13
C2408 E-12
C2411 E-11
CN2503 E-10
D202 B-14
D301 C-15
D1200 A-14
D1201 B-14
D1600 C-13
D2200 B-10
D2201 B-10
D2203 B-9
D2204 A-11
D2206 C-9
D2207 B-9
D2208 B-9
FB201 B-15
FB205 C-15
FB206 C-15
FB207 C-15
FB1604 D-14
FB1605 D-14
FB1606 D-14
FB1607 D-14
FB1801 B-11
FB1802 B-10
FB1901 C-12
FB1902 B-11
FB2001 A-15
IC201 C-14
IC202 C-14
IC301 C-16
IC1200 B-13
IC1600 C-13
IC1601 C-12
IC1602 D-13
IC1814 C-11
IC1816 D-11
IC1900 B-12
IC2001 A-15
IC2002 B-14
IC2200 B-9
IC2201 B-10
IC2203 C-9
IC2204 A-11
IC2401 D-12
IC2404 D-12
L305 B-16
L1200 C-13
L1201 A-12
L1202 A-14
L1203 A-12
L1204 A-13
L1205 B-13
L1803 B-11
L1808 C-10
L1811 E-10
L2004 A-15
L2005 A-15
L2201 B-10
L2400 E-11
Q302 C-15
Q303 B-16
Q1200 C-13
Q1201 A-12
Q1202 A-13
Q1203 A-12
Q1204 A-12
Q1205 A-13
Q1206 A-12
Q1207 B-12
Q1208 A-12
Q1209 A-12
Q1810 B-10
Q2003 B-16
Q2004 A-16
Q2005 A-16
Q2006 B-16
Q2007 B-16
Q2008 B-16
Q2009 B-16
Q2011 A-16
Q2012 A-16
Q2013 A-16
Q2014 B-15
Q2200 D-9
Q2201 D-9
Q2202 D-10
Q2203 C-9
Q2206 A-9
Q2211 C-9
Q2212 D-15
Q2213 A-9
Q2214 A-10
Q2216 A-9
Q2218 D-15
Q2220 D-9
Q2221 D-10
Q2901 C-10
R205 C-15
R206 C-14
R211 C-15
R217 C-14
R221 B-14
R290 C-14
R291 C-14
R292 C-14
R302 B-16
R306 C-15
R308 B-15
R310 C-15
R311 C-15
R312 C-15
R313 C-16
R314 C-15
R315 C-15
R316 C-16
R317 C-16
R318 B-16
R319 C-15
R320 B-15
R321 B-16
R322 B-15
R323 B-16
R324 C-16
R325 B-16
R326 C-16
R327 B-16
R328 C-15
R329 B-15
R330 C-15
R1202 A-14
R1203 A-14
R1204 A-12
R1205 A-12
R1206 A-12
R1207 A-12
R1208 A-12
R1209 A-13
R1210 A-12
R1211 A-12
R1212 A-14
R1213 A-13
R1214 A-12
R1215 A-13
R1216 A-12
R1217 A-12
R1218 A-12
R1219 B-12
R1266 B-14
R1267 A-13
R1268 A-14
R1269 A-14
R1270 A-14
R1271 B-14
R1618 C-13
R1619 D-13
R1620 D-13
R1621 C-12
R1622 C-13
R1623 C-13
R1624 C-13
R1625 C-13
R1626 D-14
R1628 C-13
R1629 C-12
R1630 D-13
R1632 D-14
R1633 D-14
R1634 D-14
R1635 D-14
R1636 E-13
R1637 D-14
R1638 D-14
R1639 E-14
R1640 D-14
R1641 D-14
R1642 D-14
R1643 D-14
R1644 D-14
R1645 D-14
R1646 D-14
R1647 E-13
R1648 E-13
R1649 D-14
R1650 D-13
R1651 D-14
R1652 D-14
R1653 D-14
R1654 E-13
R1655 D-14
R1689 D-12
R1694 D-14
R1695 D-14
R1696 D-14
R1697 D-14
R1698 D-14
R1699 D-14
R1826 C-10
R1828 C-10
R1834 D-10
R1836 D-10
R1837 D-10
R1838 D-10
R1843 D-11
R1846 D-10
R1848 C-10
R1852 C-10
R1853 D-11
R1855 D-11
R1857 D-11
R1859 D-11
R1869 C-10
R1870 C-10
R1871 C-11
R1872 B-10
R1874 C-11
R1875 B-10
R1876 B-10
R1879 C-10
R1909 A-12
R1938 B-12
R1939 C-12
R1940 C-12
R1941 C-12
R2017 B-16
R2018 B-16
R2019 A-16
R2021 B-16
R2022 B-16
R2023 A-16
R2028 A-16
R2029 A-16
R2031 A-16
R2032 A-16
R2038 A-15
R2039 A-15
R2040 B-15
R2041 B-15
R2052 B-14
R2053 B-14
R2054 B-15
R2055 B-15
R2056 B-16
R2057 B-16
R2058 B-16
R2059 B-16
R2061 B-16
R2064 B-15
R2065 B-15
R2066 B-15
R2201 D-9
R2202 A-10
R2203 D-10
R2204 D-10
R2205 A-11
R2206 B-9
R2207 C-9
R2208 C-9
R2209 C-9
R2210 B-10
R2211 B-11
R2212 A-11
R2215 B-10
R2216 A-10
R2217 A-10
R2218 A-10
R2221 A-11
R2222 A-11
R2223 A-11
R2224 A-11
R2225 B-11
R2226 A-11
R2227 C-9
R2229 B-11
R2230 C-10
R2231 A-12
R2232 C-9
R2233 C-10
R2234 B-9
R2235 B-11
R2236 A-10
R2237 A-10
R2238 A-10
R2239 A-11
R2240 B-11
R2241 B-11
R2242 B-11
R2245 B-11
R2246 A-11
R2247 B-11
R2248 A-12
R2250 A-12
R2251 A-11
R2252 A-11
R2253 A-10
R2254 A-11
R2255 A-11
R2256 A-11
R2257 B-11
R2258 A-10
R2259 A-10
R2260 A-10
R2261 A-10
R2262 B-10
R2263 A-9
R2264 A-10
R2265 B-10
R2266 A-10
R2267 A-10
R2268 A-10
R2269 A-9
R2270 B-10
R2271 A-9
R2272 A-9
R2273 A-9
R2274 A-10
R2275 A-10
R2276 B-11
R2277 A-11
R2277 A-11
R2278 A-11
R2279 A-11
R2280 A-11
R2281 A-11
R2282 A-11
R2283 B-11
R2284 A-11
R2285 B-11
R2286 A-12
R2287 A-11
R2288 A-12
R2289 A-11
R2290 A-11
R2291 A-11
R2292 A-11
R2293 A-10
R2294 A-10
R2295 A-10
R2297 A-10
R2298 A-10
R2299 A-10
R2300 B-10
R2301 C-10
R2302 D-9
R2303 D-9
R2304 C-10
R2305 D-15
R2401 E-12
R2402 E-13
R2405 E-12
R2406 E-12
R2407 E-12
R2408 E-12
R2409 E-12
R2410 E-12
R2411 E-12
R2415 E-12
R2416 E-12
R2417 E-12
R2418 E-12
R2419 E-12
R2420 E-12
R2421 E-12
R2422 E-12
R2423 E-12
R2424 E-12
R2425 D-12
R2426 D-12
R2427 D-12
R2428 D-12
R2429 D-13
R2430 D-13
R2432 D-13
R2433 E-12
R2434 D-12
R2436 D-12
R2439 D-11
R2440 D-12
R2441 D-12
R2442 D-13
R2445 D-13
R2446 E-13
R2927 B-14
