DCR-TRV8/TRV8E/TRV10/TRV10E
C
BE
5
64
2
13
3
21
VC-217 (FOCUS/ZOOM MOTOR DRIVE, CAMERA, BLOCKING COMPRESS, VIDEO INTERFACE, DV PROCESS, REC/PB HEAD AMP,
VIDEO IN/OUT, MECHANISM CONTROL, SERVO, HI CONTROL, AUDIO) PRINTED WIRING BOARD
— Ref. No. VC-217 Board; 10,000 Series —
DD-123 (DC/DC CONVERTER)
PD-110
RGB DECODER, LCD,
TIMING GENERATOR
SE-94 (MF DIAL)
INVERTER TRANSFORMER UNI
VC-217
FOCUS/ZOOM MOTOR DRIVE,
CAMERA, BLOCKING COMPRESS,
VIDEO INTERFACE, DV PROCESS,
REC/PB HEAD AMP, VIDEO IN/OUT,
MECHANISM CONTROL, SERVO,
HI CONTROL, AUDIO
4-49 4-50
CAMERA, BLOCKING, VIDEO INTERFACE, DV PROCESS, REC/PB HEAD AMP, MECHA CONTROL, SERVO, HI CONTROL, AUDIO
VC-217
For printed wiring boards
• This board is eight-layer print board. However, the pat-
terns of layers two to seven have not been included in
the diagram.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.

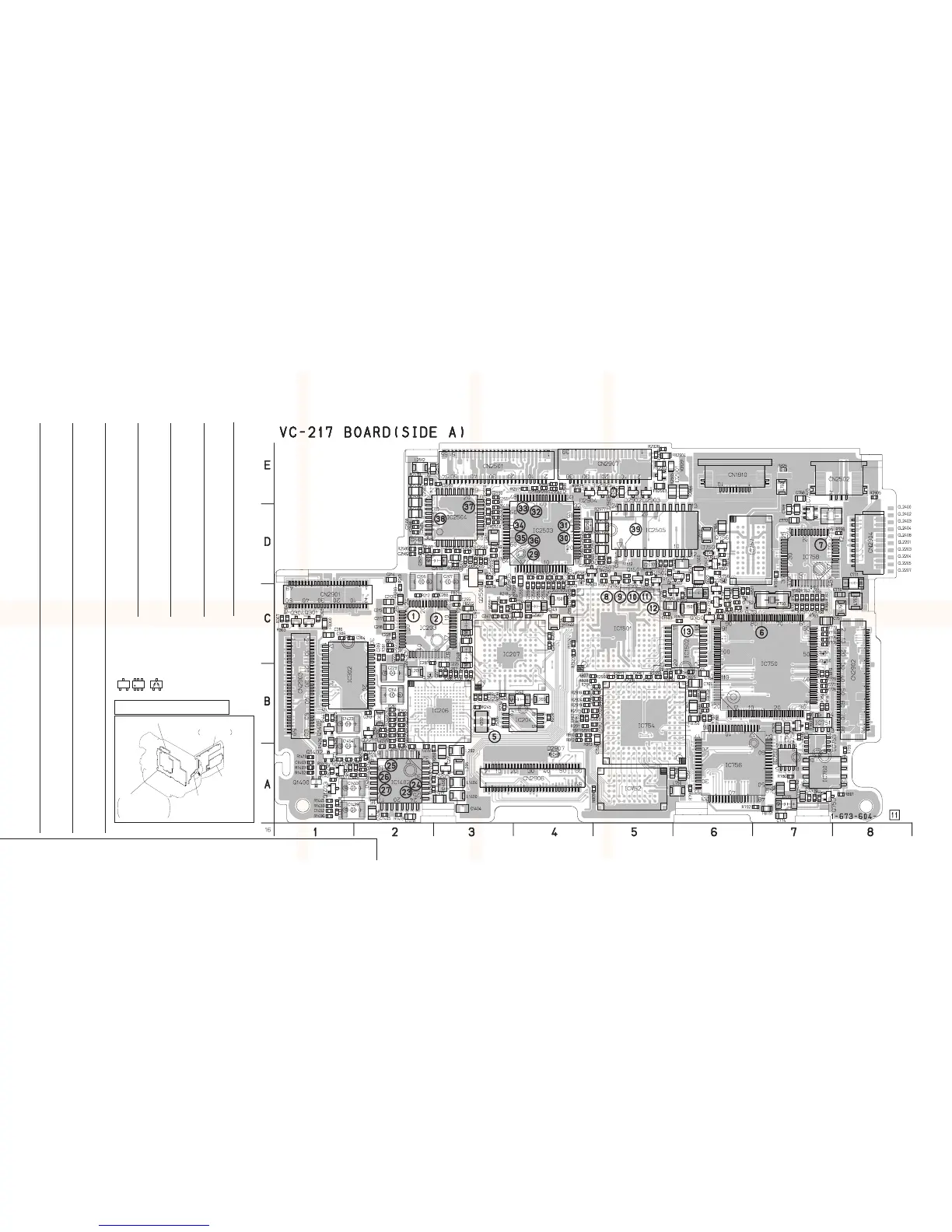

VC-217 BOARD (SIDE A)
C205 D-2
C207 D-3
C212 C-2
C214 D-2
C215 C-2
C217 C-2
C218 C-2
C220 C-2
C222 C-2
C223 C-2
C224 C-2
C225 B-3
C226 B-3
C227 B-3
C228 C-2
C229 B-2
C231 A-3
C232 A-2
C239 B-2
C240 B-4
C241 B-3
C242 C-4
C243 C-4
C244 C-4
C245 A-2
C246 B-2
C247 C-3
C248 C-3
C249 C-3
C255 C-3
C256 C-4
C257 C-2
C263 C-3
C264 C-4
C265 C-3
C266 B-2
C304 C-1
C306 C-1
C309 C-2
C313 B-2
C314 B-2
C316 C-1
C750 B-7
C751 A-6
C753 B-5
C754 B-6
C755 C-6
C756 C-6
C757 C-7
C759 A-5
C760 B-6
C761 B-6
C762 A-7
C763 B-7
C764 D-6
C766 A-7
C768 E-7
C769 D-7
C770 C-8
C771 C-8
C772 D-7
C773 A-7
C774 A-7
C775 A-7
C776 A-7
C1401 A-3
C1402 A-2
C1403 A-1
C1404 A-3
C1405 A-2
C1409 A-3
C1418 A-2
C1422 A-2
C1423 B-1
C1433 A-2
C1434 B-1
C1436 A-2
C1438 A-2
C1439 A-1
C1449 A-1
C1450 A-3
C1451 A-2
C1452 A-1
C1453 A-1
C1454 A-1
C1503 C-5
C1505 B-6
C1506 C-4
C1507 C-4
C1512 C-6
C1513 C-5
C2500 D-3
C2507 D-3
C2533 D-4
C2546 D-3
C2550 D-3
C2551 E-3
C2552 D-3
C2554 C-4
C2555 D-4
C2556 C-4
C2557 C-4
C2558 D-4
C2559 D-4
C2561 D-4
C2562 D-4
C2563 D-4
C2564 D-4
C2565 D-3
C2566 D-3
C2567 D-6
C2569 D-5
C2570 D-3
C2572 D-3
C2573 D-3
C2574 E-2
C2575 D-2
C2576 D-5
C2577 D-5
C2579 D-5
C2582 D-2
C2583 D-2
C2585 D-2
C2586 D-2
C2587 E-2
C2588 D-2
C2589 E-3
C2590 E-3
C2591 D-3
CN902 B-8
CN1810 E-6
CN2501 E-3
CN2502 E-8
CN2901 C-1
CN2903 B-1
CN2904 D-8
CN2906 A-4
D750 D-6
D2901 E-5
D2902 E-5
D2903 E-5
D2904 E-4
D2905 E-5
D2906 E-5
D2907 A-4
FB202 C-3
FB203 C-2
FB204 C-3
FB209 C-3
FB210 C-3
FB300 C-1
FB750 B-6
FB751 A-7
FB752 B-6
FB1501 C-6
FB2901 E-5
FB2902 E-5
FB2903 E-5
FB2904 E-5
IC203 C-2
IC204 B-4
IC206 B-3
IC207 C-3
IC302 B-1
IC750 B-7
IC751 B-7
IC752 A-5
IC753 A-7
IC754 B-5
IC755 A-7
IC756 A-6
IC757 D-6
IC758 D-7
IC759 D-7
IC760 A-7
IC1402 A-2
IC1501 C-5
IC1502 C-6
IC2503 D-4
IC2504 D-3
IC2505 D-5
L201 B-2
L202 A-3
L203 B-4
L204 C-4
L205 A-3
L302 B-2
L750 A-6
L751 C-8
L752 E-7
L753 C-8
L1400 A-3
L1404 A-3
L1500 D-6
L1501 C-6
L1601 C-4
L2511 D-3
L2512 E-2
L2513 D-6
Q205 A-3
Q301 C-1
Q304 C-1
Q750 C-6
Q751 C-6
Q752 C-6
Q753 A-7
Q754 B-7
Q755 D-6
Q756 D-6
Q1400 A-1
Q1402 A-1
Q1403 A-1
Q1405 B-1
Q1406 A-1
Q1500 D-5
Q1501 D-5
Q1502 D-5
Q1503 C-5
Q1504 D-6
Q2219 B-2
Q2505 D-3
Q2506 D-3
Q2507 D-4
R204 B-2
R207 B-3
R208 B-3
R209 B-3
R210 B-3
R212 C-2
R213 C-2
R218 C-3
R230 B-4
R234 B-3
R236 B-3
R237 B-3
R238 B-3
R245 B-3
R246 B-2
R256 A-2
R258 C-3
R259 C-3
R260 A-2
R261 B-2
R262 B-2
R263 B-2
R264 A-2
R266 B-2
R285 C-3
R286 B-3
R288 B-3
R294 B-2
R295 B-2
R296 B-2
R297 B-2
R298 B-2
R299 B-2
R301 C-2
R303 C-1
R304 C-1
R305 C-1
R307 C-1
R752 B-4
R753 C-6
R754 C-6
R756 C-6
R757 C-6
R758 C-6
R759 C-6
R760 B-6
R761 C-7
R762 C-7
R763 C-7
R764 C-7
R765 C-7
R766 C-7
R767 C-7
R768 C-7
R769 C-7
R770 C-7
R771 C-7
R772 C-7
R773 C-7
R774 C-7
R775 C-7
R776 C-7
R777 B-7
R778 B-7
R779 B-7
R780 B-7
R781 B-7
R782 B-7
R783 B-7
R785 B-7
R786 A-7
R787 B-6
R788 B-6
R791 A-6
R792 A-7
R793 D-7
R794 D-7
R795 A-7
R796 D-8
R798 A-7
R799 A-8
R801 A-8
R802 B-4
R803 B-6
R804 B-6
R805 B-5
R806 B-5
R807 B-4
R808 B-4
R809 A-4
R810 B-4
R811 B-4
R812 B-4
R813 B-4
R814 D-6
R815 D-6
R816 B-6
R817 B-6
R818 B-7
R819 B-7
R820 C-6
R821 C-6
R822 D-6
R823 D-6
R825 E-7
R1400 A-1
R1401 A-1
R1402 A-1
R1403 A-1
R1410 A-1
R1414 A-2
R1418 A-2
R1419 A-1
R1421 A-1
R1425 B-1
R1426 B-1
R1430 A-1
R1432 A-2
R1433 A-1
R1434 A-1
R1438 A-1
R1439 A-2
R1440 A-1
R1445 A-1
R1446 A-1
R1447 B-1
R1496 A-1
R1497 A-2
R1498 A-2
R1507 D-5
R1508 D-5
R1509 D-5
R1510 D-5
R1511 D-5
R1512 D-5
R1513 D-5
R1514 C-5
R1515 D-5
R1516 D-5
R1517 D-6
R1518 C-6
R1519 C-6
R1521 C-5
R1522 C-4
R1523 C-4
R1524 C-4
R2505 D-3
R2506 D-3
R2507 D-3
R2508 D-3
R2509 D-4
R2510 C-4
R2511 D-3
R2517 E-3
R2530 D-3
R2531 E-2
R2532 E-2
R2533 E-2
R2534 E-2
R2546 D-4
R2547 C-4
R2549 D-3
R2550 D-3
R2551 D-3
R2552 C-4
R2553 C-4
R2554 D-4
R2556 E-4
R2557 E-4
R2559 E-4
R2560 E-4
R2564 E-6
R2565 E-5
R2566 D-4
R2567 D-4
R2568 D-4
R2569 D-3
R2570 E-3
R2571 E-4
R2572 D-3
R2573 D-3
R2574 D-5
R2575 D-5
R2576 D-5
R2577 D-5
R2578 D-3
R2579 D-3
R2582 D-4
R2583 D-4
R2585 D-2
R2586 E-4
R2587 D-2
R2599 D-2
R2905 E-8
R2906 B-5
R2907 B-5
R2908 B-5
R2909 B-5
R2910 B-5
R2911 B-4
R2912 B-5
R2913 B-5
R2914 B-5
R2915 B-4
R2916 B-5
R2917 B-5
R2918 B-4
R2919 B-4
R2920 B-5
R2921 B-5
R2922 B-5
R2923 B-5
R2924 B-4
R2925 B-6
R2926 E-5
R2928 E-5
R2929 E-4
VDR291 E-5
X202 B-3
X750 C-7
X751 D-7
