DCR-TRV8/TRV8E/TRV10/TRV10E
4-45 4-46 4-47

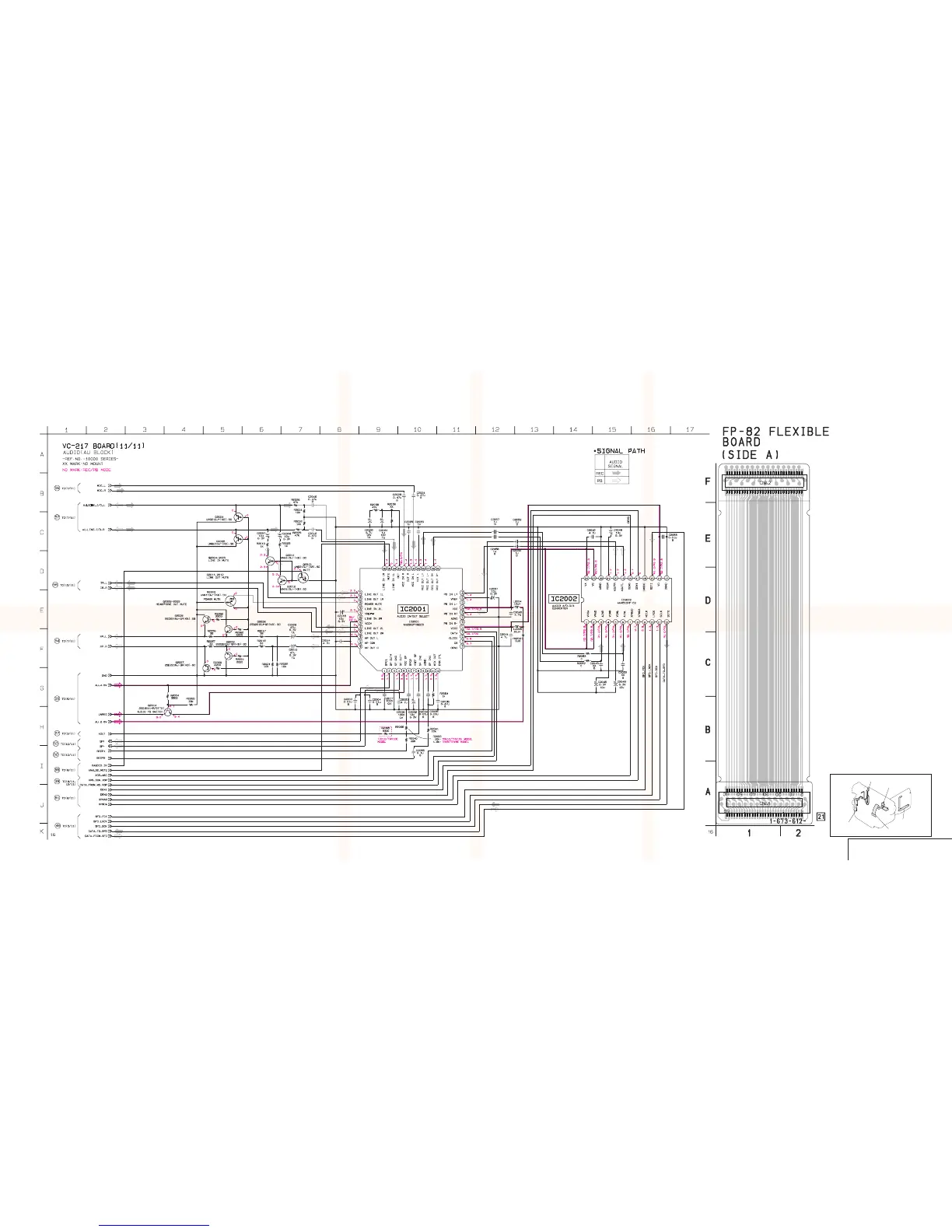

FP-82 (VC-CK CONNECT) PRINTED WIRING BOARD
— Ref. No. FP-82 Flexible Board; 10,000 Series —
FP-90
(BRT, VOL CONTROL
)
FP-83 (CCD IMAGER)
CONTROL SWITCH BLOCK (CF4550)
CONTROL SWITCH
BLOCK (PS4550)
FP-82
AUDIO
VC-217 (11/11)
VC-CK CONNECT
FP-82
/
For schematic diagram
¥ Refer to page 4-48 for printed wiring board.
FP-82 BOARD
CN41 A-6
CN42 A-1
For printed wiring boards
• This board is two-layer print board. However, the pat-
terns of layers two have not been included in the dia-
gram.
