DCR-TRV8/TRV8E/TRV10/TRV10E
4-61 4-62 4-63 4-64

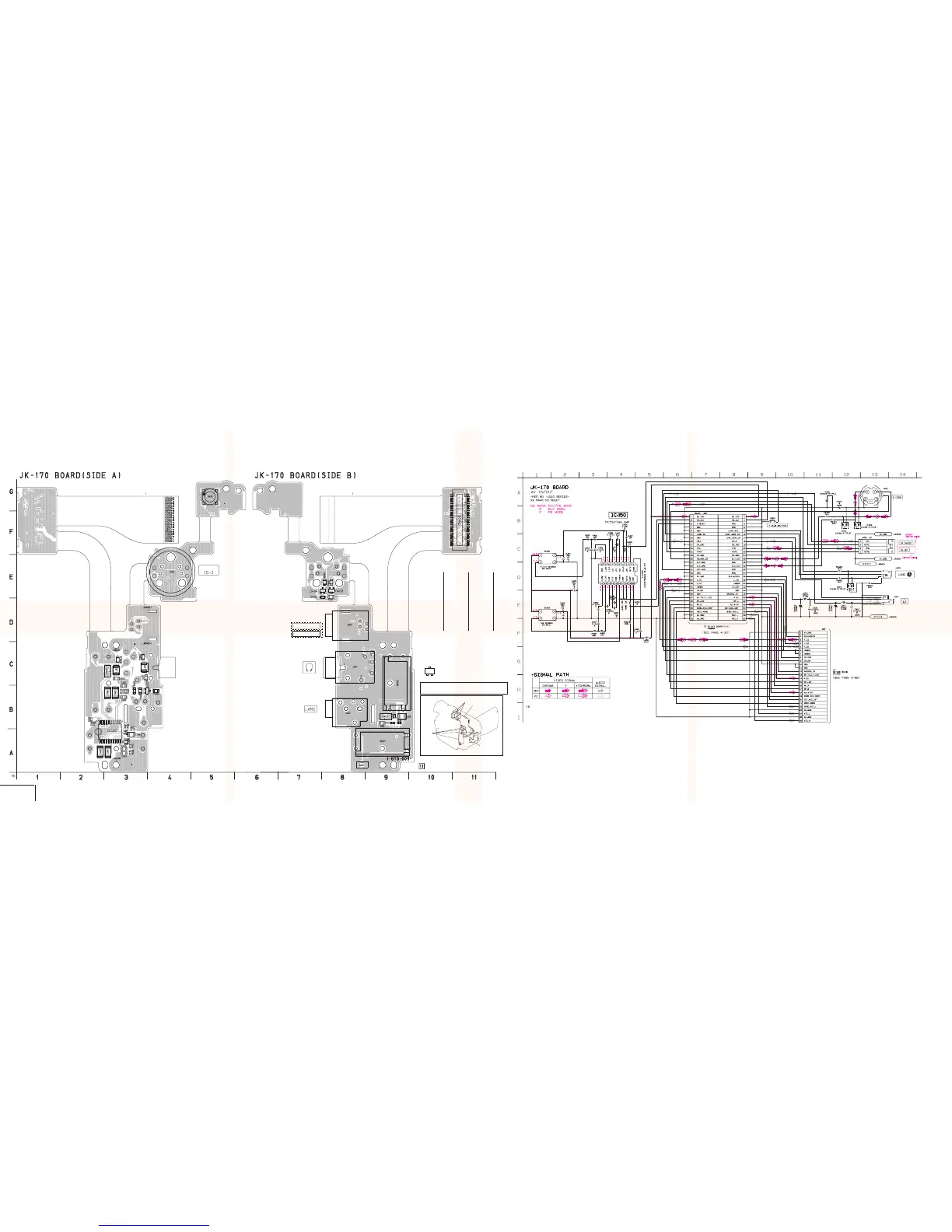

JK-170 (AV IN/OUT) PRINTED WIRING BOARD
— Ref. No. JK-170 Board; 1,000 Series —
CK-84 (FUNCTION SWITCH, IR)
JK-170
(AV IN/OUT)
LB-60 (BACK LIGHT DRIVE)
MA-358
(MIC AMP, SIRCS IN)
AV IN/OUT
JK-170
JK-170 BOARD
C400 C-3
C401 C-3
C450 C-3
C451 A-8
C453 B-9
C454 A-3
C455 A-3
C456 B-9
C457 C-3
C458 B-6
C459 A-3
C460 B-6
C461 A-3
C462 B-6
C463 A-2
C464 A-3
C465 B-9
CN400 F-11
D401 B-6
D402 E-5
D403 E-5
D404 E-5
FB400 E-5
FB401 E-5
FB402 B-6
FB403 B-6
FB404 B-4
IC450 A-3
J400 E-4
J401 C-8
C
BE
S VIDEO
DV IN/OUT
DV OUT
EXCEPT AEP, UK
MODEL
AEP, UK
MODEL
J402 B-8
J403 D-8
L400 C-3
L401 C-3
L450 B-9
R404 D-8
R450 A-3
R451 A-3
R452 B-6
R453 B-6
R454 B-9
R455 A-3
R456 B-9
R457 B-6
R458 B-6
R459 B-2
R460 B-2
S400 G-5
SE450 C-9
SE451 A-9
VDR400 C-3
VDR401 C-3
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two to three have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
