6-12

DSC-F828

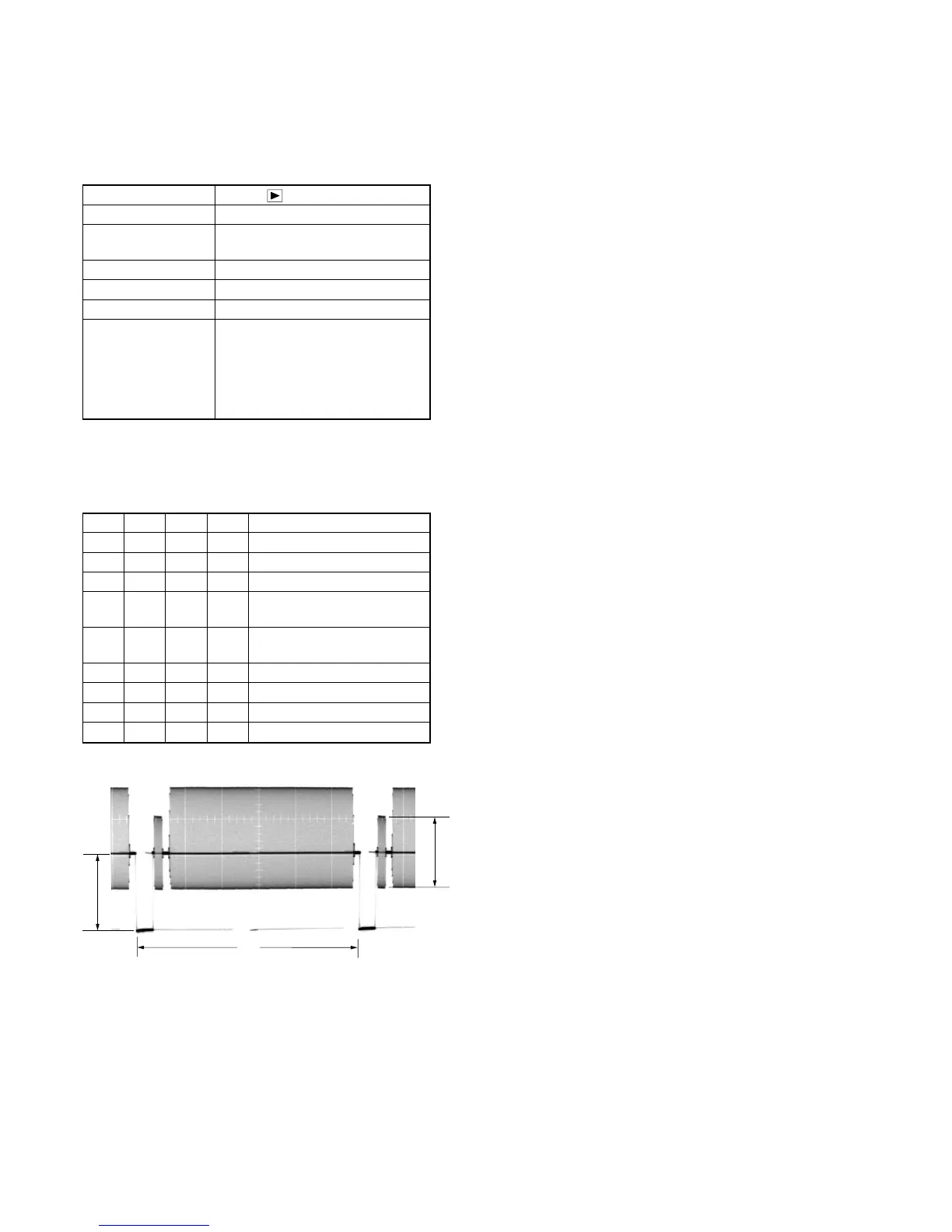

1-3. VIDEO SYSTEM ADJUSTMENTS

1. Video Output Level Adjustment (SY-096 board)

Adjust the sync level of the composite video signal output.

Mode PLAY ( )

Signal No signal

Measurement Point Video terminal of AV OUT jack

(75Ω terminated)

Measuring Instrument Oscilloscope

Adjustment Page 8F

Adjustment Address D0

Specified Value Sync level:

A=286 ± 5mV (NTSC mode)

A=300 ± 5mV (PAL mode)

Burst level:

B=286 ± 30mV (NTSC mode)

B=300 ± 30mV (PAL mode)

Switch setting:

VIDEO OUT (SETUP 2)......................................... (NTSC mode)

............................................ (PAL mode)

Adjusting method:

Order Page

Address

Data Procedure

1 00 01 01 Set the data.

260C1

Read the data, and check it is “01”.

3 80 70 01 Set the data.

4 8F D0 Change the data and set the sync

level (A) to the specified value.

5 Check that the burst level (B)

satisfies the specified value.

6 80 70 00 Write the data.

7 Save the data.

8 Wait for 2 sec.

9 00 01 00 Set the data.

Fig. 6-1-9.
