Sony DSC-F828 Adjustment

6-6
DSC-F828
H
A=
C=D
AAB
CD
Enlargement
V
Picture fram
e
A
Difference in level
Yellow
Cyan
Green
White
Magenta
Red
Blue
Yellow
Cyan
Green
White
Magenta
Red
Blue
Video terminal
output waveform
Fig. b
Fig. a
B
2
LCD screen or under scan
monitor TV picture
1-1-4. Precaution
1. Setting the Switch
Unless otherwise specified, set the switches as follows and perform
adjustments.
Switch settings
1. Mode dial ............................................. STILL (P AUTO) (P)
2. ZOOM ....................................................................WIDE end
3. MS/CF ..................................................... MS (Memory stick)
4. MACRO ( ) .................................................................. ON
5. WHITE BALANCE ..................................................... AUTO
6. EV ....................................................................................0EV
7. FOCUS......................................................................... AUTO
8. USB CONNECT (SET UP setting) .......................NORMAL
9. VIDEO OUT (SET UP setting) ....................................NTSC
2. Order of Adjustments
Basically carry out adjustments in the order given.

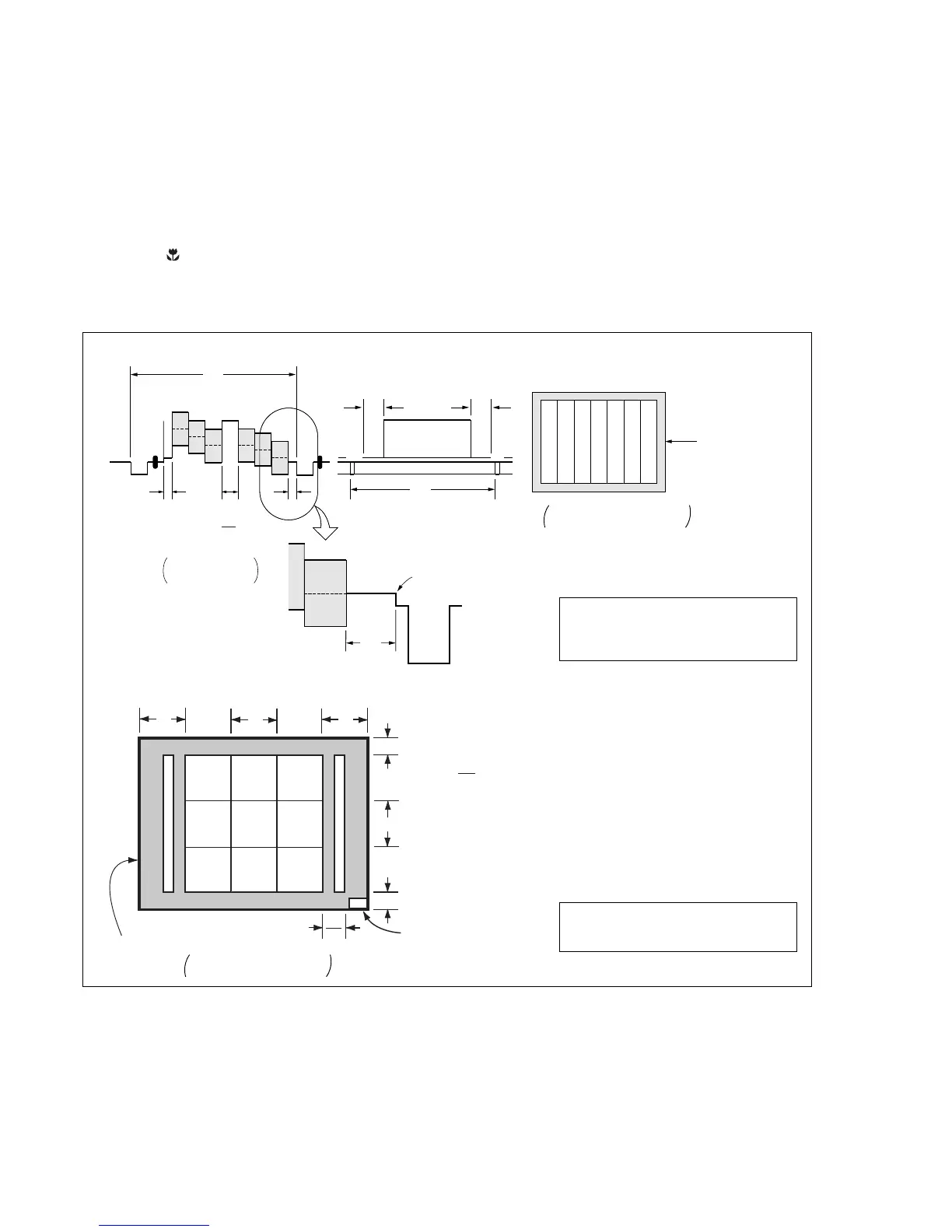

Fig.6-1-5.
3. Subjects
1) Color bar chart (Standard picture frame) (PTB-450)
When performing adjustments using the color bar chart, adjust
the picture frame as shown in Fig. 6-1-5. (Standard picture
frame)
2) 9 colors chart (Standard picture frame) (PTB-1450)
When performing adjustments using the 9 colors chart, adjust
the picture frame as shown in Fig. 6-1-5. (Standard picture
frame)
Color bar chart (Standard picture frame) (PTB-450)
Fig. c
LCD screen or under scan
monitor TV picture
A
C
C
Effective picture frame
White
Green
Yellow
W14
Red
Magenta
Cyan
Blue
B
C14
A
2
B
A
A = B
C14 : Filter for AWB 5800K adjustment
C =
B
3
Transparent window
Adjust the camera position and direction to
obtain the output waveform shown in Fig. a
and the LCD screen or the monitor TV
display shown in Fig. b.
Adjust the camera position and direction to
obtain the LCD screen or the monitor TV
display shown in Fig. c.
3) Clear chart (Standard picture frame)
(PTB-450/PTB-1450)
Remove the color bar chart (PTB-450) or 9 colors chart (PTB-
1450) from the pattern box and insert a clear chart in its place.
(Do not perform zoom operations during this time.)
9 colors chart (Standard picture frame) (PTB-1450)

Sony DSC-F828 Specifications

General

Sensor Type	CCD
Sensor Size	2/3 inch
Effective Pixels	8.0 megapixels
Lens	Carl Zeiss Vario-Sonnar T*
Optical Zoom	7x
Digital Zoom	2x
Shutter Speed	30 - 1/3200 sec
LCD Screen Size	1.8 inches
LCD Screen Resolution	134, 000 pixels
Viewfinder	Electronic
Dimensions	134 x 91 x 156 mm
Weight	906 g (including battery)
Image stabilization	No
Release date	2003
Focal Length	7.1 - 51 mm (35mm equivalent: 28 - 200 mm)
Maximum Aperture	f/2.0-2.8
Storage Media	CompactFlash, Memory Stick
Battery Type	NP-FM50 InfoLithium
ISO Sensitivity	100, 200, 400
