6-25
DSC-F828
1-5-3. Adjusting Method
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during EVF Adj.
2. EVF Initial Data Input
3. VCO Adj.
4. Bright Adj.
5. Contrast Adj.
6. V-COM Adj.
7. White Balance Adj.
8. Release of Data Setting during EVF Adj.
[Adjusting method]
1) Click the [EVF Adjustment Start] button.
2) The Automatic Adjustment Program executes the items from
“1. Data Setting during EVF Adj.” to “6. V-COM Adj.”.
3) Upon completion of “6. V-COM Adj.”, “7. White Balance Adj.”
is executed. The following message is displayed, and then check
that EVF screen is not colored.
If colored, change the data of page: 8F, address: 78 and 7A on
the SEUS Operation screen to adjust so that the EVF screen is
not colored.
Fig. 6-1-61
4) If the [OK] button is clicked, “8. Release of Data Setting dur-
ing EVF Adj.” will be executed.
5) Upon successful completion of all items the EVF adjustment,
the following message is displayed. Click the [OK] button.
Fig. 6-1-62

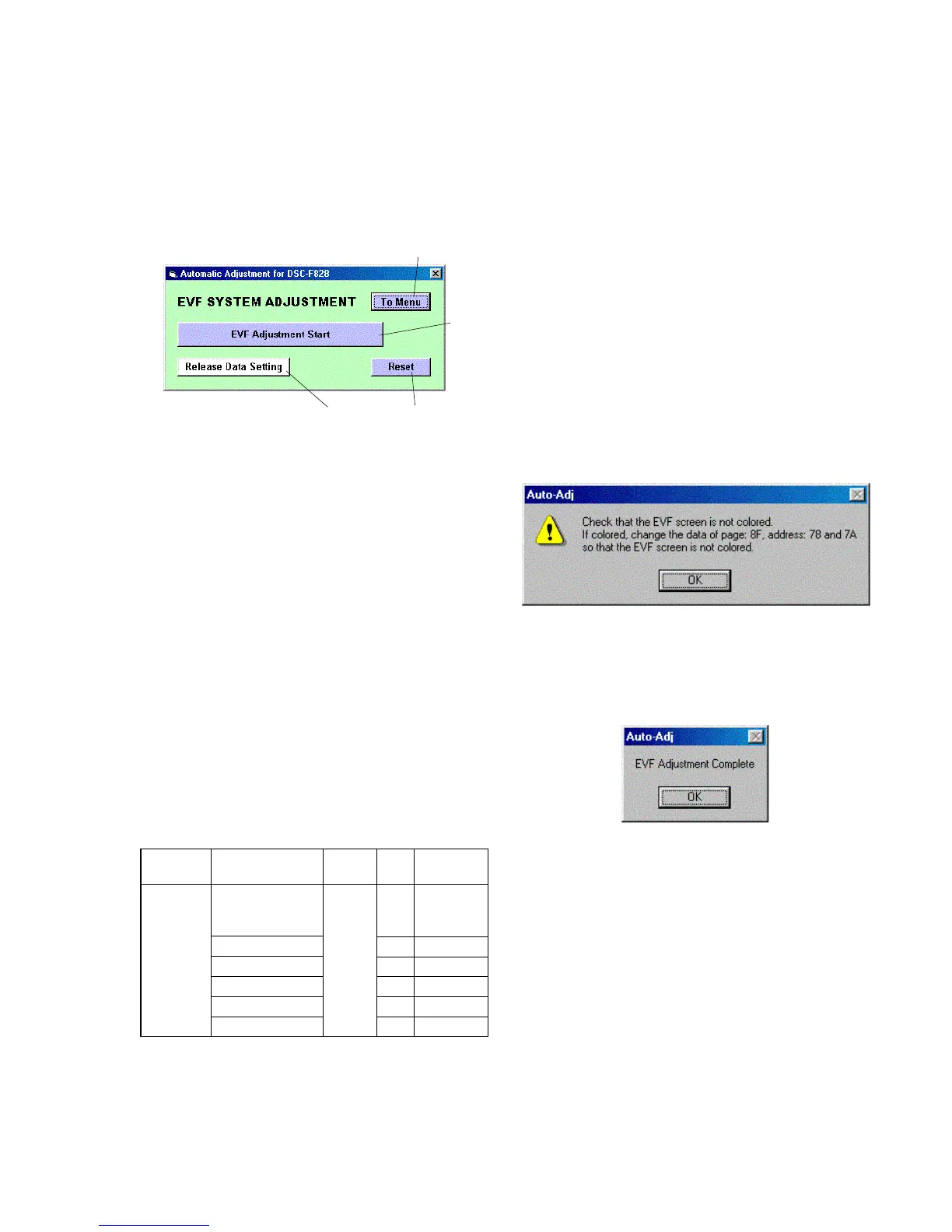

1-5. EVF SYSTEM ADJUSTMENTS
1-5-1. Function of Each Button on EVF System
Adjustment Screen
Click the [EVF SYSTEM ADJUSTMENT] button on the Main
Menu screen, and the “EVF SYSTEM ADJUSTMENT” screen in
Fig. 6-1-60 will appear.
Fig. 6-1-60
1 [To Menu] button
The Main Menu screen comes back.
2 [EVF Adjustment Start] button
“EVF Adjustment” starts.
3 [Reset] button
This button functions same as the Reset button of the camera.
4 [Release Data Setting] button
The data setting at the adjustment is cancelled.
During the data setting, the button color changes from “white”
to “red”. When the data setting is cancelled, the button color
returns to “white”.
(Use this button when an error occurred in the EVF adjust-
ment. If the adjustment completed successfully, the data set-
ting is automatically cancelled and the button color returns to
“white”.)
43
2
1
1-5-2. Adjustment Items of EVF System Adjustment
The adjustment items of EVF system adjustment are as listed in
Table 6-1-4. The Automatic Adjustment Program executes the ad-
justment items if the EVF Adjustment Start button is clicked.
Button
Adjustment Signal Page Address
Name
EVF Initial Data 8F
70, 71,
Input
73 to 78,
7A, 7C
EVF
VCO adj. 8F 73
Adjustment Bright adj.
Arbitrary
8F 75
Contrast adj. 8F 7C
V-COM adj. 8F 74
White Balance adj. 8F 78, 7A
Table 6-1-4
To Next Page
