Sony DSC-F828 Adjustment

6-3
DSC-F828
6-1. CAMERA SECTION ADJUSTMENT
1-1. PREPARATIONS BEFORE ADJUSTMENT

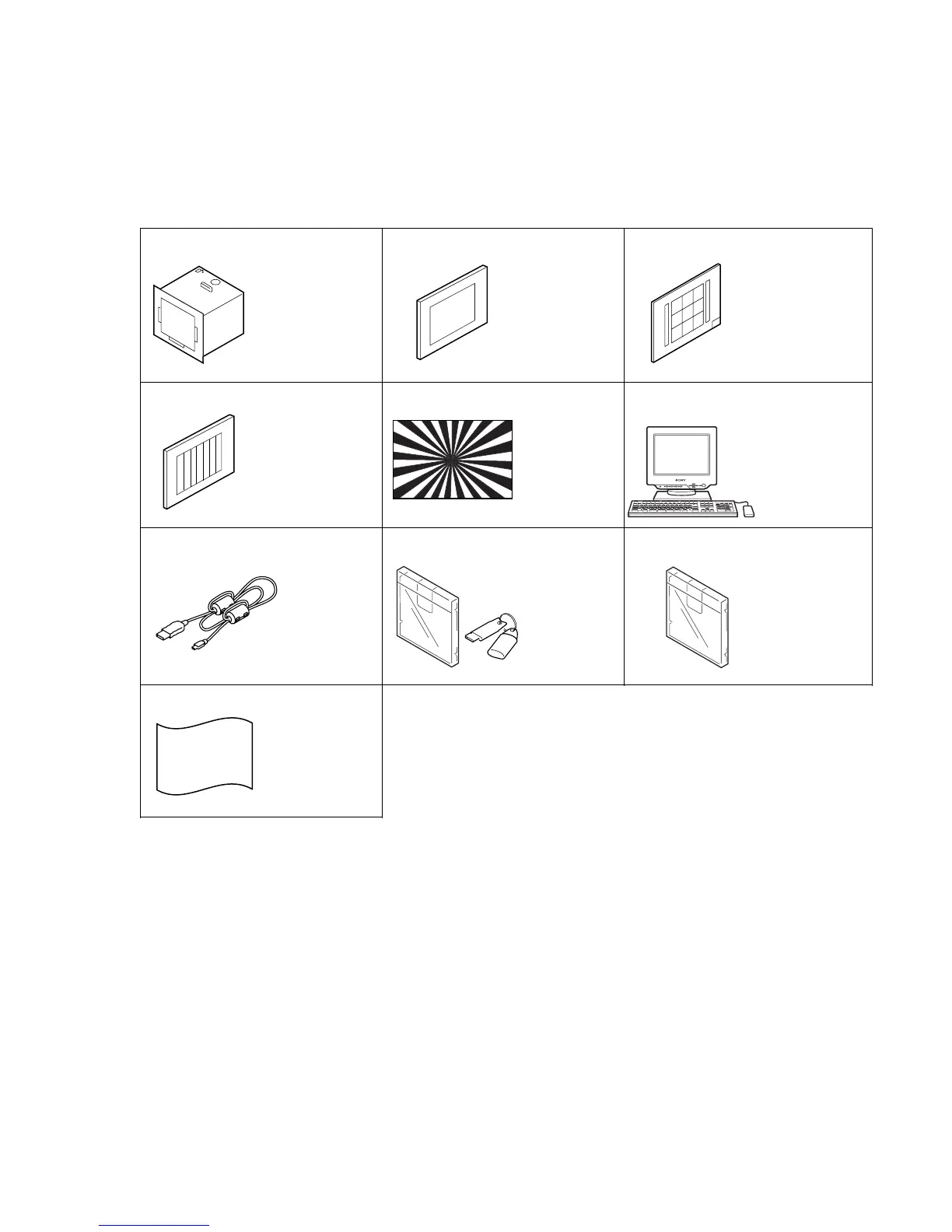

1-1-1. List of Service Tools
• Oscilloscope • Color monitor • Vectorscope • AC power adapter
• Calculator which can hexadecimal calculation
J-1 J-2 J-3
J-4
Pattern box PTB-1450
J-6082-557-A
or
Pattern box PTB-450
J-6082-200-A
Clear chart for
pattern box
For PTB-1450:
J-6082-560-A
For PTB-450:
J-6080-621-A
9 colors chart for
pattern box
For PTB-1450:
J-6082-562-A
Color chart for
pattern box
For PTB-1450:
J-6082-559-A
For PTB-450:
J-6020-250-A
J-5
J-6
Personal computer
with Widows98/
98SE/ME/2000/
XP installed
and with two USB
ports
Siemens star chart
J-6080-875-A
J-7 J-8
Application for
adjustment
(SEUS)
and HASP key
(Note)
USB cable
1-827-038-11
Fig. 6-1-1.
J-9
F828 C1 MATRIX
Adjustment
(Note)
Background paper
J-2501-130-A
Note: Contact our service headquarter of each area how to get the application
for adjustment (SEUS), HASP key and F828 C1 MATRIX Adjustment.
J-10
Ver 1.3 2004. 07
