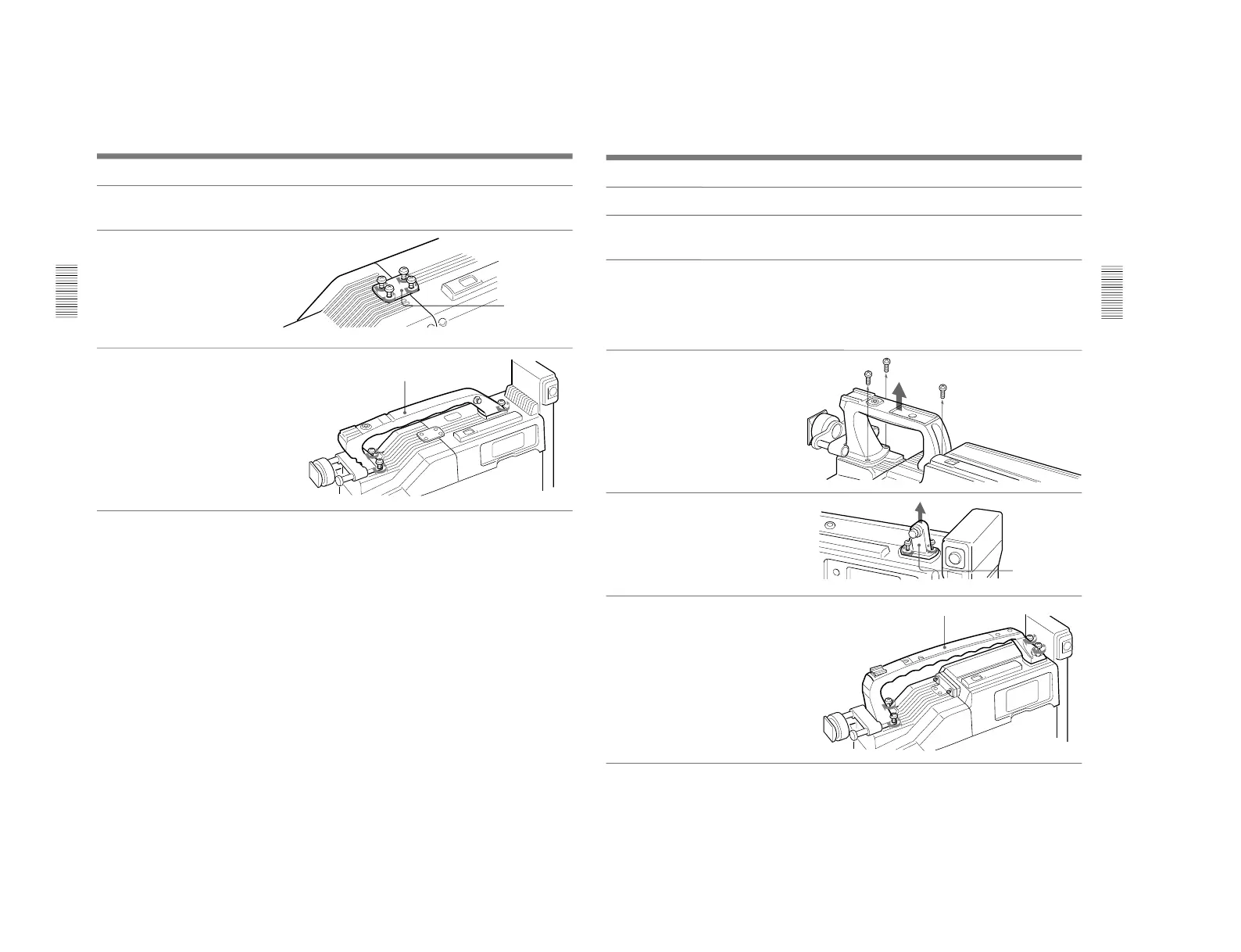

Fitting a VTR
5 Perform the first three steps in
“Fitting a VTR”.
6
Screw the connection plate
(supplied with the grip for the
DSR-130/130P) which
straddles the connection
between the camera head and
the DSR-1/1P.
7
Screw the grip for the DSR-
130/130P.
Connection plate
Grip for the DSR-130/130P
Chapter 2 Fitting and Connections
Chapter 2 Fitting and Connections
25
Attaching a camcorder grip to the PVV-3/3P.
1 Perform steps 2 and 3 in
“Fitting a VTR”.
2 If the viewfinder is attached,
adjust the viewfinder to the
full-forward position.
For details, see “Adjusting the
viewfinder position” on page 28.
3 Remove the grip’s three
screws, then pull up the grip to
remove it.
4 Remove the PVV-3/3P’s
shoulder strap fitting.
5 Screw the grip for the PVW-
D30/D30P.
Shoulder strap
fitting
Grip for the PVW-D30/D30P
