Chapter 2 Fitting and Connections
28
Chapter 2 Fitting and Connections

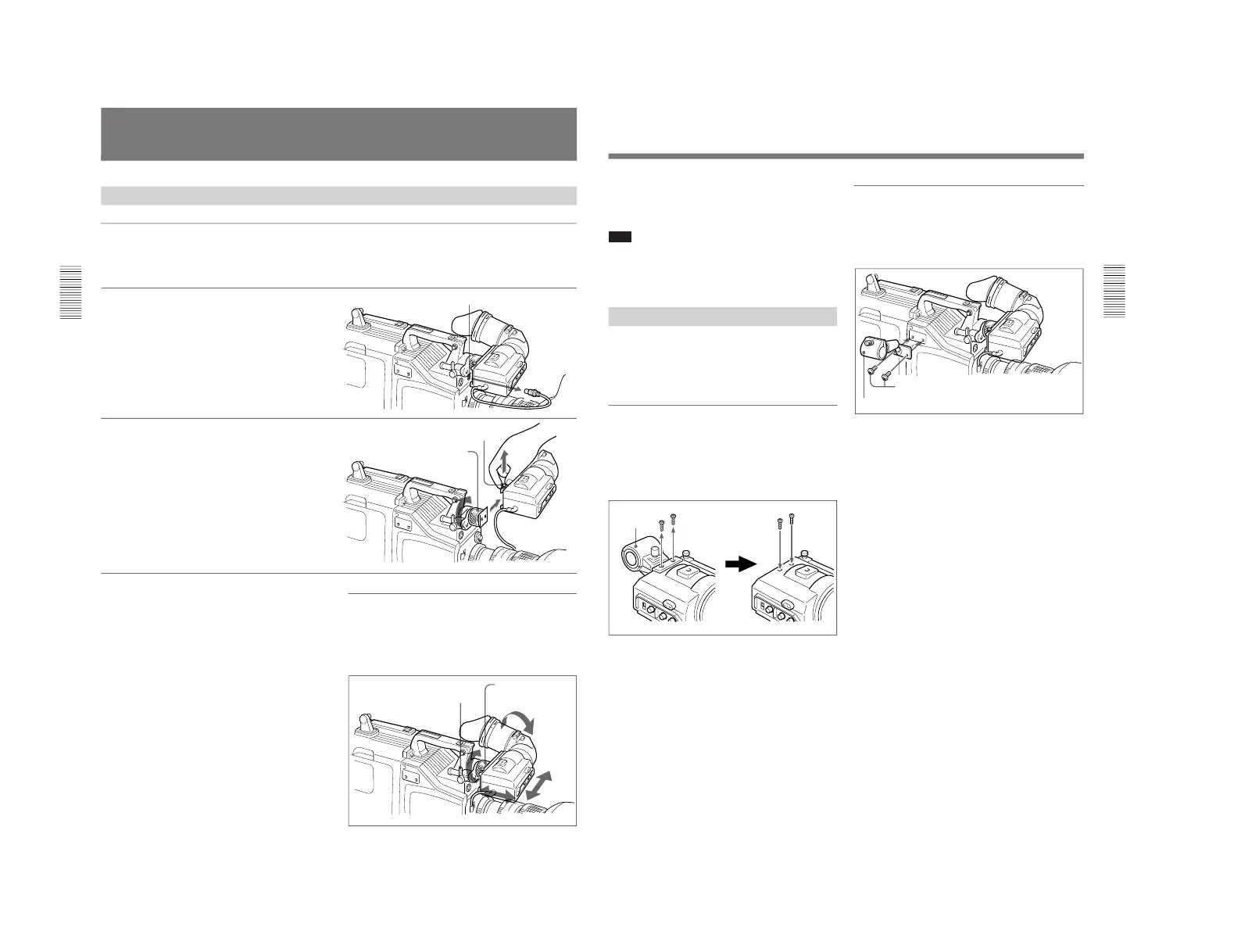

Using the Viewfinder
Removing the Viewfinder
Remove any microphone from the viewfinder before
beginning.
1
Pull the viewfinder connector
out of the VF connector on the
font of the camera head.
2
Loosen the viewfinder left-to-
right position fixing ring, then
pulling up the retaining catch,
slide the viewfinder out.
VF connector
Retaining catch
Viewfinder left-to-right
position fixing ring
To fit the viewfinder
Reverse the removal procedure.
Adjusting the viewfinder position
To adjust the viewfinder left-to-right position, loosen
the left-to-right fixing ring, and to adjust the front-to-
back position loosen the front-to-back position locking
catch.
Viewfinger front-to-back
position locking catch
Viewfinder left-to-right
position fixing ring
Using Accessories
Chapter 2 Fitting and Connections
Chapter 2 Fitting and Connections
29
Left eye adaptor
By fitting a left eye adaptor, you can use the camera
with your left eye to the viewfinder.
Note
You cannot stow the camera attached with a left eye
adaptor in the LC-421 Carrying Case.
For details, consult your Sony dealer.
Using an Optional Microphone
To use a long microphone such as the optional ECM-
670/672, remove the supplied microphone holder, and
fit an optional CAC-12 Microphone Holder to the
camera, then mount the microphone in this holder.
Removing the supplied microphone
holder
Remove the two microphone holder retaining screws
(M4 × 6) from the viewfinder, remove the microphone
holder, then replace the screws in their original
positions.
Fitting the optional CAC-12 Microphone
Holder
Remove the two retaining screws (M3 × 8) for the
optional microphone holder, then use these screws to
attach the CAC-12 Microphone Holder.
Screws removed from the camera
CAC-12
Microphone
holder
M4 × 6 crews
To Next Page
