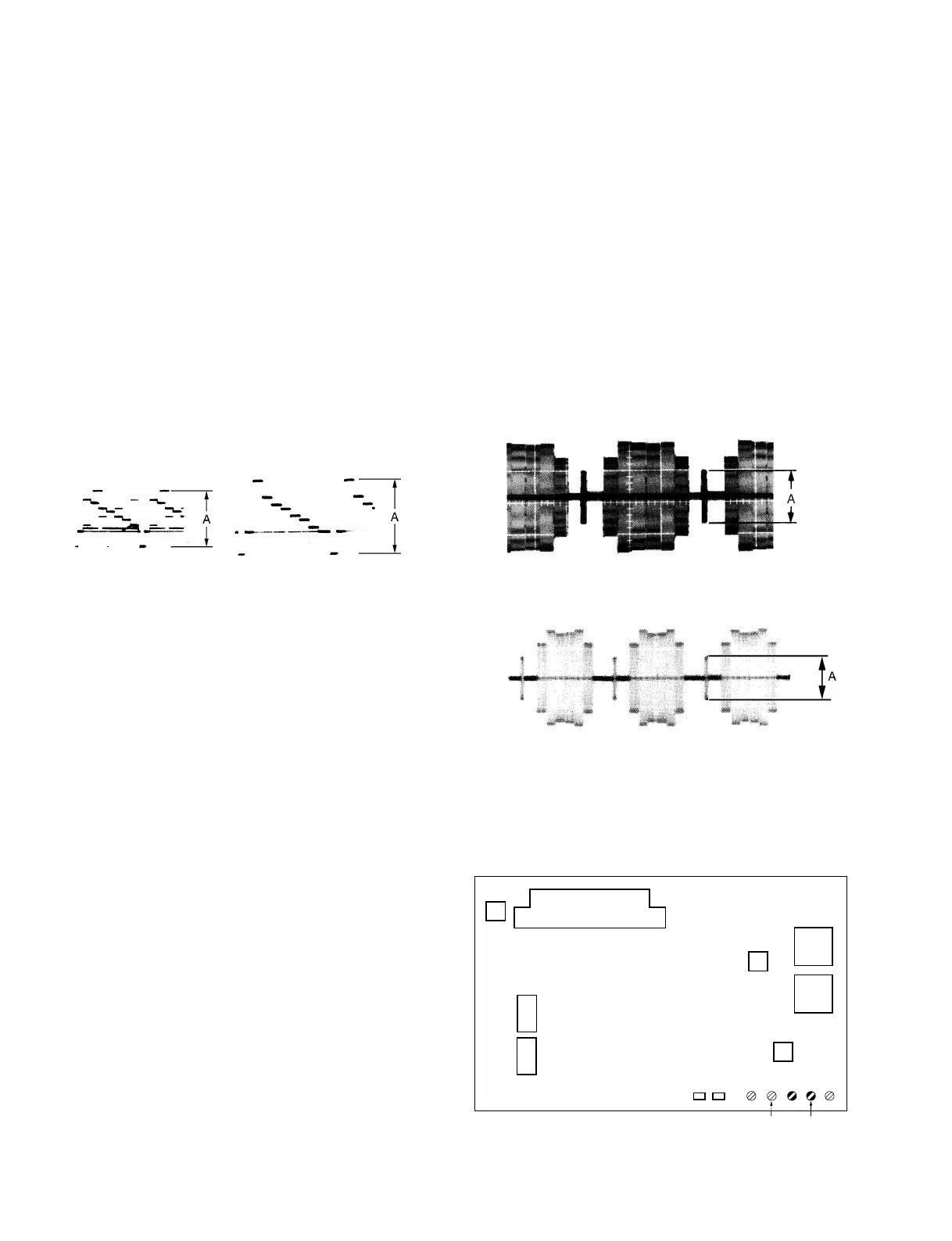

3-3-8. Y (YC) Level Adjustment
Note:
Be sure that “3-3-7. Y (VBS) Adjustment” is completed.
Equipment: Oscilloscope
To be extended: ES-12 board
Preparation: OUTPUT/DL/DCC + switch/camera side
→ BARS
Test point: TP66 (GND: TP67)/extension board
Trigger: HD (TP84/extension board)
Adjusting point: 1RV502 (Y LEVEL)/ES-12 board
Specification: [for NTSC] A = 1.00 ± 0.02 V
[for PAL] A = 1.00 ± 0.02 V
[for NTSC] [for PAL]
3-3-9. Chroma (YC) Level Adjustment
Equipment: Oscilloscope
To be extended: ES-12 board
Preparation: OUTPUT/DL/DCC + switch/camera side
→ BARS
Test point: TP64 (GND: TP65)/extension board
Trigger: HD (TP84/extension board)
Adjusting point: 1RV505 (CHROMA (YC) LEV)/ES-12
board
Specification: [for NTSC] A = 286 ± 10 mV
[for PAL] A = 300 ± 10 mV
[for NTSC]
[for PAL]
DL504
DL503
CN501
RV505
C (Y-C)
RV501
Y (VBS)
RV502
Y (Y-C)
FL502
RV504
C (VBS)
RV503
B-Y LEV
FL502
E1
TP1
DL501
FL503
DL502
ES-12 BOARD -A SIDE-
