Sony DXC-D30P - Alignment; Preparation

DXC-D30 (UC)
DXC-D30P (CE)
3-1
3-1. PREPARATION
3-1-1. Equipment Required
• Digital voltmeter
• Oscilloscope (100 MHz or more)
• Vectorscope
• Waveform monitor
• B/W monitor (Sony PVM-91/122 or equivalent)
• Color monitor (Sony PVM-1320 or equivalent)
• AC Adaptor (Sony CMA-8/8A/8CE/8ACE)
• Camera Adaptor (Sony CA-537/537P)
• Frequency counter
• SC-H Phase Equipment
SECTION 3
ALIGNMENT

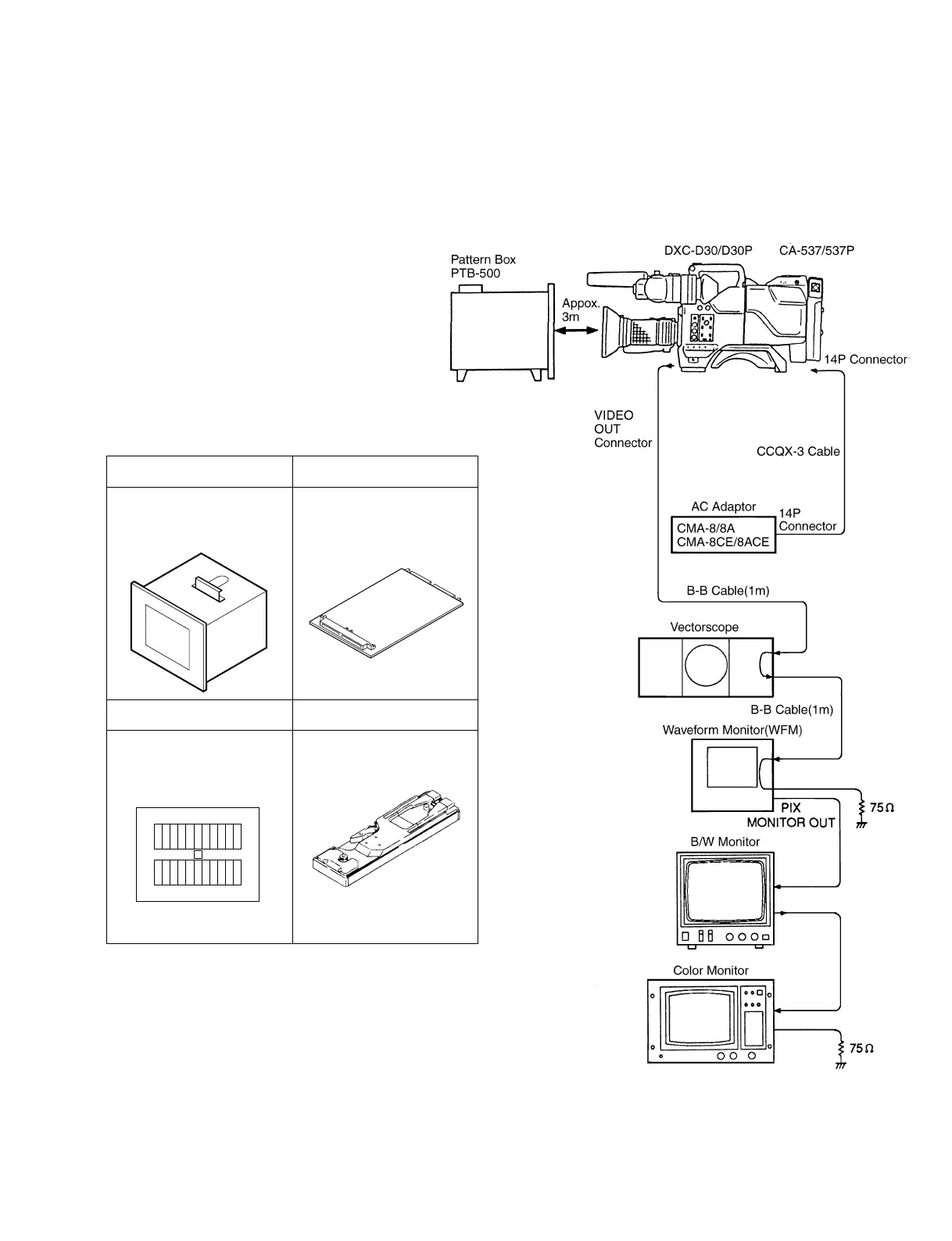

3-1-2. Connection
Pattern box PTB-500
Sony part number:
J-6029-140-B
• Light source for test chart
extension board EX-490
Sony part number:
J-6275-690-A
Grayscale chart Tripod Adaptor VCT-U14
Sony part number:
J-6026-130-B
