Sony DXC-D30P - Service Information; Board Layout; Removal of Cabinet; Removal of Side Plate

DXC-D30 (UC)
DXC-D30P (CE)
2-1
SECTION 2
SERVICE INFORMATION

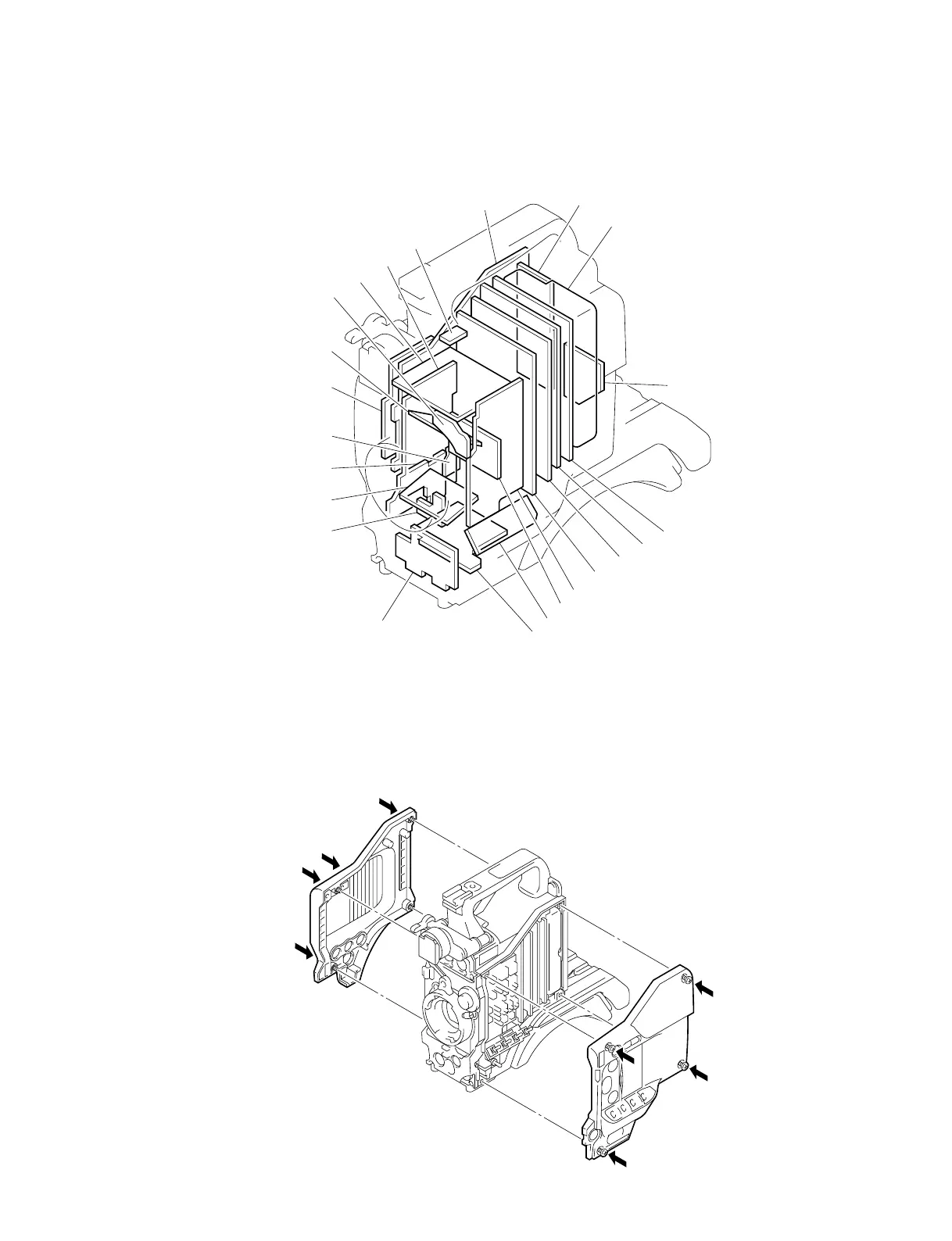

2-1. BOARD LAYOUT
2-2. REMOVAL OF CABINET
2-2-1. Removal of Side Plate
Loosen the four screws respectively to remove the side plates.
SW-791 board
PA-188(G) board
VA-169 board
PR-216 board
IF-532 board
BP-30 board
SW-793 board
SW-790 board
SW-792 board
DC-DC converter
CN-1294 board
MB-629 board
CN-1349 board
TG-175/175(P) board
CN-1195 board
SE-366 board
PA-187(B) board
AT-110 board
CN-1410 board
CN-1196 board
PA-189(R) board
CN-1194 board
ES-12/12(P) board
