Sony DXC-D30P - DC-DC Converter Voltage

DXC-D30 (UC)
DXC-D30P (CE)
2-9

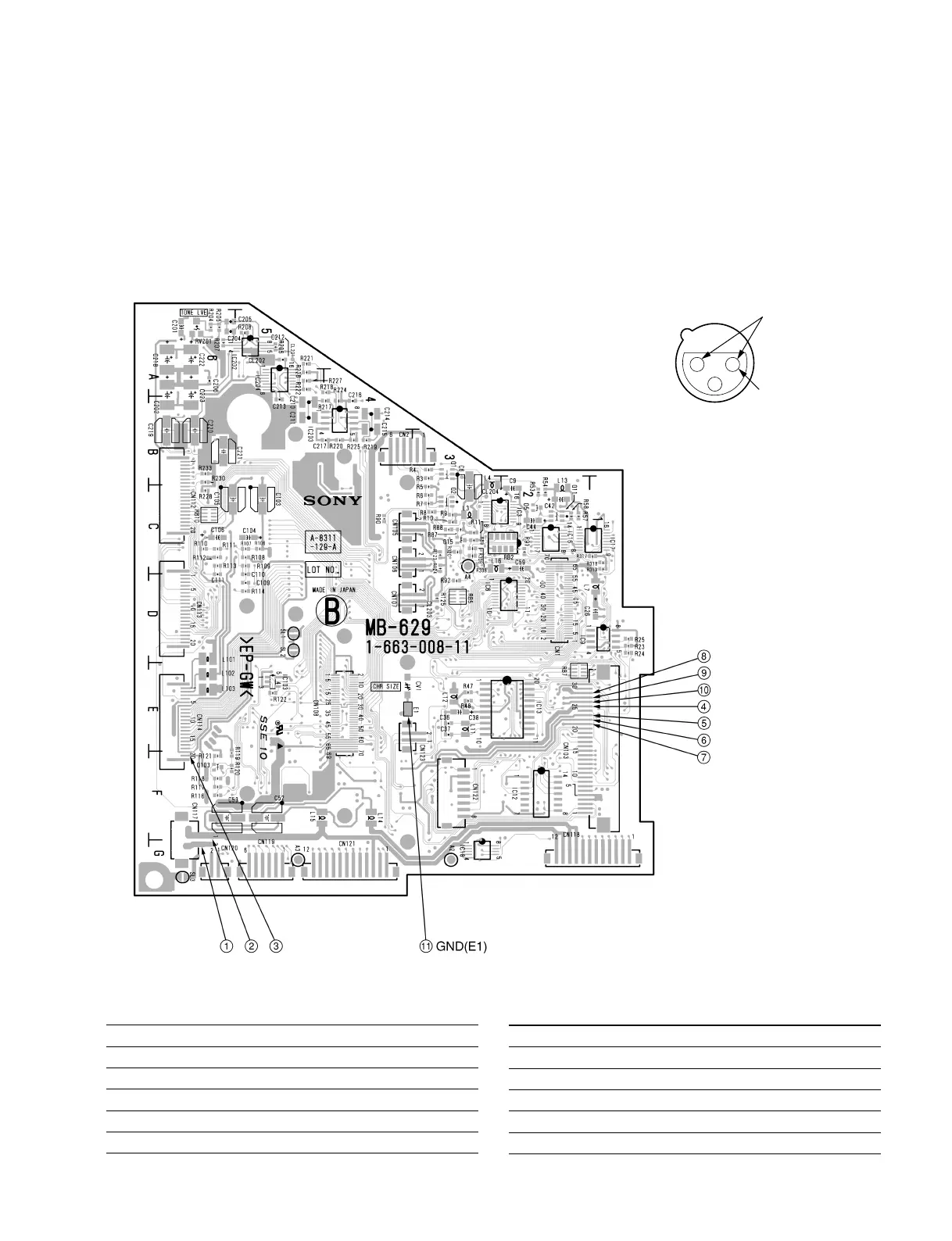

2-6. DC-DC CONVERTER VOLTAGE
Voltage values can be check as following 1 to != points on
MB-629 board and MIC connector.
No. CHECK POINT VOLTAGE VALUE
1 CN117-2pin 5WD EXT. DC OUT
2 CN117-1pin EXT. DC GND
3 CN114-20pin +3.1 V
4 CN103-25pin +5.3 V
5 CN103-23pin -5 V
6 CN103-22pin +9 V
No. CHECK POINT VOLTAGE VALUE
7 CN103-21pin -10 V
8 CN103-28pin +6.5 V
9 CN103-27pin +16 V
!/ CN103-26pin +32 V
!- E1(GND) ---
!= MIC 2pin/1pin(GND) +48 V
. MB-629 board
(EXTERNAL VIEW)
2 1
3
!=
GND.
. MIC connector
