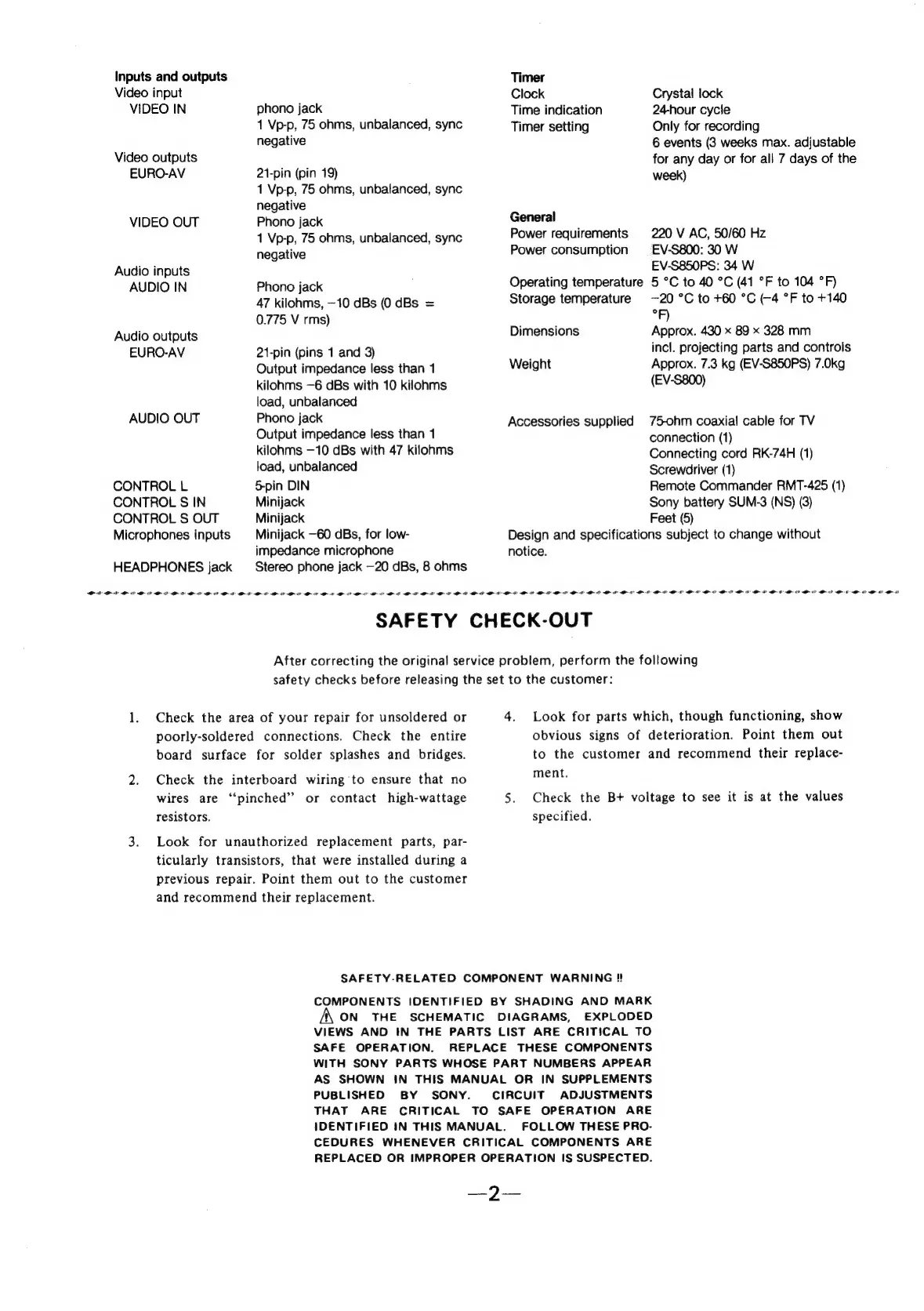

Sony EV-S800 - Page 2

Inputs and outputs Timer
Video input Clock Crystal lock
VIDEO IN phono jack Time indication 24-hour cycle
1 Vp-p, 75 ohms, unbalanced, sync Timer setting Only for recording
negative 6 events (3 weeks max. adjustable
Video outputs for any day or for all 7 days of the
EURO-AV 21-pin (pin 19) week)
1 Vp-p, 75 ohms, unbalanced, sync
negative
VIDEO OUT Phono jack General
1 Vp-p, 75 ohms, unbalanced, sync Power requirements 220 V AC, 50/60 Hz
negative Power consumption —_ EV-S800: 30 W
Audio inputs EV-S850PS: 34 W
AUDIO
IN
Phono
jack
Operating
temperature
5
°C
to
40
°C
(41
°F
to
104
°F)
47 kilohms, —10 dBs (0 dBs = Storage temperature -20 °C to +60 °C (-4 °F to +140
0.775 V rms) of)
Audio outputs Dimensions Approx. 430 x 89 x 328 mm
EURO-AV 21-pin (pins 1 and 3) incl. projecting parts and controls
Output
impedance
less
than
1
Weight
Approx.
7.3
kg
(EV-S850PS)
7.0kg
kilohms —6 dBs with 10 kilohms (EV-S800)
load, unbalanced
AUDIO OUT Phono jack Accessories supplied 75-ohm coaxial cable for TV
Output impedance less than 1 connection (1)
load, unbalanced Screwdriver (1)
CONTROL L 5-pin DIN Remote Commander RMT-425 (1)
CONTROL S IN Minijack Sony battery SUM-3 (NS) (3)
CONTROL S OUT Minijack Feet (5)
Microphones inputs Minijack —60 dBs, for low- Design and specifications subject to change without
impedance microphone notice.
HEADPHONES jack Stereo phone jack —20 dBs, 8 ohms
LA I NA A I I NE NN LM ALM LM AML ALND LA ILM LLM ALBARN LAN IN LN AMNESIA N NN AP A
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or 4. Look for parts which, though functioning, show
poorly-soldered connections. Check the entire obvious signs of deterioration. Point them out
board surface for solder splashes and bridges. to the customer and recommend their replace-
2. Check the interboard wiring to ensure that no ment.
wires are “pinched” or contact high-wattage 5. Check the B+ voltage to see it is at the values
resistors. specified.
3. Look for unauthorized replacement parts, par-
ticularly transistors, that were installed during a
previous repair. Point them out to the customer
and recommend their replacement.
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS
THAT ARE CRITICAL TO SAFE OPERATION ARE
IDENTIFIED IN THIS MANUAL. FOLLOW THESE PRO-
CEDURES WHENEVER CRITICAL COMPONENTS ARE
REPLACED OR IMPROPER OPERATION IS SUSPECTED.
