3b.1 : 3x Blinking – Audio Error

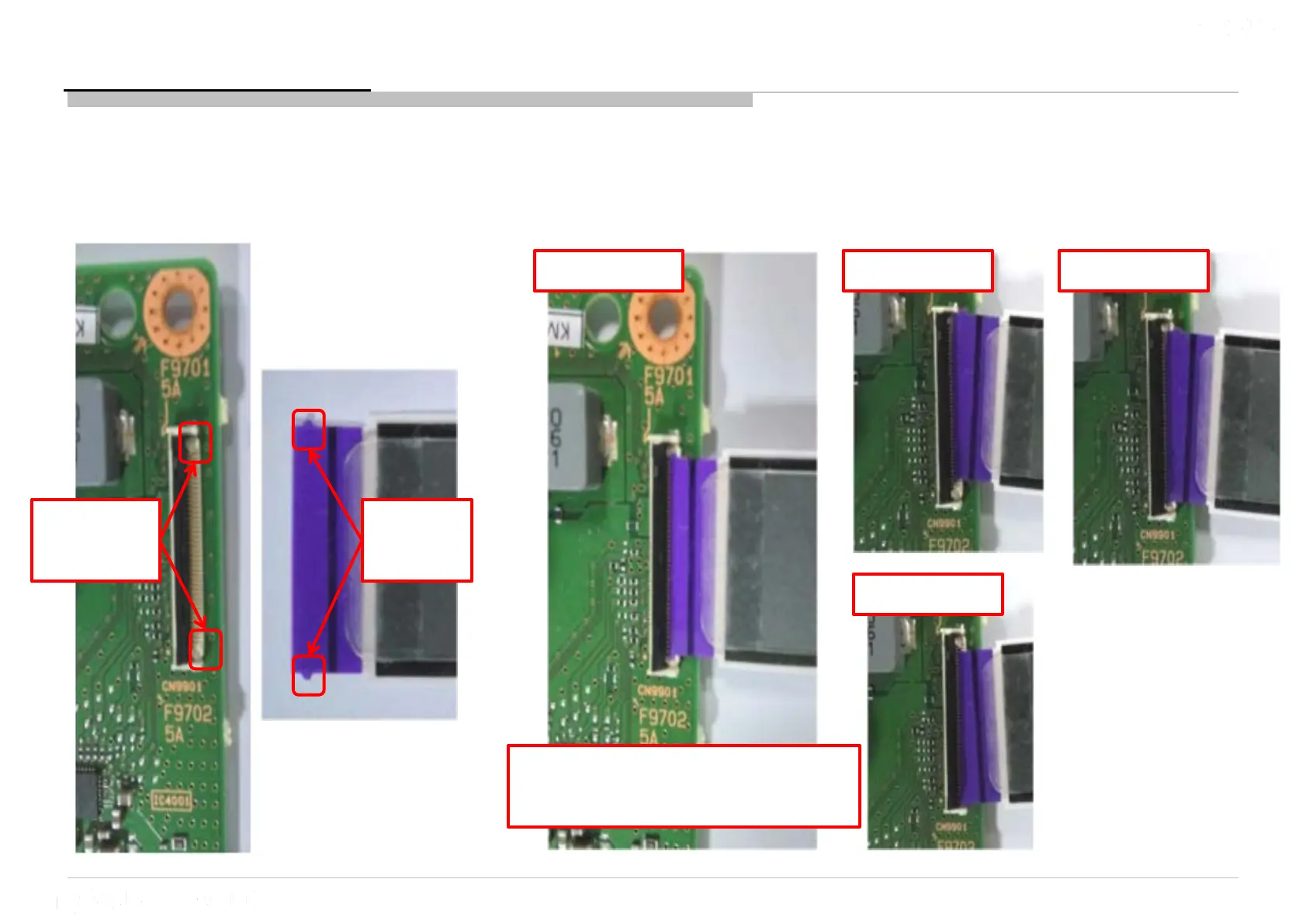

LK1/2 Board (FFC insertion)
Same apply to B-board FFC connector side
Guide at
FFC
Guide at
Connector
Important Note :
TV must be power OFF condition before
plug or unplug any of the FFC/FPC/wire
/cable from the board. -> This is to prevent
possibility circuit damage happen.
OK example NG example NG example
NG example
FFC guide need insert fully over
the connector guide
