HCD-BC150/BC250

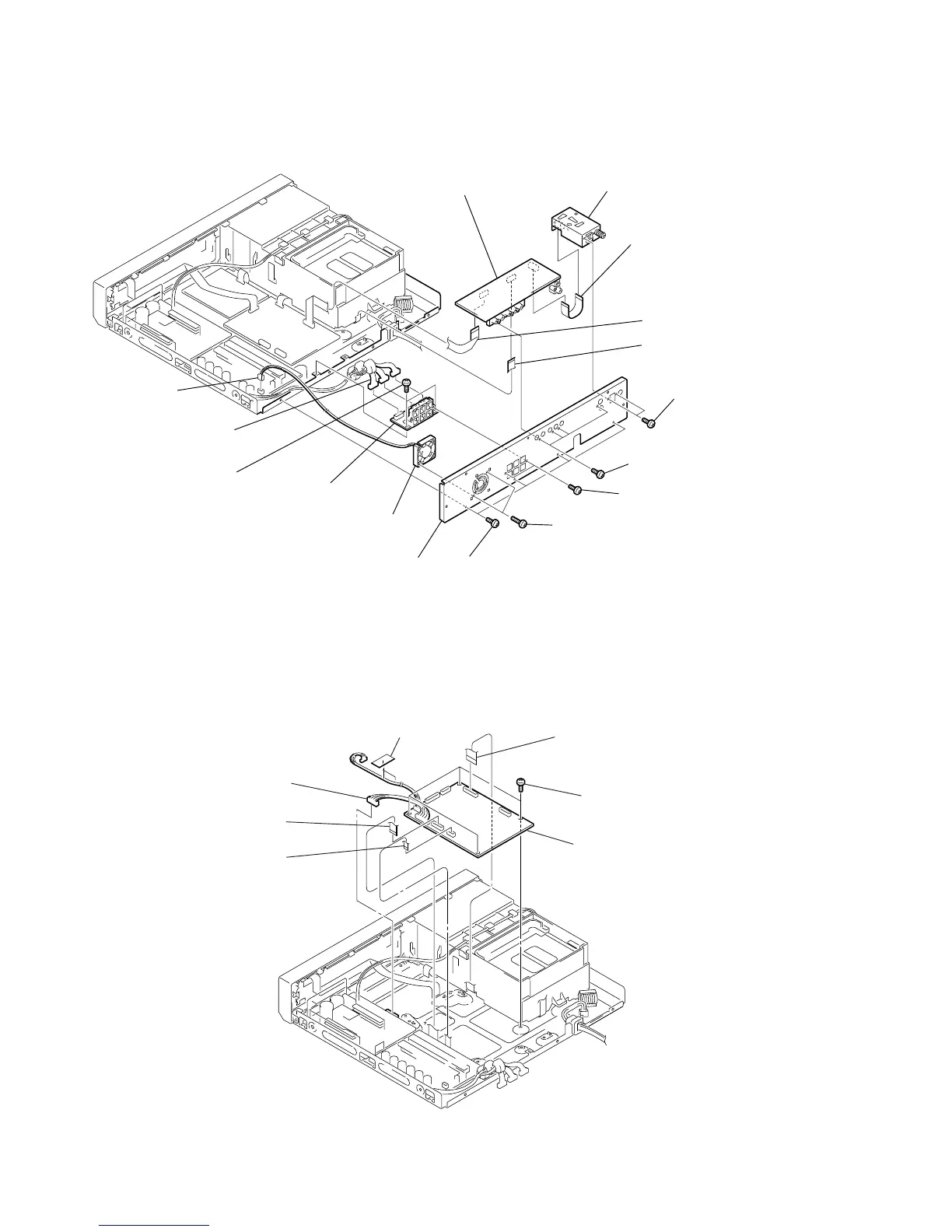

2-8. MAIN BOARD
5 four screws (+BV 3
)
tape
3 w ire (flat type)
9p(CN503)
2 w ire (flat type)
17p(CN504)
4 w ire (flat type)
21p(CN502)
6 MAIN BOARD
1 connector
(CN8)
2-7. SPK BOARD, IO BOARD, DC FAN
3 two screws (+BV 3)
qs w ire (flat type)
11p(CN200)
5 w ire (flat type) 17p(CN201)
6 w ire (flat type) 11p(CN202)
qg tuner
back panel
8 DC fan
qd IO BOARD
0 SPK BOARD
qf two tapping screws
(DIA.2.6
× 8)
qa four screws (BVTP 3 × 8)
4 four screws (BVTP 3 × 8)
9 two screws (BVTP 3 × 8)
7 two screws (BVTT 4 × 8)
1 connector
(CN300)
2 three connectors
(CN309, 311, 312)
