Sony HCD-BC150 - Chassis Section-2

62
HCD-BC150/BC250
– Continued from page 61 –
110 A-1054-641-A DMB07 BOARD, COMPLETE (E41)
110 A-4752-761-A DMB07 BOARD, COMPLETE
(150: US, CND/250)
111 A-1052-864-A MAIN BOARD, COMPLETE (150: MX)
111 A-1053-127-A MAIN BOARD, COMPLETE (AUS)
111 A-1054-637-A MAIN BOARD, COMPLETE (E41)
111 A-1062-037-A MAIN BOARD, COMPLETE (250: US, CND)
111 A-1065-470-A MAIN BOARD, COMPLETE (EA)
111 A-1065-499-A MAIN BOARD, COMPLETE (TW, KR)
111 A-1067-908-A MAIN BOARD, COMPLETE (250: MX)
111 A-4752-751-A MAIN BOARD, COMPLETE (150: US, CND)
112 1-828-411-11 WIRE (FLAT TYPE) (29 CORE)
113 3-077-331-01 +BV3 (3-CR)
114 1-828-371-11 WIRE (FLAT TYPE) (21 CORE)
115 1-828-349-11 WIRE (FLAT TYPE) (17 CORE)
116 1-829-212-11 WIRE (FLAT TYPE) (15 CORE)
117 1-962-869-11 WIRE (FLAT TYPE) (5 CORE)
118 1-828-954-11 WIRE (FLAT TYPE) (9 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

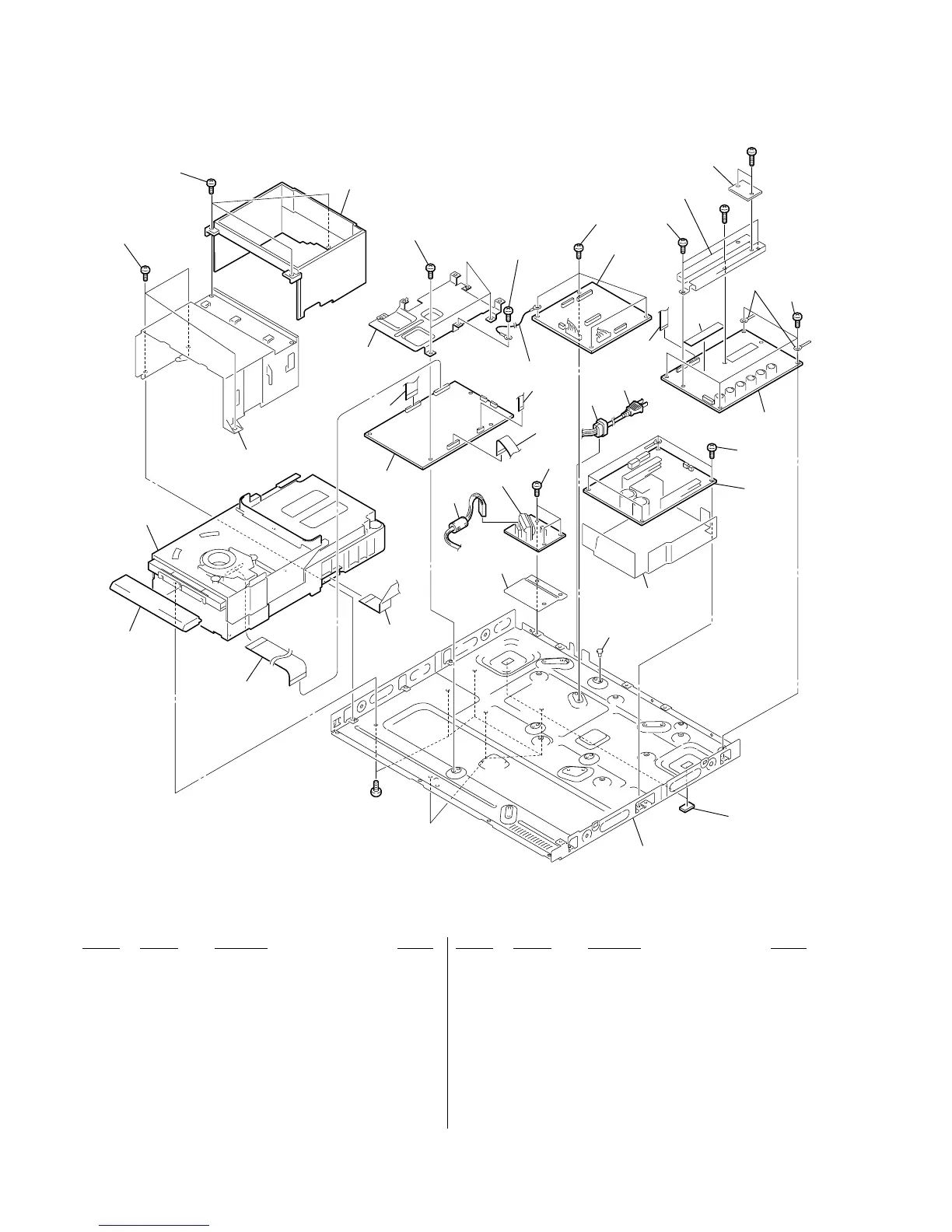

3-4. CHASSIS SECTION-2
101
112
103
113
114
113
113
107
106
113
113
113
113
113
113
104
105
115
116
117
108
109
110
111
118
CD mechanism section
not supplied
#1
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
#4
#4
not
supplied
not
supplied
not
supplied
102
