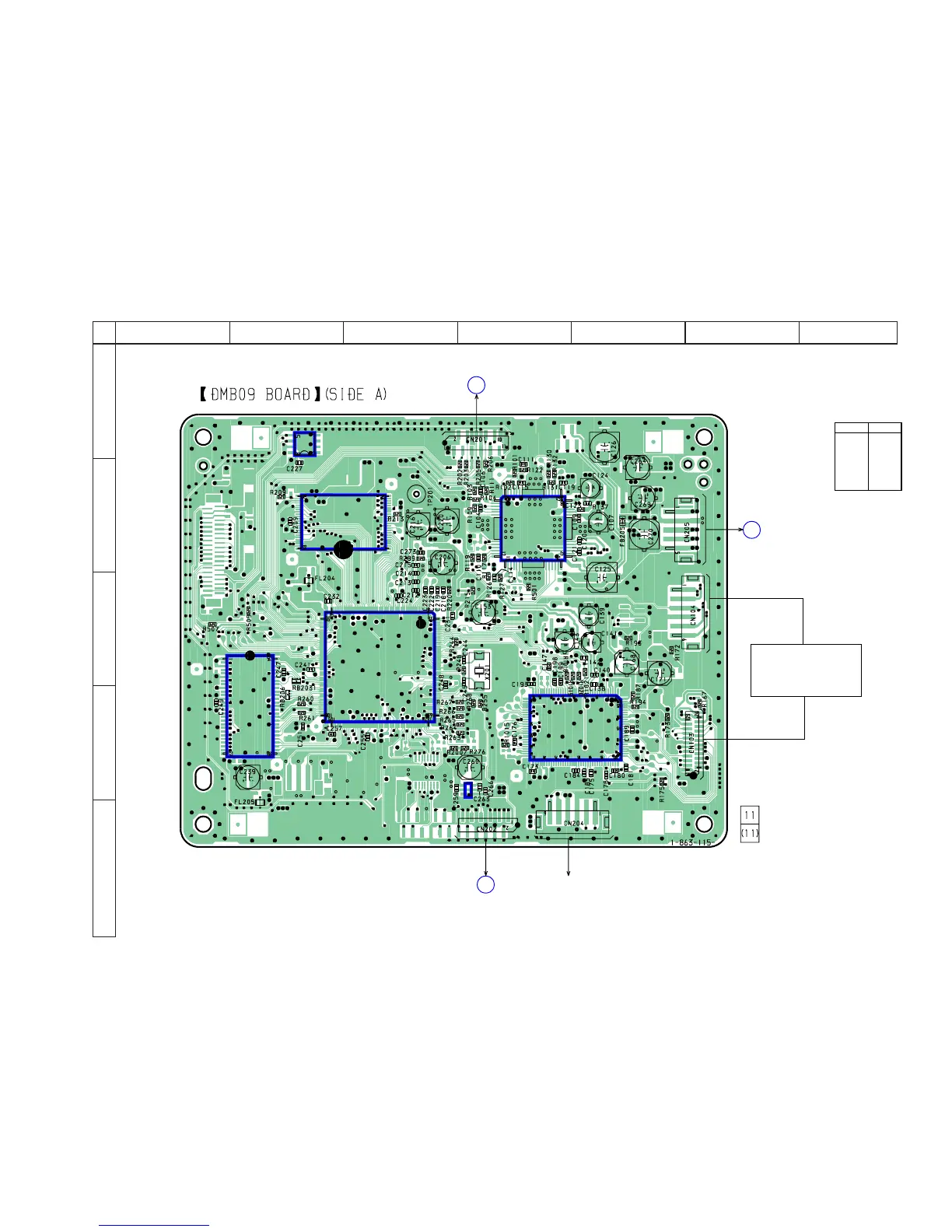

5-4. PRINTED WIRING BOARD – DMB09 SECTION (SIDE A) –
• See page 21 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
IC101 B-4
IC102 D-5
IC201 C-3
IC204 B-3
IC205 A-2
IC206 D-2
IC208 E-4
IC205
IC204
IC101
IC102
IC201
IC208
IC206
10
11
3
4
5
1
(Page 42)
G
IO
BOARD
CN202
(Page 35)
A
MAIN
BOARD
CN505
(Page 36)
D
MAIN
BOARD
CN506
(FOR CHECK)
OPTICAL PICK-UP
BLOCK
(KHM-310AAB)
12
A
B
C
D
E
