Sony HCD-BC150 - Chassis Section-1

61
HCD-BC150/BC250
101 4-252-116-01 LID, DVD
102 4-244-969-01 FOOT
103 1-500-386-21 FILTER, CLAMP (FERRITE CORE)
104 4-217-350-11 STOPPER, CORD
0 105 1-783-531-72 CORD, POWER (US, CND)
0 105 1-696-169-51 CORD, POWER (E41)
0 105 1-696-847-22 CORD, POWER (AUS)
0 105 1-751-520-21 CORD, POWER (EA)
0 105 1-775-789-91 CORD, POWER (MX)
0 105 1-827-597-41 CORD, POWER (TW)
0 105 1-769-079-32 CORD, POWER (KR)
106 2-021-013-01 REAR COVER, MD
107 4-254-947-11 SHEET (AMP), RADIATION
0 108 1-468-836-12 REGULATOR, SWITCHING (US, CND, MX, TW)
0 108 1-468-837-12 REGULATOR, SWITCHING (EA, E41, KR, AUS)
109 A-1052-860-A AMP BOARD, COMPLETE (150: MX)
109 A-1053-123-A AMP BOARD, COMPLETE (TW, EA, AUS)
109 A-1054-633-A AMP BOARD, COMPLETE (E41)
109 A-1062-134-A AMP BOARD, COMPLETE (250: US, CND)
109 A-1067-906-A AMP BOARD, COMPLETE (250: MX)
109 A-4752-734-A AMP BOARD, COMPLETE (150: US, CND, KR)
110 A-1052-868-A DMB07 BOARD, COMPLETE (150: MX)
110 A-1053-135-A DMB07 BOARD, COMPLETE (TW, EA, KR, AUS)
– Continued on page 62 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

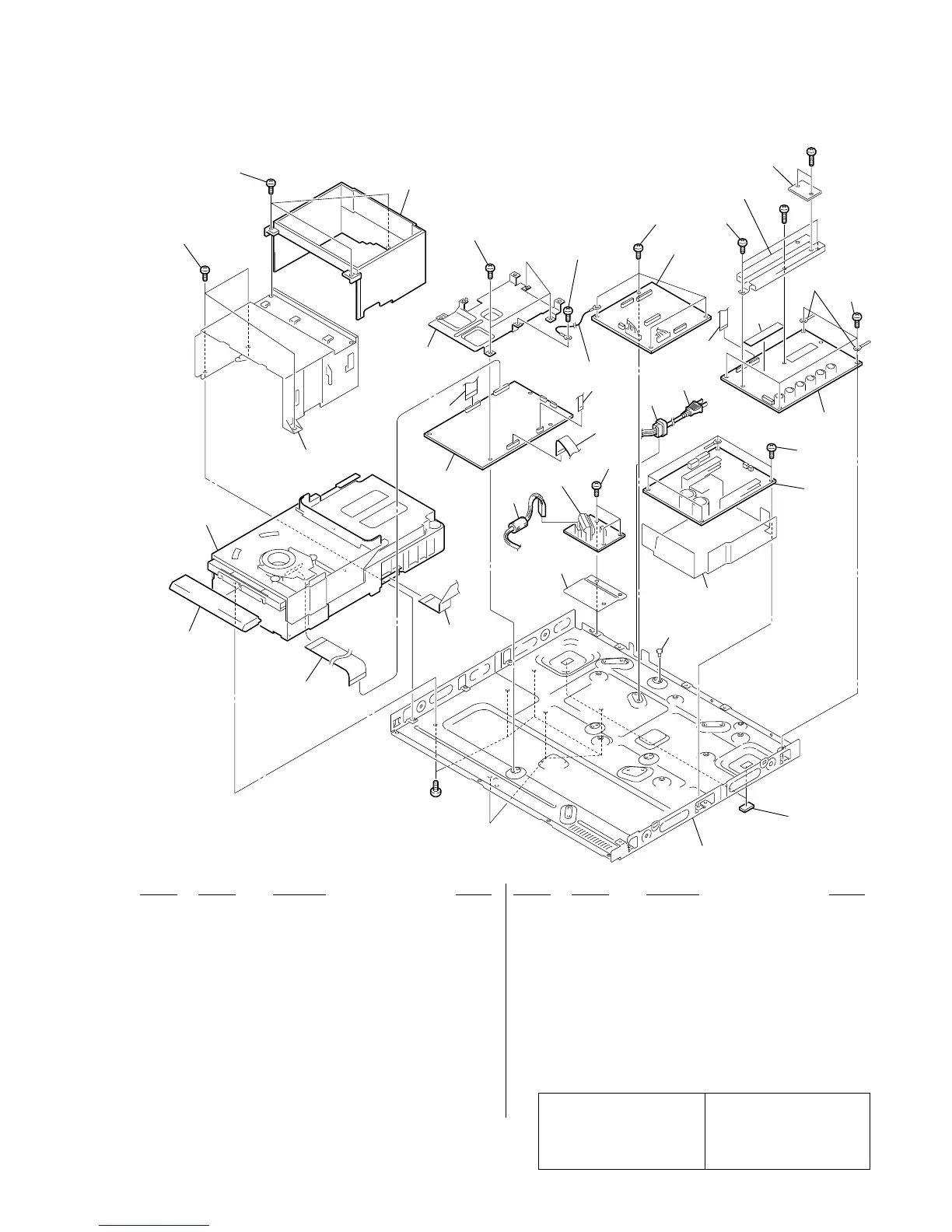

3-3. CHASSIS SECTION-1
101
112
103
113
114
113
113
107
106
113
113
113
113
113
113
104
105
115
116
117
108
109
110
111
118
CD mechanism section
not supplied
#1
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
#4
#4
not
supplied
not
supplied
not
supplied
102
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
