Sony HCD-BC150 - Printed Wiring Board - AMP Section (Side B)

3030
HCD-BC150/BC250
HCD-BC150/BC250
(page 35)
CN312
BOARD
SPK
M
(page 35)
CN311
BOARD
SPK
L
(page 35)
CN309
BOARD
SPK
N
(page 22)
CN509
BOARD
MAIN
J
(page 11)
CN106
BOARD
DMB07
C
(page 25)
CN804
BOARD
H/P
K
(page 35)
CN7
REGULATOR
SWITCHING
(page 35)
CN4
REGULATOR
SWITCHING
O
P
FAN
4
E
E
1
1
2
EEE E
12
E
82
1171
5
1
2
16
9
EXCEPT 250:MXEXCEPT 250:MX
12
A
B
C
D
E
F
345678

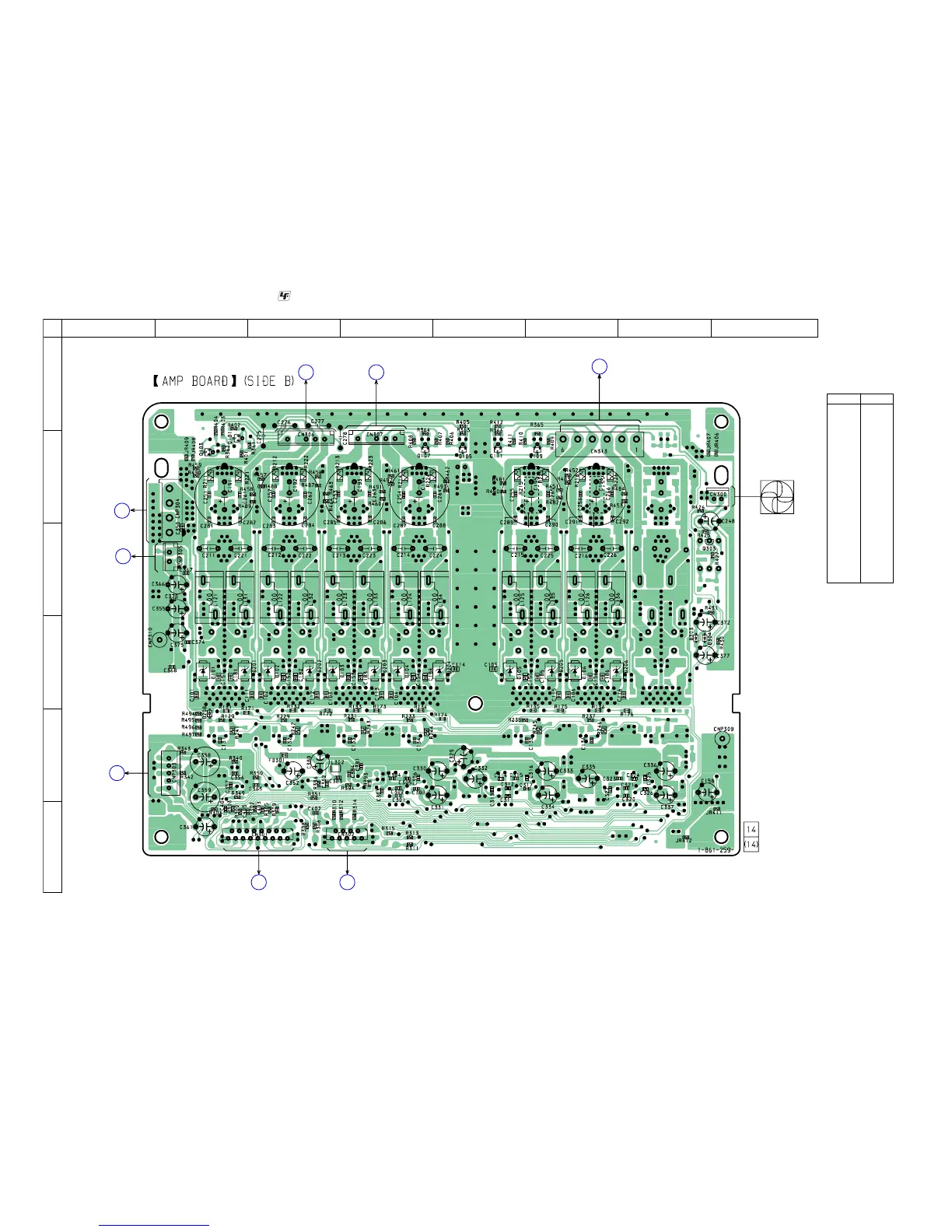

2-24. PRINTED WIRING BOARD — AMP SECTION (SIDE B) —
:Uses unleaded solder.
Ver 1.3
• See page 36 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D101 D-2
D102 D-3
D103 D-3
D104 D-4
D105 D-5
D106 D-6
D201 D-2
D202 D-3
D203 D-4
D204 D-5
D205 D-6
D206 D-7
D208 E-2
D303 D-7
D304 D-8
Q101 B-2
Q103 B-2
Q105 B-5
Q107 B-4
Q109 B-6
Q111 B-5
Q303 C-7
