Sony HCD-BC150 - 5-17. PRINTED WIRING BOARD - IO SECTION -

4242
HCD-BC150/BC250
HCD-BC150/BC250

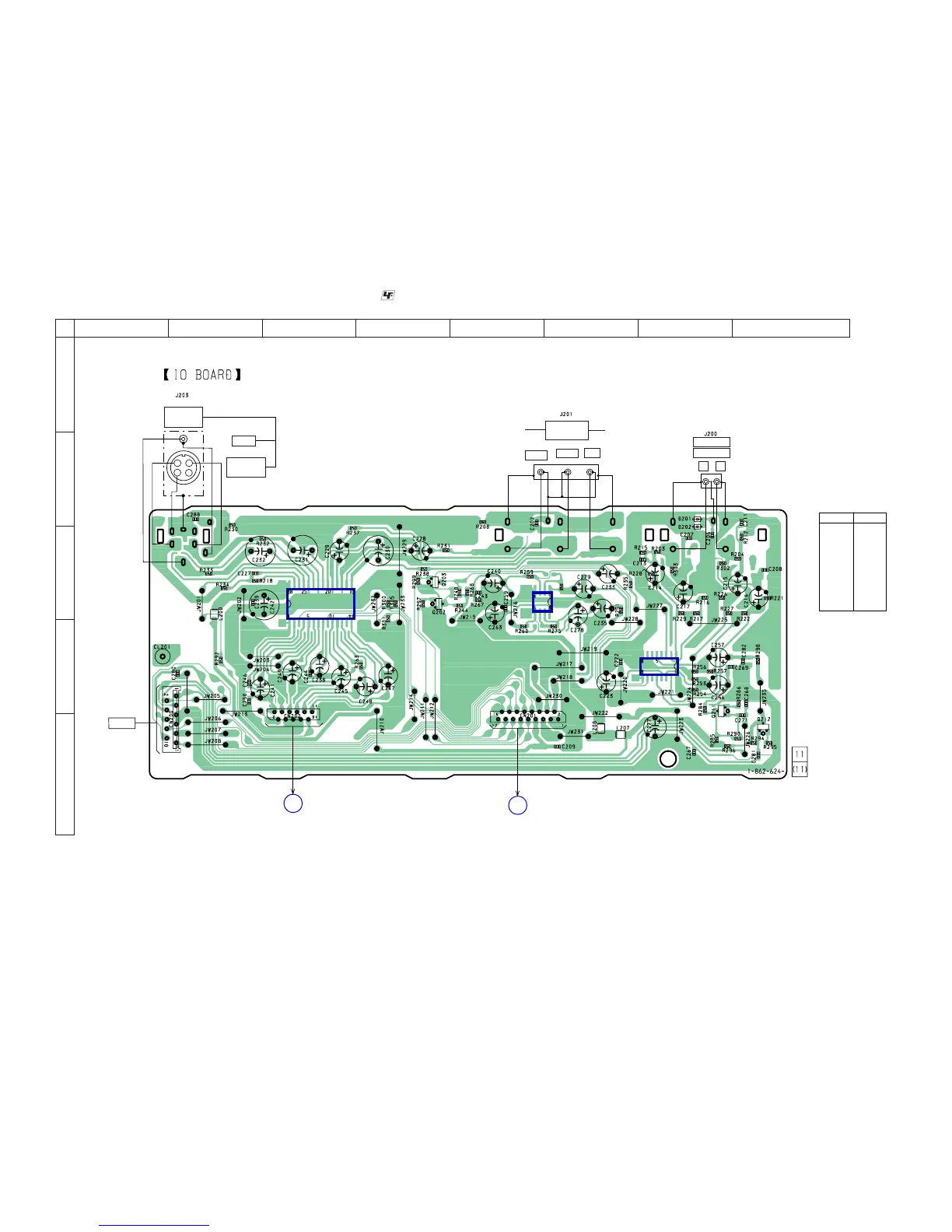

5-17. PRINTED WIRING BOARD – IO SECTION –
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D201 B-7
D202 B-7
IC200 D-7
IC201 C-3
IC203 C-5
Q202 C-4
Q203 C-4
Q211 D-7
Q212 E-8
IC201
IC203
IC200
TUNER
(page 29)
CN202
BOARD
DMB09
G
(page 36)
CN507
BOARD
MAIN
H
3
1
2
4
VIDEO
S VIDEO
(DVD ONLY)
MONITOR
OUT
P B /C B
P R /C R
Y
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO/SAT
L R
R277
E
E
E
E
12
A
B
C
D
E
345678
