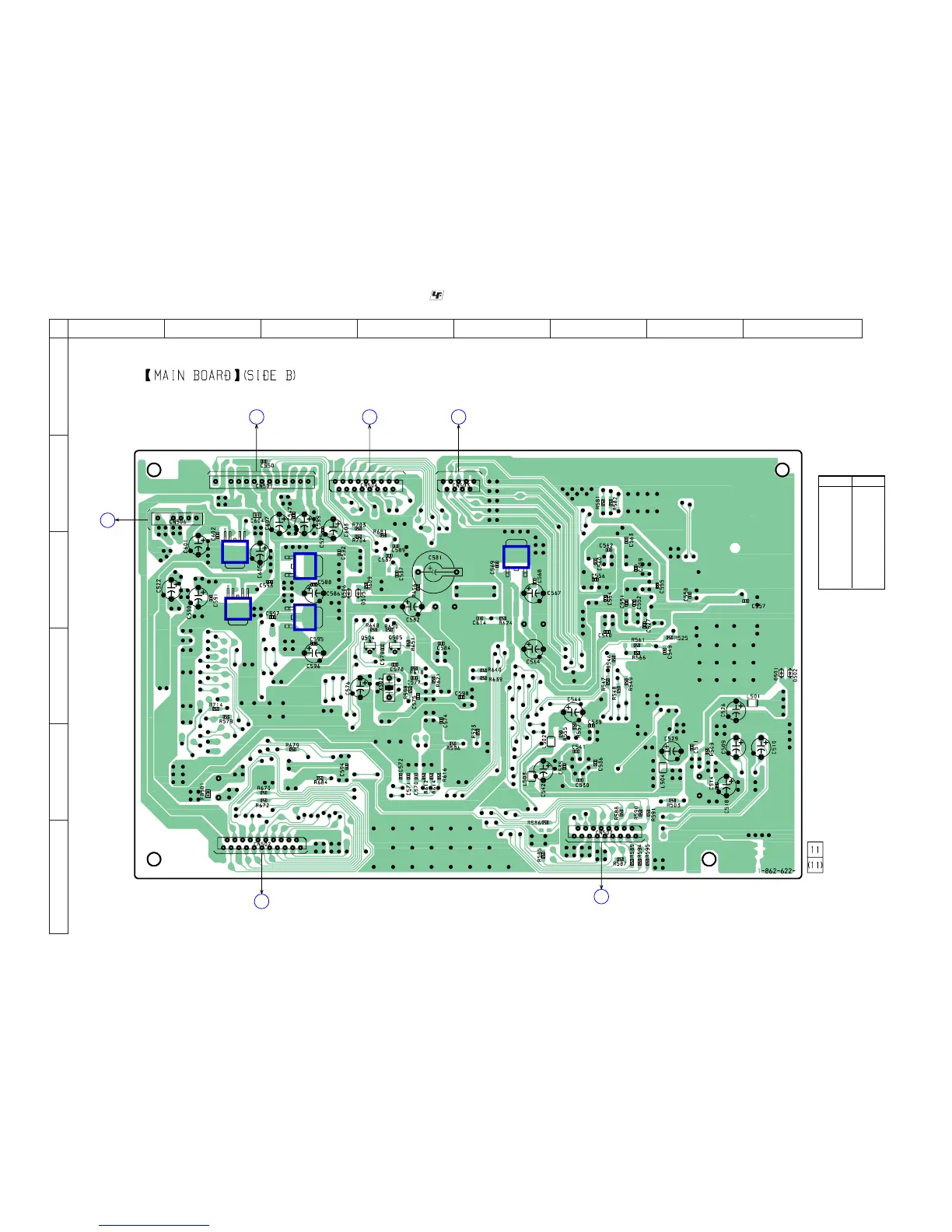

5-11. PRINTED WIRING BOARD – MAIN SECTION (SIDE B) –
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
IC516
IC508
IC513
IC512
IC515
(Page 50) (Page 45)
Q
SWITCHING
REGULATOR
CN8
(Page 29)
D
DMB09
BOARD
CN205
J
AMP
BOARD
CN301
(Page 45)
C
AMP
BOARD
CN302
(Page 42)
H
IO
BOARD
CN201
1
2
12
1
2
17
16
1
2
9
8
1
1
1
1
1
1
5
5
5
3
3
3
EE
16
17
(Page 27)
B
TRANSLATION
BOARD
CN701
20
2
1
21
2
1
12
A
B
C
D
E
F
345678
• Semiconductor
Location
Ref. No. Location
D501 D-8
D502 D-8
D505 C-4
D506 C-3
IC508 C-5
IC512 C-3
IC513 C-2
IC515 C-3
IC516 C-2
Q504 D-4
Q505 D-4
