Sony HCD-BC150 - MODEL IDENTIFICATION; Rear Panel

4
HCD-BC150/BC250
SECTION 1
GENERAL
For more information, refer to the pages indicated in parentheses.

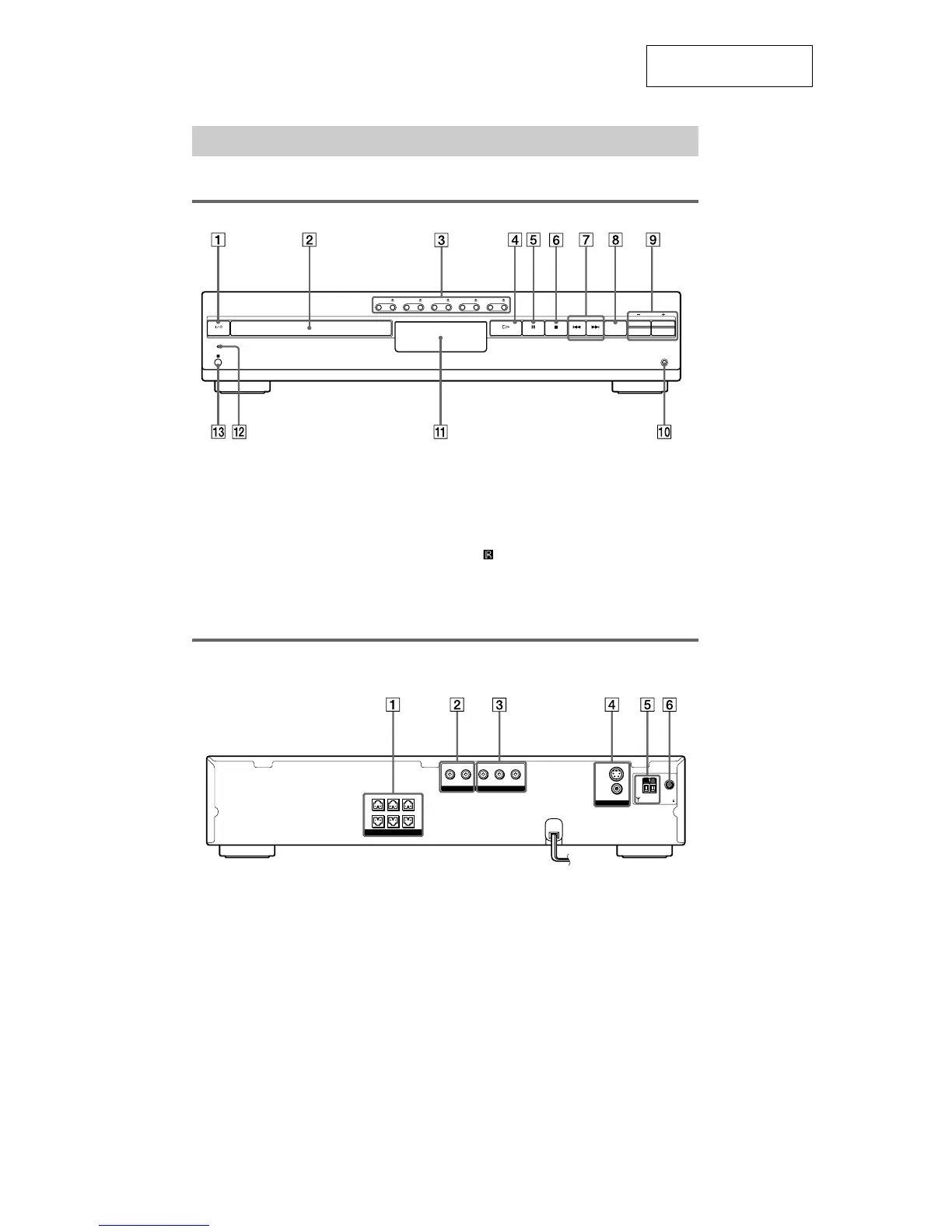

Front Panel
A "/1 (power) (28)
B Disc tray (28)
C DISC 1-5 A (eject) indicators (28, 62)
D H (play) (28, 62)
E X (pause) (30)
F x (stop) (30)
G ./>, PRESET -/+
(30, 60, 62)
H FUNCTION (28, 57, 60)
I VOLUME +/- (28)
J PHONES jack (28)
K Front panel display (75)
L STANDBY indicator (28)
M (remote sensor) (13)
Index to Parts and Controls
DISC1 DISC2 DISC3 DISC4 DISC5
STANDBY
PHONES
VOLUMEPRESET
FUNCTION
Rear Panel
A SPEAKER jacks (14)
B VIDEO/SAT AUDIO IN jacks (20, 58)
C COMPONENT VIDEO OUT jacks (20)
D MONITOR OUT (VIDEO / S VIDEO) jacks
(20)
E AM terminal (19)
F FM 75Ω COAXIAL jack (19)
Y
P B /C B P R /C R
S
VIDEO
VIDEO
(
DVD O NLY
)
AUDIO IN
FRONT R
SURR R SURR LWOOFER
CENTER FRONT L
L
R
MONITOR OUT
COMPONENT VIDEO OUT
VIDEO/SAT
SPEAKER
COAXIAL
AM FM
75
This section is extracted
from instruction manual.
