Sony HCD-BC150 - CD Mechanism Section-3 (CDM81 A-DVBU27)

65
HCD-BC150/BC250

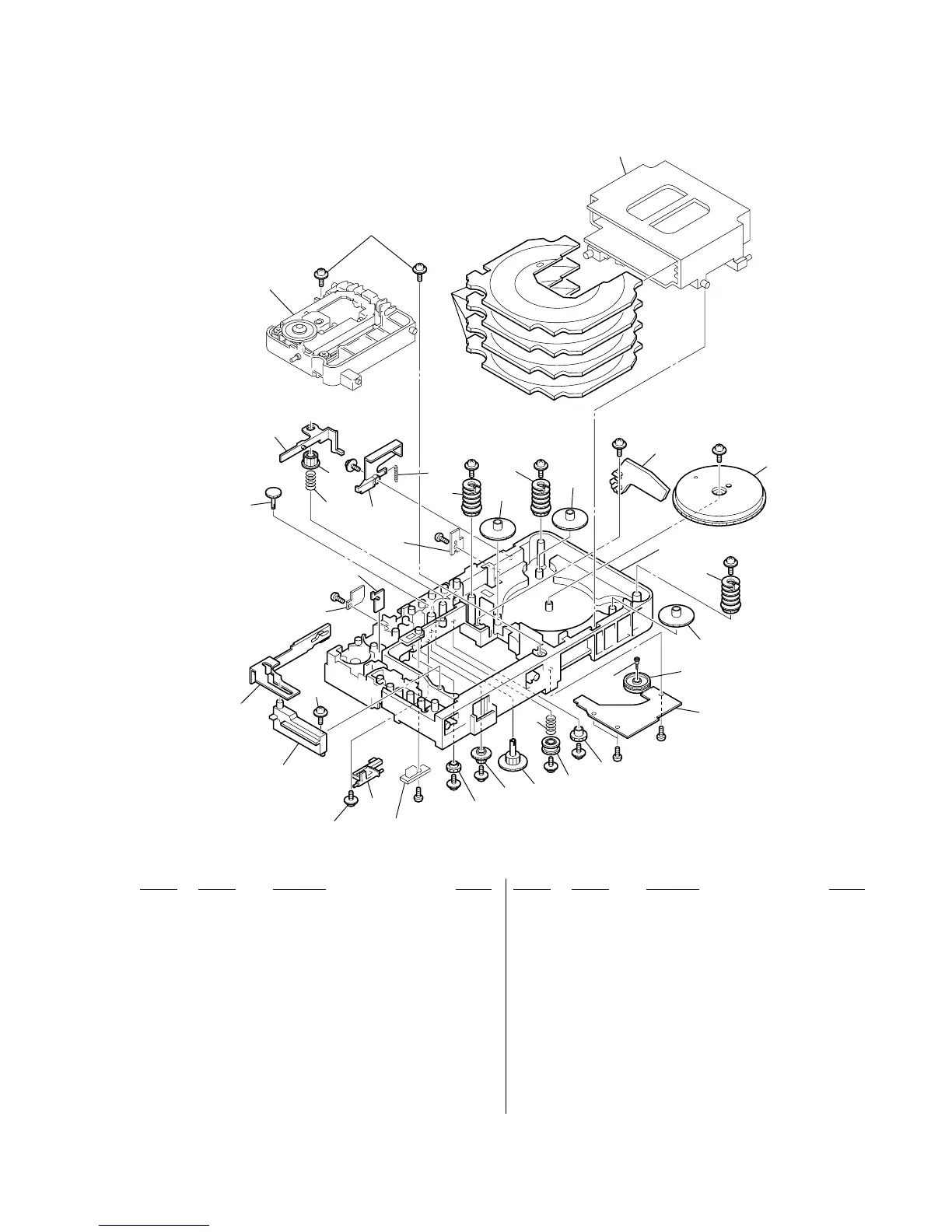

3-7. CD MECHANISM SECTION-3
(CDM81A-DVBU27)
not supplied
not supplied
not supplied
251
269
268
251
258
257
270
273
252
272
256
251
261
253
262
262
263
263
259
264
265
262
263
S781
266
267
255
271
260
254
272
252
#3
#4
#4
#4
#4
#3
#3
#3
#3
#4
#4
#4
#4
#4
#4
not supplied
DVBU27
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
252 4-251-873-01 SPRING (MODE), COMPRESSION
253 4-251-874-02 SPRING (SW), TENSION
254 4-251-844-01 GEAR (SS2)
255 4-251-835-01 GEAR (STOCKER 1)
256 4-251-833-01 LEVER (SUB TRAY)
257 4-251-843-01 LEVER (RELEASE)
258 4-251-831-02 LEVER (MODE)
259 4-251-862-01 SHUTTER (TRAY)
260 4-251-845-01 GEAR (SS3)
261 4-251-829-02 TRAY (SUB)
262 4-251-827-01 CAM (STOCKER)
263 4-251-836-01 GEAR (STOCKER 2)
264 4-251-838-01 GEAR (STOCKER 3)
265 4-251-823-01 CHASSIS (CDM81)
266 A-4750-232-A TRANSLATION BOARD, COMPLETE
267 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING
268 4-251-825-01 CAM (BU)
269 4-251-832-01 LEVER (STOCKER)
270 4-251-861-01 LEVER (SW)
271 4-251-839-01 GEAR (STOCKER 4)
272 4-251-840-01 GEAR (SUB TRAY)
273 4-251-847-01 GEAR (SS4)
S781 1-478-551-11 ENCODER, ROTARY (ST U/D ENCODER)
#5 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#6 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
