Sony HCD-BC150 - 2-7. SPK BOARD, IO BOARD, DC FAN; 2-8. MAIN BOARD

10
HCD-BC150/BC250

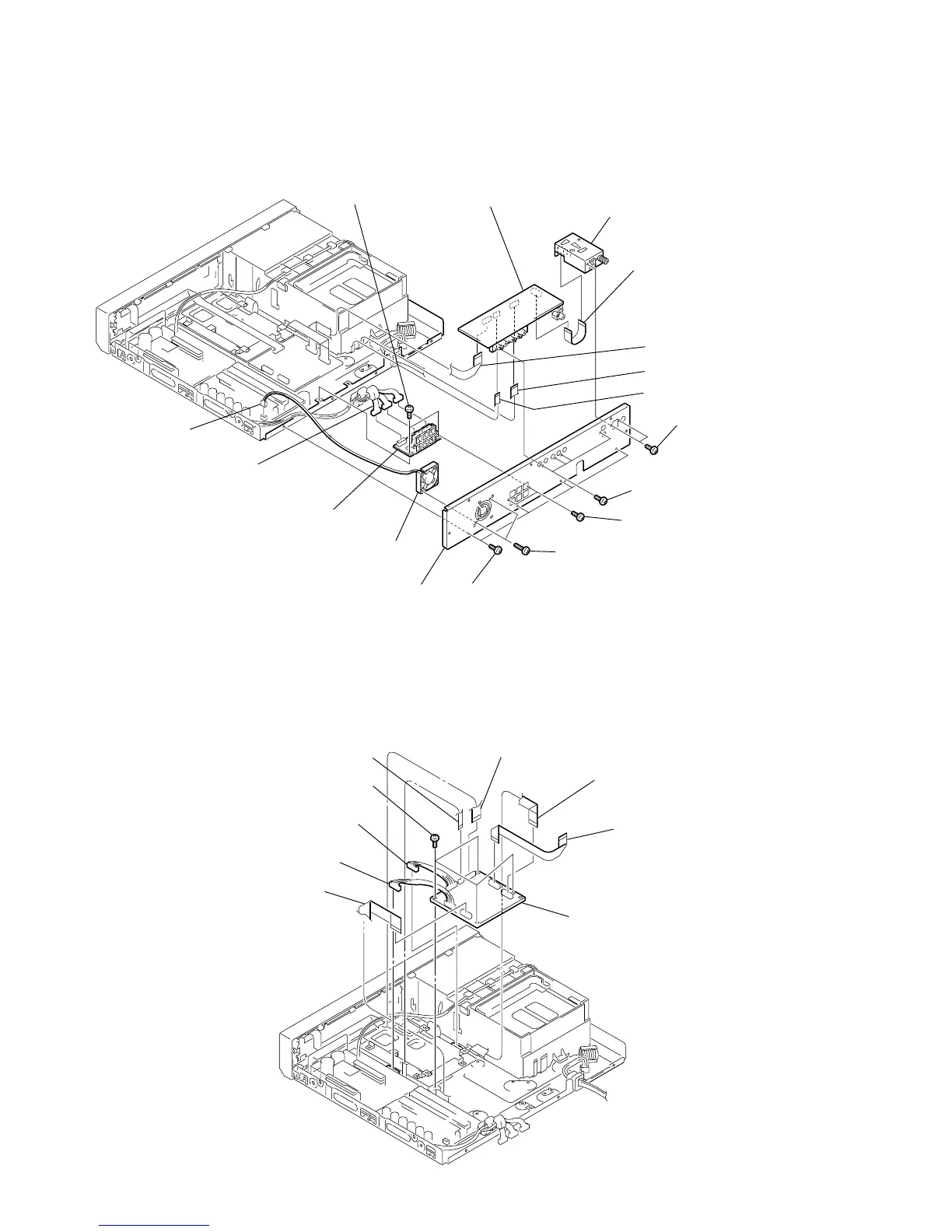

2-7. SPK BOARD, IO BOARD, DC FAN
2-8. MAIN BOARD
3 two screws (+BV 3)
qd w ire (flat type)
11p(CN200)
5 w ire (flat type) 17p(CN201)
7 w ire (flat type) 15p(CN202)
6 w ire (flat type) 5p(CN203)
qh tuner
back panel
9 DC fan
qf IO board
qa SPK board
qg two tapping screws
(DIA.2.6
× 8)
qs four screws (BVTP 3 × 8)
4 four screws (BVTP 3 × 8)
0 two screws (BVTP 3 × 8)
8 two screws (BVTT 4 × 8)
1 connector
(CN300)
2 three connectors
(CN309, 311, 312)
8 four screws (+BV 3)
1 w ire (flat type)
17p(CN509)
2 w ire (flat type)
5p(CN505)
5 w ire (flat type)
17p(CN501)
4 w ire (flat type)
21p(CN513)
3 w ire (flat type)
15p(CN503)
9 MAIN board
7 connector
(CN8)
6 connector
(CN102)
