Sony HCD-C770 - Panel and Mechanism Deck Disassembly

10
HCD-C770/C990
Note: Follow the disassembly procedure in the numerical order given.

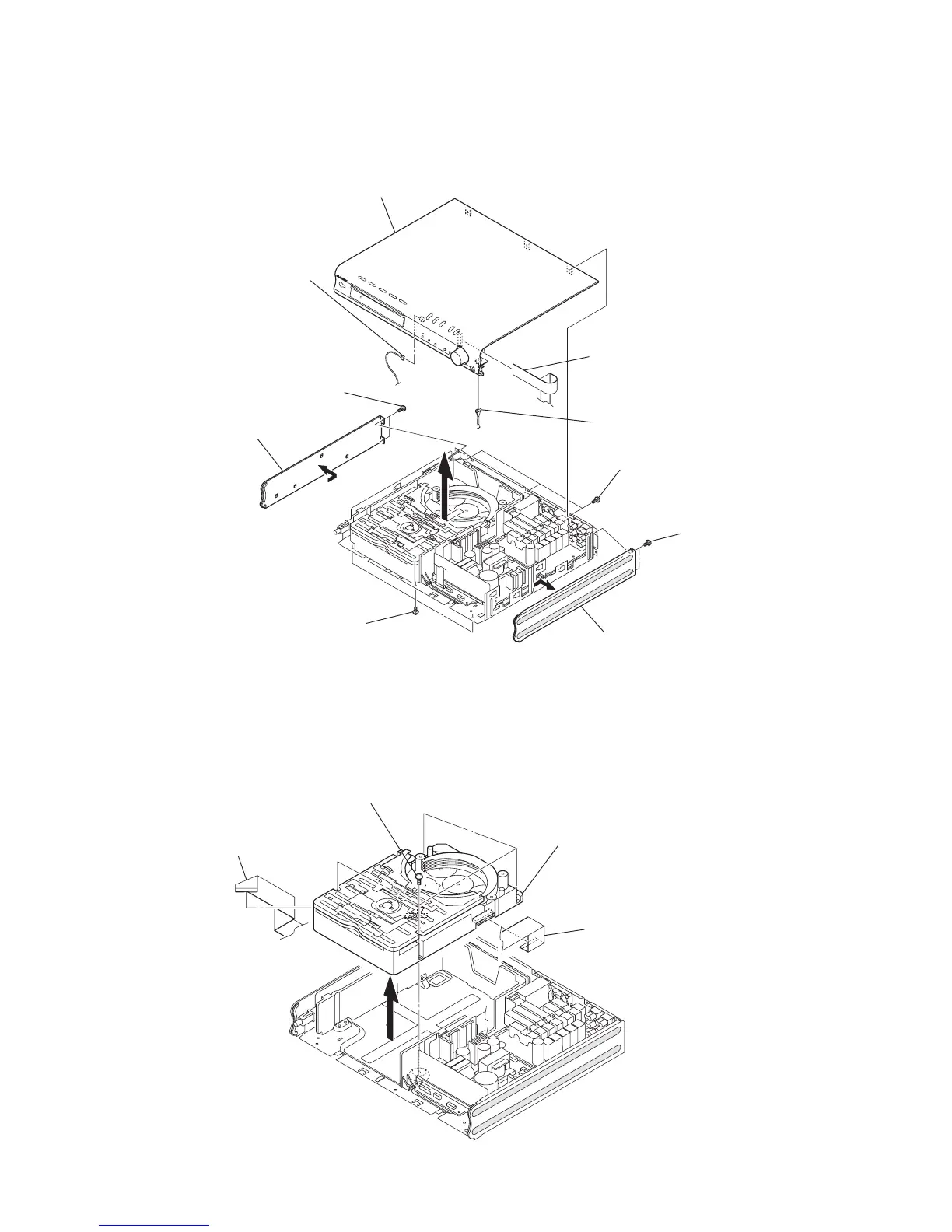

3-2. FRONT PANEL (AL) SECTION, SIDE PANEL (L)/(R)
3-3. MECHANISM DECK (CDM69-DVBU16)
qa side panel (R)
0 two screws
(BVTP3 × 8)
1 three screws
(BVTP3 × 8)
8 two screws
(BVTP3 × 8)
9 side panel (L)
5 connector (CN900)
3
6 connector
(CN807)
7 front panel (AL)
section
4 wire (flat type) (CN814)
2 three screws
(BVTP3 × 8)
3 wire (flat type)
(CN701)
5 mechanism deck
(CDM69-DVBU16)
1 four screws
(BVTP3
× 8)
4 wire (flat type)
(CN002)
2
