Sony HCD-C770 - RELAY Board; Motor (Stocker) Assy (Stocker) (M781)

15
HCD-C770/C990

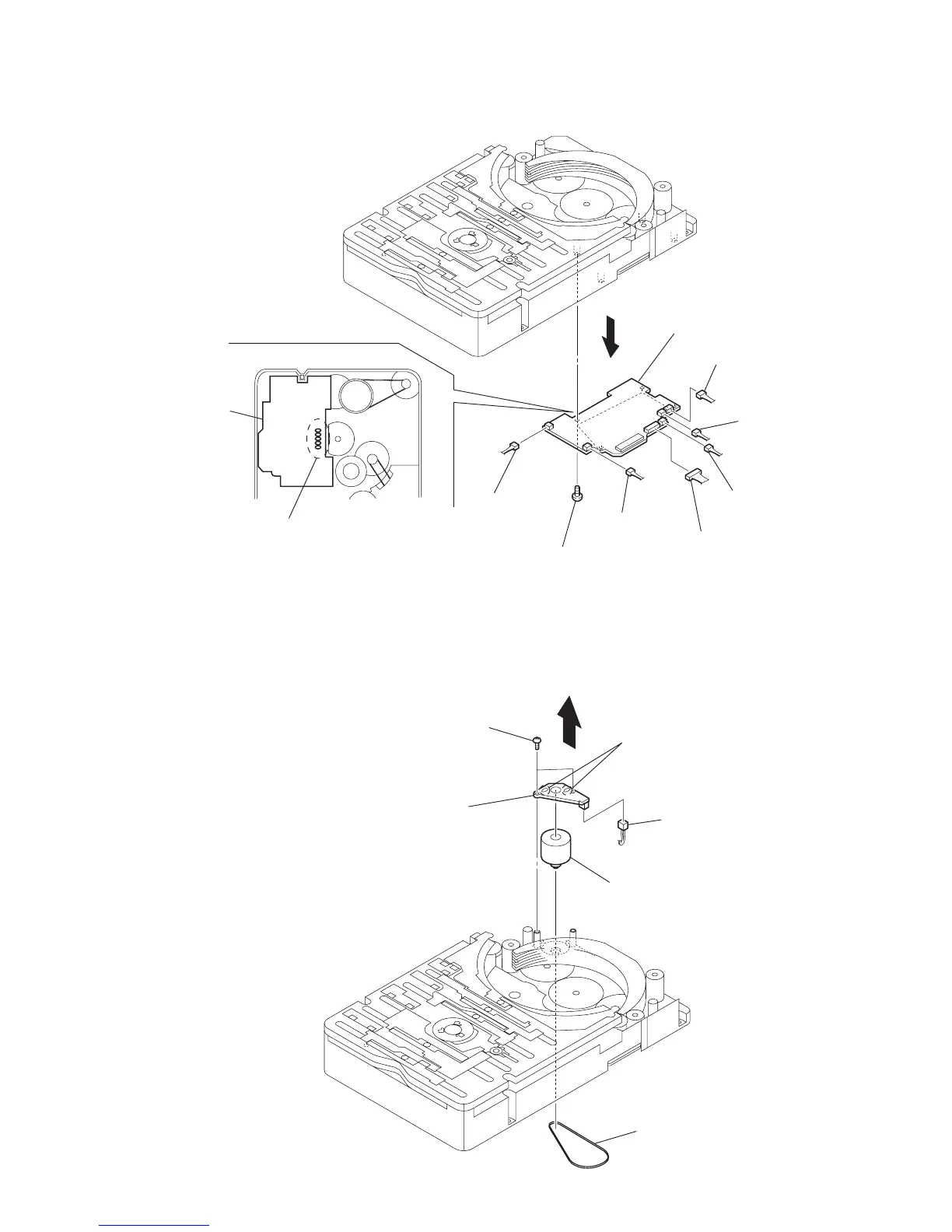

3-12. RELAY BOARD
3-13. MOTOR (STOCKER) ASSY (STOCKER) (M781)
1 Remove five solders.
– bottom view –
relay board
4 connector
(CN703)
5 connector
(CN702)
2 four screws
(BVTP2.6
× 8)
6 connector
(CN710)
7 connector
(CN706)
8 connecto
r
(CN707)
9 connector
(CN708)
0 relay board
3
6 stocker motor board
3 two screws
(BVTP2.6
× 8)
2 Remove two solders
5 connector
(CN761)
4
7 motor (stocker) assy
(stocker) (M781)
1 belt (stocker)
