Sony HCD-C770 - POWER SW Board; AUDIO Board, VIDEO Board

11
HCD-C770/C990

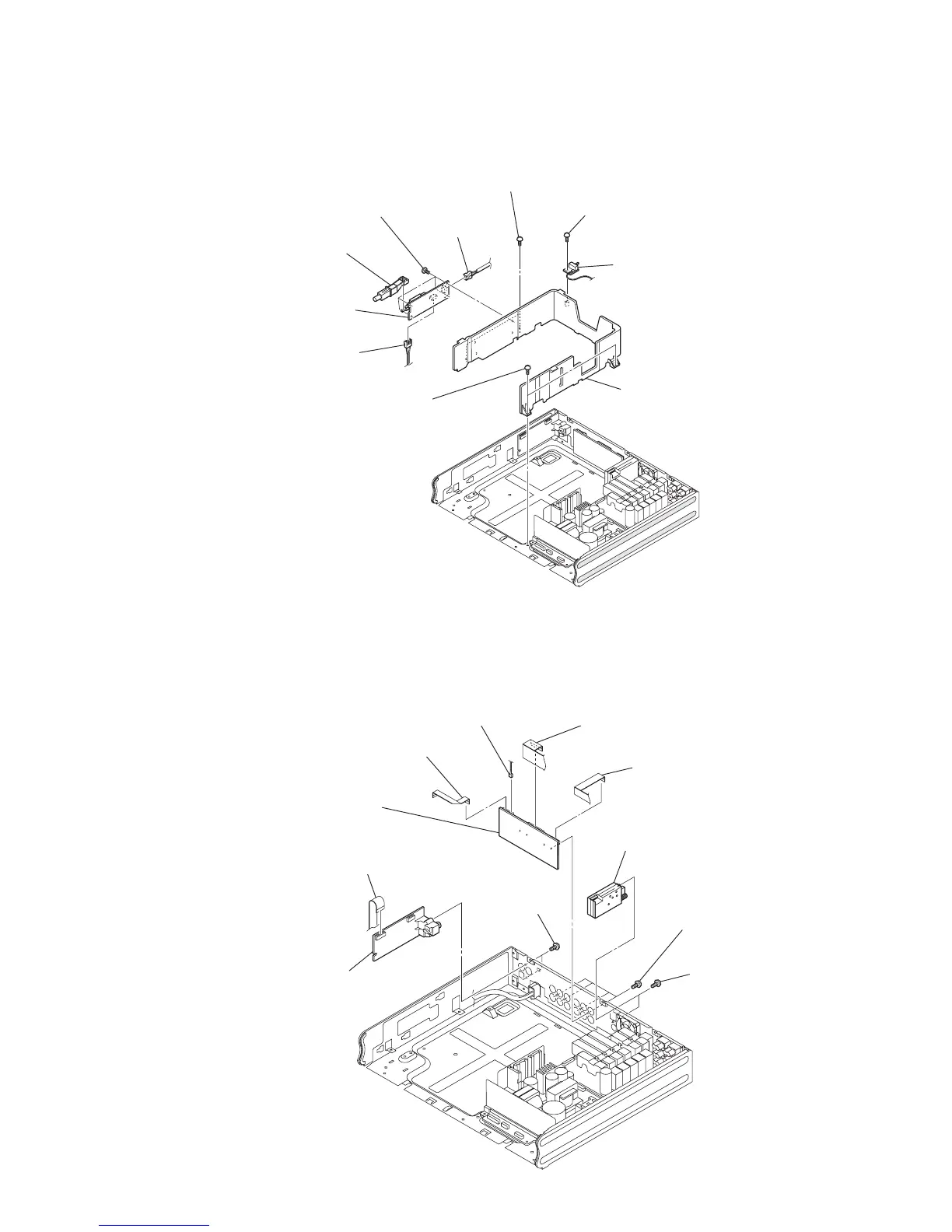

3-4. POWER SW BOARD
3-5. AUDIO BOARD, VIDEO BOARD
8 MD cover sub ass
y
2 SEL board
1 screw
(BVTP3 × 8)
4 two screws
(BVTP3 × 8)
7 four screws
(BTP3 × 6)
3 two screws
(BVTP3 × 8)
9 power button
section
0 power SW board
6 connector
(CN901)
5 connector
(CN900)
1 two screws
(BVTP2.6 × 8)
7 four screws
(BVTP3 × 8)
0 two screws
(BVTP3 × 8)
2 FM/AM tuner pack (DTP-001
)
3 wire (flat type)
(CN201)
4 wire (flat type)
(CN202)
6 connector
(CN205)
5 wire (flat type)
(CN208)
8 audio board
9 wire (flat type)
(CN203)
qa video board
