HCD-C770/C990

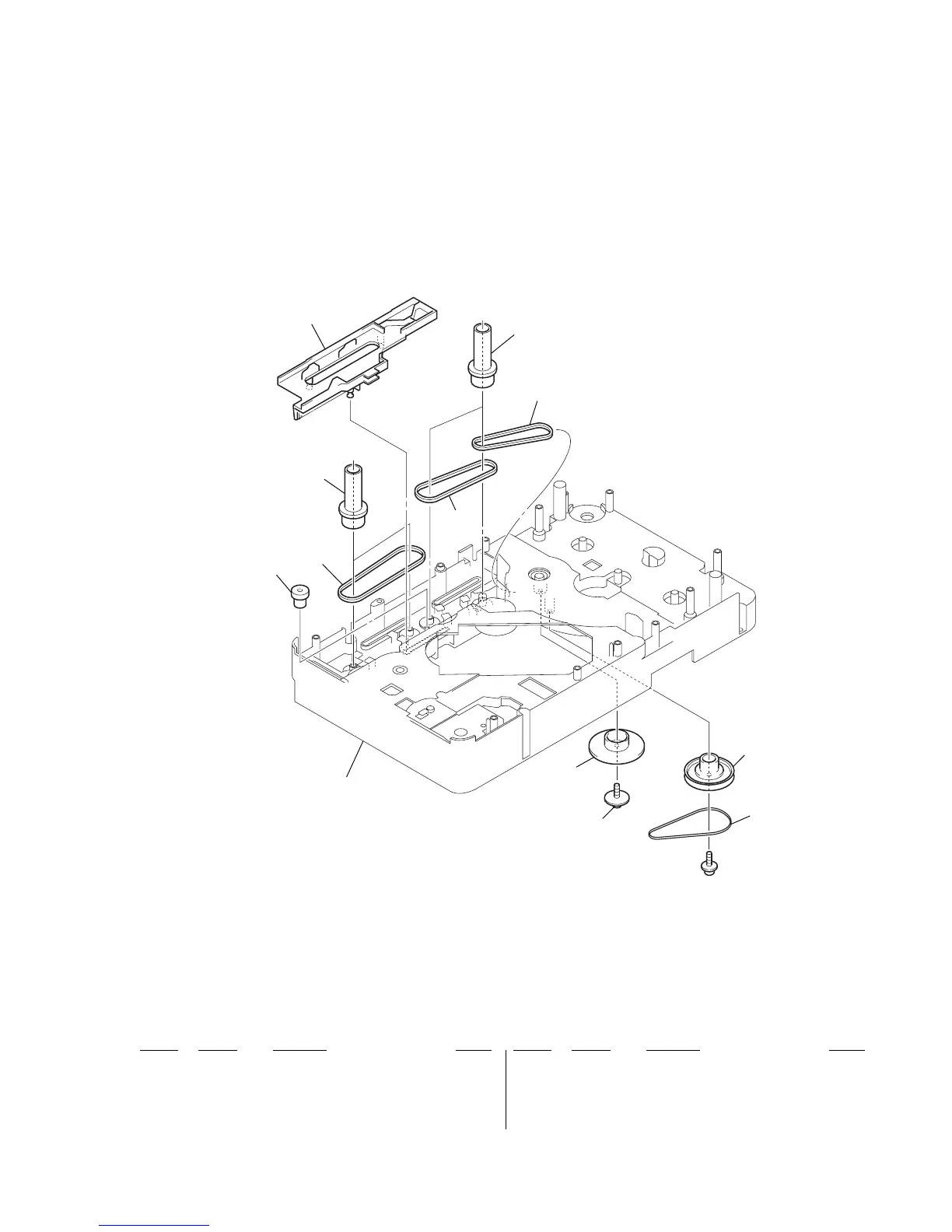

8-11. MECHANISM DECK SECTION-5
(CDM69-DVBU16)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-240-020-01 GEAR (TIMING)
502 4-239-708-01 BELT (FRONT), TIMING
503 4-239-697-01 GEAR (CENTER)
504 X-4954-629-1 SLIDER (MODE CAM) ASSY
505 4-239-706-01 BELT (REAR), TIMING
506 4-239-699-01 PULLEY
507 4-239-681-01 BELT (ROLLER)
508 4-227-899-01 SCREW (DIA. 12), FROATING
509 4-239-686-01 GEAR (ROLLER DECELERATION)
#4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
501
502
503
503
504
505
506
507
509
508
505
#4
mechanism deck
section-6
