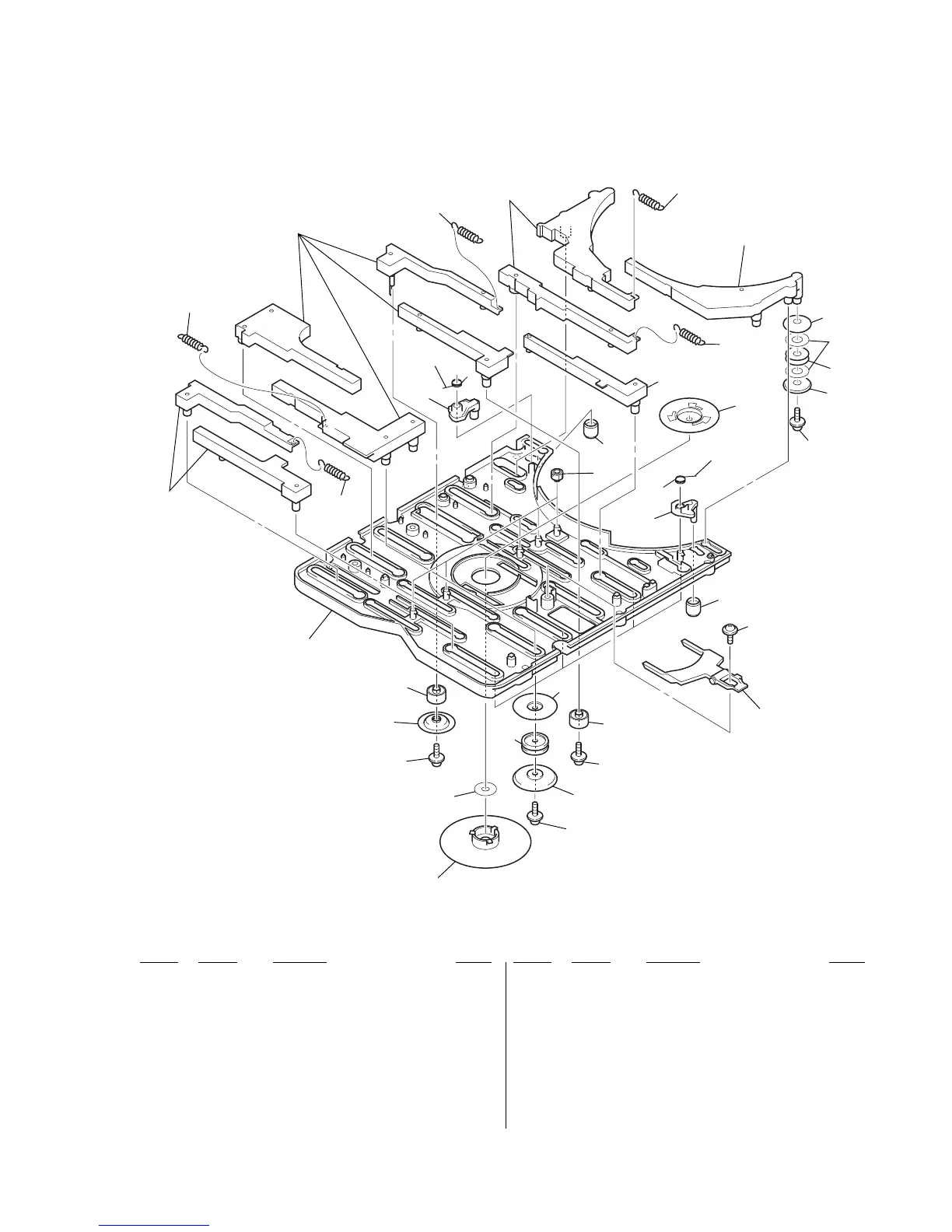

8-9. MECHANISM DECK SECTION-3
(CDM69-DVBU16)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 4-240-038-01 PULLEY (A), CHUCKING
402 4-992-069-01 SCREW (+PTPWH) (M2) (DIA. 7)
403 4-239-648-01 PARASOL (ROLLER)
404 4-239-646-01 ROLLER (ROLLER)
405 4-239-641-01 SPRING (1.2), TENSION
406 4-239-642-01 SPRING (3), TENSION COIL
407 4-239-679-01 SPRING (5), TENSION COIL
408 4-240-037-01 PULLEY (B), CHUCKING
409 4-239-649-01 PARASOL (STOCKER)
410 4-241-209-01 SHEET, ADHESIVE
411 4-239-651-01 ROLLER (STOCKER), RUBBER
412 4-239-640-01 PINION (SLIDER)
413 4-240-040-01 SPRING (DISC STOPPER), TORSION
414 4-240-039-01 LEVER (DISC STOPPER)
415 4-239-702-01 ROLLER (DISC STOPPER)
416 4-985-672-01 SCREW (+PTPWHM 2.6), FLOATING
417 4-239-650-01 LEVER (LIFTER)
418 4-239-647-01 PARASOL (MAIN)
419 4-239-645-01 ROLLER, RUBBER
420 4-241-599-01 LEVER (SUPPORT)
401
419
402
403
404
405
405
406
404
402
418
418
402
416
417
415
415
414
420
413
413
412
405
407
402
409
409
410
411
408
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
